Part 1.

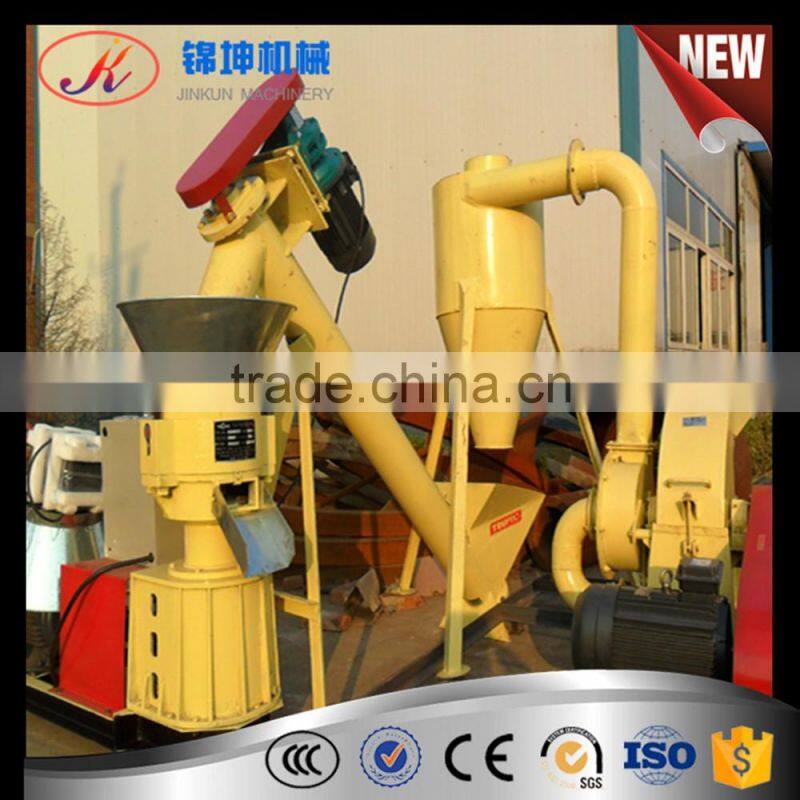

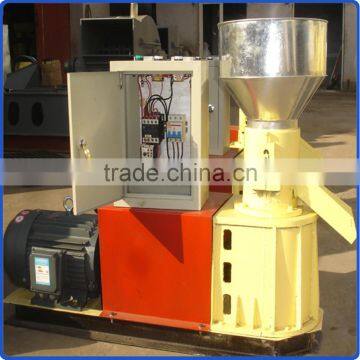

37kw and 500-600kg/h Houme use flat die pellet mill.
Product Features:
♦ The "taper shape" rollers make their ends rounding liner speed consistent with flat die, so it avoids dislocated friction which maybe created between rollers and die. In this way, it can reduce friction and save much enengy consumption, lengthen die and rollers lifetime.
♦ Adjust the pressure through central screw, auxiliary pressurized by three axle ends; the die gap is varied, which is availble for different materials, ensure the pressure efficiency.
♦ Large rollers with wide groove, bear the more pressure and abrasion.
♦ The rollers are more evenly distributed, stable operation; increase the pressure areas and improve the production efficienly.
♦ The machines the high pressure filter lubrication system.
Technical Parameters:
| Type | Output capacity | Power | Diameter of pellet | Diameter of pellet | Weight(T) | Size(mm) |
| JKFD250 | 160-200kg/h | 15KW | 6-8mm | 250mm | 400kg | 1250*600*850 |
| JKFD300 | 200-300kg/h | 22KW | 6-8mm | 300mm | 550kg | 1300*600*900 |
| JKFD350 | 300-500kg/h | 30KW | 6-8mm | 350mm | 800kg | 1500*850*1400 |
| JKFD400 | 500-600kg/h | 37KW | 6-8mm | 400mm | 950kg | 1550*850*1650 |
| JKFD450 | 600-700kg/h | 45KW | 6-8mm | 450mm | 1080kg | 1600*850*1650 |
| JKFD550 | 700-900kg/h | 55KW | 6-8mm | 550mm | 1600kg | 1700*900*1750 |
Part 2:
Product Details
1.Larger roollers with wide groove, bear the more pressure and abrasion.
2.The machine abopt the high pressure filter lubrication system.
Part 3:
Raw Materies
Part 4:
Factory Workshop and Production
Part 5:
Client's Factory Visit
Part 6:
Certificate
Packaing Details : Export Standard
Delivery Details : Shipped in 15 days after payment
♦ Service is avaliable to each customer. The after-sale service provided engineers available to service machinery overseas.
♦ One-year warranty is provied.(The detailed reference will be written into the final contact.)
♦ Professional staff for installation and training if need.
♦ Spare parts are supplying on time or doing some inventory if promising certain sales volume.
♦ Faster delivery, we will support our sole sgent to do the stock if good sales, then more convenient helpful.
Zouping, in Shandong province.Shandong Jinkun Machinery Manufuncturing CO, Ltdis establish in the year 1999, with registered capital of 10000000RMB and total assets 135000000RMB. It occupies a area of about 122000 square meters and gross building area of 17000 square meters. It has more than 220employees and over 80 of then are mechanical creation design and engineeing technical personnels. The transportation is very convenuient . To the south of the company is Jinan-Qingdao High- Way: to the East of the company is 205 Nationnal Highway.
We have been certifide by CE ISO9001 and ISO4001. Also we have theself-supported import and export right and the right of independence Customs. Our product is tested to be qualified by National quality and Technology Supervision Derpartrmnt The entry-exit inspection and quarantine department. Our products sell well in more than 20 provinces in China. At the Same time, our products enjoy good reputation in over 10 countried dan areas in Africa, South America, Eastern Europe ,Southeast Asia.
1. Are you a factory or a trading company?
JINKUN MACHINE CO,LTD .is a professionals Manufacturer .
2. Can I be your agent ?
Yes, Welcom to deep cooperation. We have big promotion of JINKUN brand in the market now. For the details please contact with our overseas manager.
3. Why choose us ?
More than 600 workers.
With the occupying area of 85000 square meters.
More than 10 years experiences in the industry of construction machine and agricultural machine
Competitive price and high quality .
One hour reaches Qingdao port .
All the inquiries will be replied within 12 hours .
4. Q: How can I trust your quality?
A : Our company is certificated by CE, ISO9001, SGS of our machines. We ensure our preciseness by CNC, and ensure the machines run smoothly by test-run operation. The quality is the soul of Jinkun.
5. Q: What is your superiority comparing with other suppliers?
A : First, we guarantee superior quality of our machines, no matter in steel materials, production process, processing technic, or test-run operation. In this field, few suppliers conduct test-run operation before shipment.
Second, we provide all-around service including pre-sales service, on-purchase service and after-sales service. We provide full set drawings, instructive and guidance.
Third, we insist on saving clients' cost by customizing most suitable design for each customer. We choose necessary machines in suitable position with great quality.
6. Q: Does your company provide Engineers Abroad Service?
A : Yes, our engineers will go to your place for guide assembly of a turn-key project.
7. Q: How to train our staff about operation and maintenance?
A : We will provide every detailed technical instructives, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
8.Q:What price terms you offer?
A: We can offer FOB, CIF, EXW and other price terms based on your reqest.
9. Q:What payment terms you take?
A: We are T/T,D/P, D/A, L/C and Western Unit.
10. Q:How do you control the quality?
A: We insist "Quality is priority?and always pay great attention to quality control from the very beginning to the end. You can also be reassured by our one-year warranty and CE&ISO9001 Certificates.
If you are in interested in our products, please feel free to contact us anytime.
