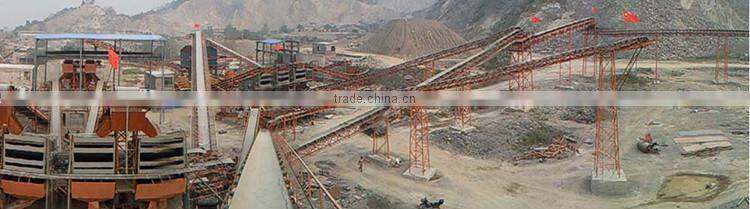

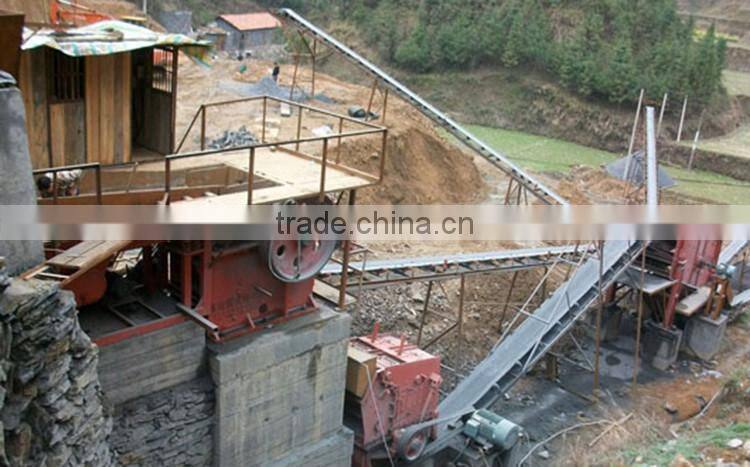

Environmental protection sand production line
Applications
It is used in stone material factory, mine, metallurgy, building materials, highway, railway, water conservancy, chemical and other industries, and it can crushing limestone, basalt stone ,granite, pebbles to the size we need.
Structure
Sand / sand production line system (mechanism of sand production line, quartz sand production line) mainly consists of three parts that is feeding system, crushing system and screening, conveying system.
Maximum feed (mm) | Capacity (t/h) | Major equipments specifications | |||||
Feeding equipment | Coarse crushing equipment | Fine crushing equipment | Screening equipment | Conveyor | Power (kw) | ||
340 | 30 | GZD2511(3kw) | PE400×600(30kw) | PF1007(45kw) | 3YZ1236(15kw) | 60-90(20kw) | 120 |
340 | 50 | GZD3117(10kw) | PE400×600(30kw) | PF1007(45kw) | 3YZ1545(22kw) | 100-130(30kw) | 140 |
420 | 80 | GZD3617(10kw) | PE500×750(55kw) | PF1010(75kw) | 3YZ1548(22kw) | 130-160(30kw) | 200 |
480 | 100 | GZD4321(13kw) | PE600×900(75kw) | PF1210(130kw) | 3YZ1548(22kw) | 140-180(40kw) | 280 |
560 | 150 | GZD4321(13kw) | PE750×1060(90kw) | PF1210(130kw) | 3YZ1845(22kw) | 200-240(50kw) | 300 |
630 | 200 | GZD4321(13kw) | PE900×1060(110kw) | PFB1212(140kw) | 3YZ2050(30kw) | 200(40kw) | 350 |
630 | 250 | GZD5027(17kw) | PE900×1060(110kw) | PFB1214(180kw) | 3YZ2050(30kw) | 200(40kw) | 400 |
630 | 300 | GZD5027(17kw) | PE900×1200(110kw) | PFB1214(180kw) | 3YZ2160(30kw) | 250(50kw) | 450 |
700 | 350 | GZD5027(17kw) | PE1000×1200(132kw) | PFB1315(250kw) | 3YZ2160(30kw) | 250(50kw) | 500 |
700 | 450 | GZD6223(28kw) | PE1000×1200(132kw) | PFB1214/2(300kw) | 3YZ2145/2(60kw) | 350(60kw) | 600 |
Advantages:
- Low cost, high degree of automation, good fit between the devices greatly improve production efficiency and product quality, as long as the device without exception, produced materials are in line with national regulations and the requirements of manufacturers
- Needs small area, cross layout can make full use of space, low labor intensity and it needs someone in charge of the switch machine and observe the functioning of the production line
Environmental protection, and take a series of measures to avoid the dust generated when using the dry process, so that the production line will not pollute the environment
