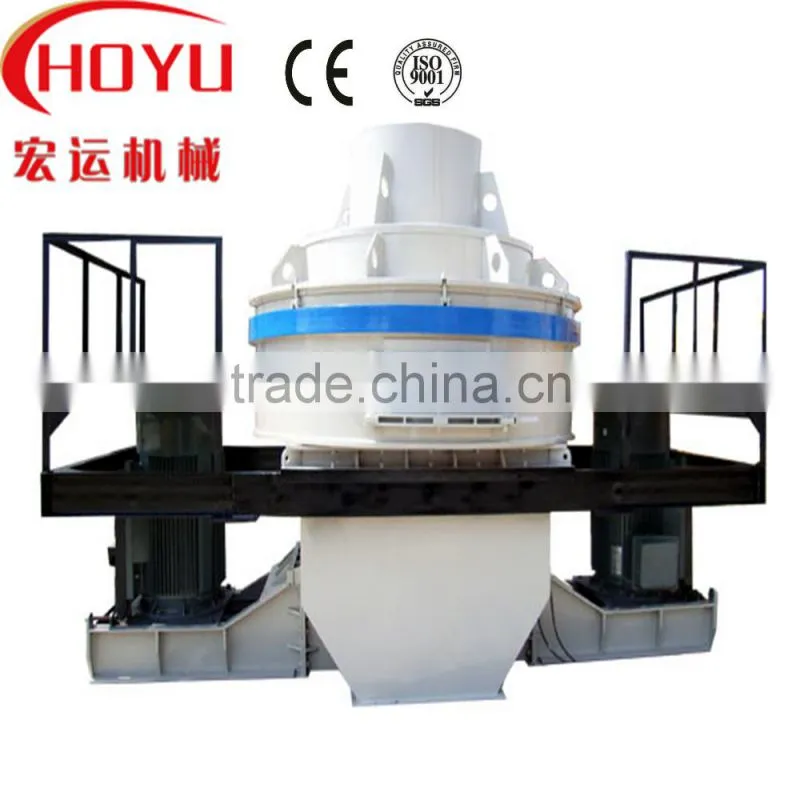

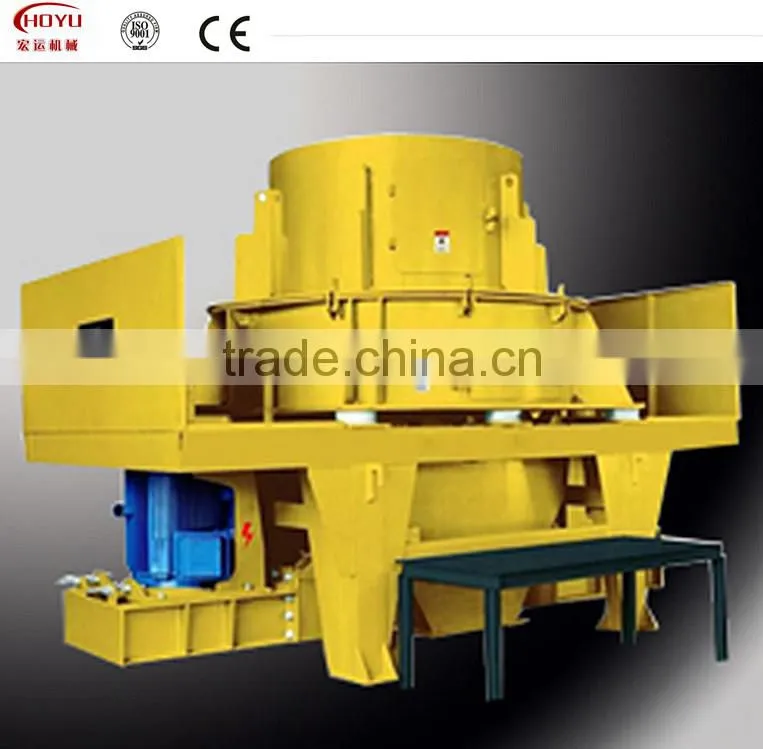

The overview of sand making machine:
Sand making machine is mainly composed of pedestal, holder, vortex crushing cavity, impeller, distributor, main shaft and other parts.
Sand making machine using the centrifugal force and impact force which are brought by itselves’ high speed running.
Sand making machine can achieve crushing effect to satisfy the sand making industry’s demand of materials’ granularity and size.
Sand making machine can also be used to crush harder ore material and often be used in mineral processing, ore milling, metallurgy, chemical engineering, power industry, water resource industry and other different industries.
Advantages:
- Widely application. In addition to crushing gravel materials with remarkable effect, it also has good effect on harder ore material.
- High comprehensive utilization value. It can be applied in the different industries.
- Vortex crushing chamber and the impeller can form self circulatory system of internal airflow to provide a natural ventilation for using the device.
- Using the distributor can improve the performance of the equipment, because it can make the conveying of material more continuous, timing and quantitative.
- According to the overall usage of rock sand making machine, it can be deployed dry oil pump to provide oil for bearing parts regularly.
- With double motor drive, the gearing can run smoothly.
- With the wear-resisting plate of special material in the crushing cavity of equipment, it can improve usability and wear resistance of the core crushing area.
- Holder has detachability. Users can disassemble or assemble it based on the different workplaces
Specification:
Model |
VSI7611 |
VSI8518 |
VSI9526 |
VSI1140 |
|
Capacity |
Cascade and Center Feeding |
120-180 |
200-260 |
300-380 |
450-520 |
Center Feeding |
60-90 |
100-130 |
150-190 |
225-260 |
|
Feeding Size(mm) |
Soft Material |
35 |
40 |
45 |
50 |
Hard Material |
30 |
35 |
40 |
45 |
|
Rotation Speed |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
|
Power of the Double Motors |
110 |
180 |
264 |
400 |
|
Overall Dimension |
3700×2150×2100 |
4140×2280×2425 |
4560×2447×2778 |
5000×2700×3300 |
|
Weight |
11.8 |
14.5 |
17.8 |
25.6 |
|
Power Supply |
380V,50Hz |
||||
Vibrating Sensor |
Inspection scope:0.1-20mm/s can be adjusted continuously |
||||
Lubrication hydraulic station |
Power of Double Oil Pump |
2×0.25Kw |
|||
Overall dimension |
820×520×1270 |
||||
Power of Oil-box Heater |
2Kw
|
||||
