Used sand making machine for sale is mainly composed of pedestal, holder, vortex crushing cavity, impeller, distributor, main shaft and other parts.

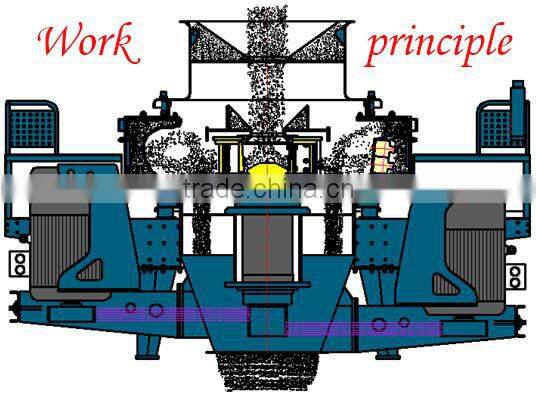

Used sand making machine for sale using the centrifugal force and impact force which are brought by itselves’ high speed running.
Used sand making machine for sale can achieve crushing effect to satisfy the sand making industry’s demand of materials’ granularity and size.
Used sand making machine for sale can also be used to crush harder ore material and often be used in mineral processing, ore milling, metallurgy, chemical engineering, power industry, water resource industry and other different industries.
Advantages
1 Wide application. In addition to crushing gravel materials with remarkable effect, it also has good effect on harder ore material
2 With high comprehensive using value, it can be used in different industries
3 Vortex crushing cavity and the impeller can form the self circulatory system of the internal airflow, which provides natural ventilation for the use of equipment.
4 The using of the distributor makes the delivery of material more continuous, timing, quantitative, and it can improve the usability of equipment
5 The configuration of dry oil pump based on the overall usage of used sand making machine for sale can pour oil to the bearing regularly
6 With double motor drive, the gearing can run smoothly and powerfully
7 With the wear-resisting plate of special material in the crushing cavity of equipment, it can improve the usability and wear resistance of the core crushing area
8 Holder has detachability. Users can disassemble or assemble it based on the different workplaces
Model |
VSI7611 |
VSI8518 |
VSI9526 |
VSI1140 |
|
Capacity |
Cascade and Center Feeding |
120-180 |
200-260 |
300-380 |
450-520 |
Center Feeding |
60-90 |
100-130 |
150-190 |
225-260 |
|
Feeding Size(mm) |
Soft Material |
35 |
40 |
45 |
50 |
Hard Material |
30 |
35 |
40 |
45 |
|
Rotation Speed |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
|
Power of the Double Motors |
110 |
180 |
264 |
400 |
|
Overall Dimension |
3700×2150×2100 |
4140×2280×2425 |
4560×2447×2778 |
5000×2700×3300 |
|
Weight |
11.8 |
14.5 |
17.8 |
25.6 |
|
Power Supply |
380V,50Hz |
||||
Vibrating Sensor |
Inspection scope:0.1-20mm/s can be adjusted continuously |
||||
Lubrication hydraulic station |
Power of Double Oil Pump |
2×0.25Kw |
|||
Overall dimension |
820×520×1270 |
||||
Power of Oil-box Heater |
2Kw
|
||||
