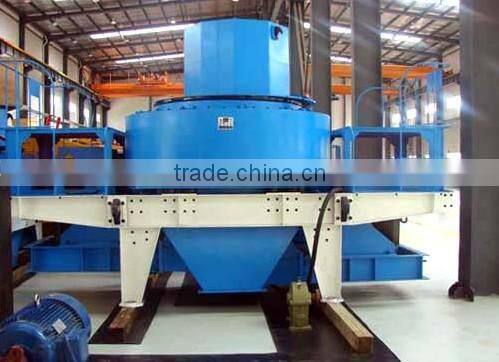

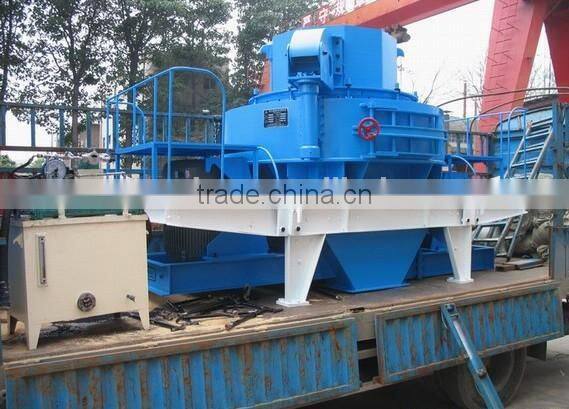

- Quartz stone sand making machine is the advanced crushing equipment developed by Hongyun Factory based on the present situation about sand making equipments’ application in our country. It is mainly composed of pedestal, holder, vortex crushing cavity, impeller, distributor, main shaft and other parts. Quartz stone sand making machine is the indispensable fine device in the present sand production industry. Using the centrifugal force and impact force which are brought by itselves’ high speed running, it can achieve crushing effect to satisfy the sand making industry’s demand of materials’ granularity and size. Besides be used in sand making industry, it can also be used to crush harder ore material. It is an ideal crushing equipment which often be used in mineral processing, ore milling, metallurgy, chemical engineering, power industry, water resource industry and other different industries.
Advantages:
1 Wide application. In addition to crushing gravel materials with remarkable effect, it also has good effect on harder ore material
2 With high comprehensive using value, it can be used in different industries;
3 Vortex crushing cavity and the impeller can form the self circulatory system of the internal airflow, which provides natural ventilation for the use of equipment.
4 The using of the distributor makes the delivery of material more continuous, timing, quantitative, and it can improve the usability of equipment
5 The configuration of dry oil pump based on the overall usage of quartz stone sand making machine can pour oil to the bearing regularly.
6 With double motor drive, the gearing can run smoothly and powerfully.
7 With the wear-resisting plate of special material in the crushing cavity of equipment, it can improve the usability and wear resistance of the core crushing area.
8 Holder has detachability. Users can disassemble or assemble it based on the different workplaces.
Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | |
Capacity | Cascade and Center Feeding | 120-180 | 200-260 | 300-380 | 450-520 |
Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
Feeding Size(mm) | Soft Material | 35 | 40 | 45 | 50 |
Hard Material | 30 | 35 | 40 | 45 | |
Rotation Speed | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
Power of the Double Motors | 110 | 180 | 264 | 400 | |
Overall Dimension | 3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | |
Weight | 11.8 | 14.5 | 17.8 | 25.6 | |
Power Supply | 380V,50Hz | ||||
Vibrating Sensor | Inspection scope:0.1-20mm/s can be adjusted continuously | ||||
Lubrication hydraulic station | Power of Double Oil Pump | 2×0.25Kw | |||
Overall dimension | 820×520×1270 | ||||
Power of Oil-box Heater | 2Kw
| ||||
