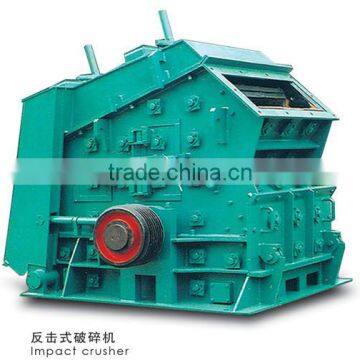

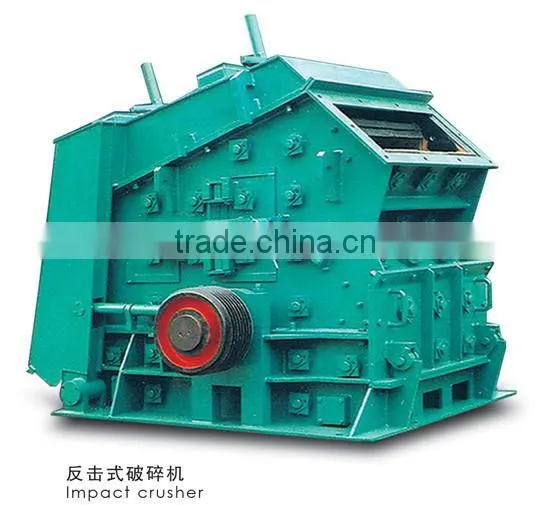

Long Life Xxnx Impact Crusher With Large Capacity of 80-160 T/h

Gongyi Xiaoyi Hongyun Machinery Factory Gold Verified Supplier
5Yrs
Long Life Xxnx Impact Crusher With Large Capacity of 80-160 T/h thumbnail-1
Long Life Xxnx Impact Crusher With Large Capacity of 80-160 T/h thumbnail-2
Long Life Xxnx Impact Crusher With Large Capacity of 80-160 T/h thumbnail-3
Long Life Xxnx Impact Crusher With Large Capacity of 80-160 T/h thumbnail-4
Long Life Xxnx Impact Crusher With Large Capacity of 80-160 T/h photo-1
Long Life Xxnx Impact Crusher With Large Capacity of 80-160 T/h photo-2
Long Life Xxnx Impact Crusher With Large Capacity of 80-160 T/h photo-3
Long Life Xxnx Impact Crusher With Large Capacity of 80-160 T/h photo-4
US$ 39,000 - 41,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Counterattack crusher
Application:
Sand making, mineral processing, ore milling, fireproofing, etc. etc.
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Guangzhou Shenzhen Dalian Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Counterattack crusher
Application Sand making, mineral processing, ore milling, fireproofing, etc. etc.
Motor Type AC Motor
Power(W) 132000
Capacity(t/h) 80-160
Place of Origin Henan, China
Brand Name Hongyun
Model Number PF-1214
Dimension(L*W*H) 2582*2403*2809 (mm)
Weight 22 t
Certification CE, ISO
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

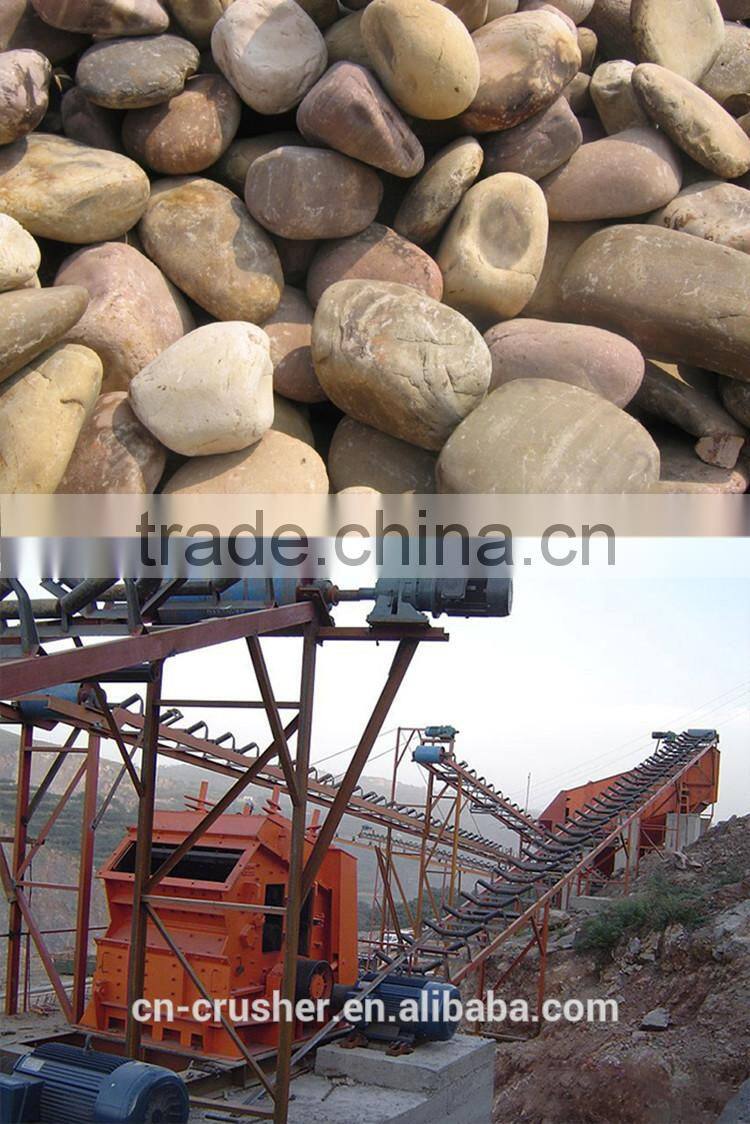

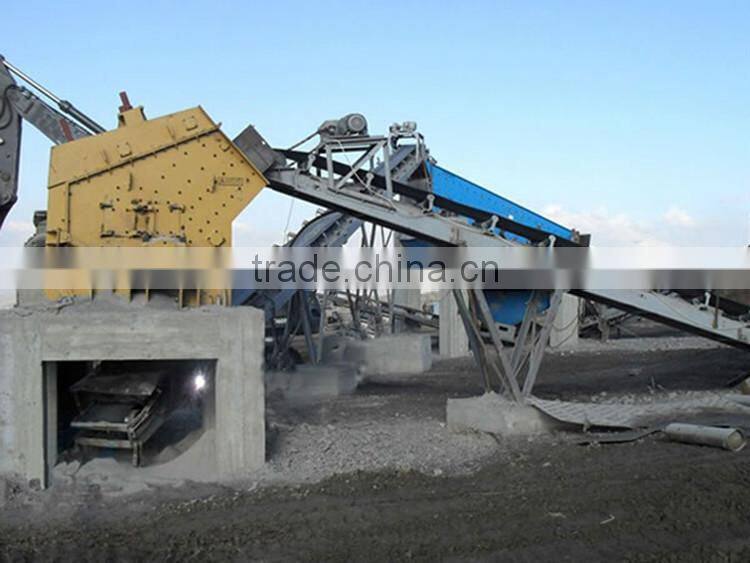

Long life xxnx impact crusher with large capacity of 80-160 t/h



Application

    It can be suitable for fine crushing work of production line for sand, stone and mineral processing. At the same time, it is also involved in the coal, metallurgy, chemical, refractory and other industries.

 Long life xxnx impact crusher with large capacity of 80-160 t/h

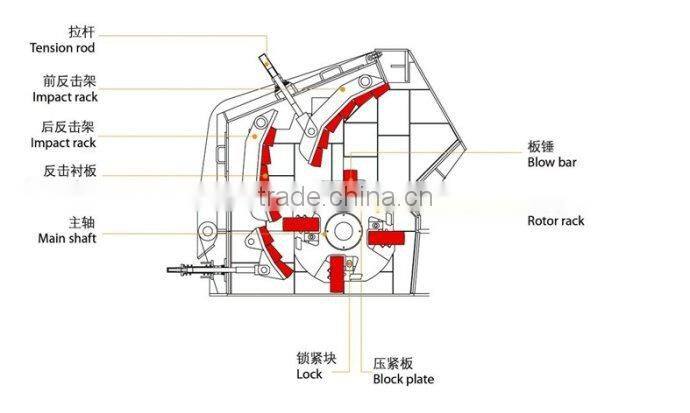

Working principle
    The counterattack crusher mainly uses impact force to do main crushing work. And it achieves the demanding discharging requirement of granularity and shape by using the particular mode of operation.
Long life xxnx impact crusher with large capacity of 80-160 t/h

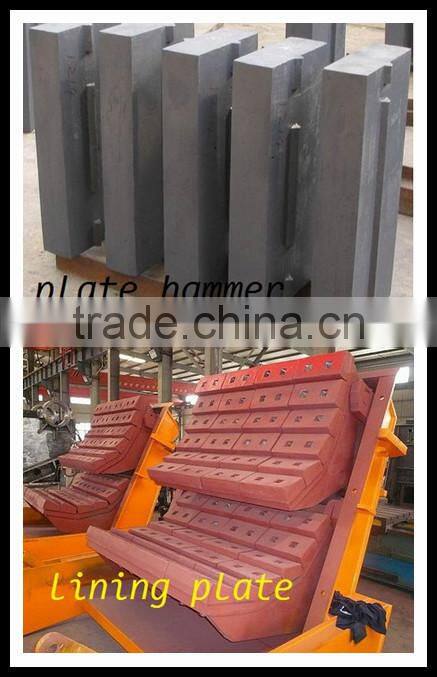

Note:    Plate hammer:  It can crush 30,000-40,000 m3 cobbles all its service life.
Lining plate:  It can crush 100,000 m3 cobbles all its service life.

 Long life xxnx impact crusher with large capacity of 80-160 t/h

Advantages
     1,Main crushing tools such as plate hammer and counterattack plate are made from wear-resisting material with super wear-resistant capacity;
   2,make the device to product discharging materials with appropriate granularity and shape. Moreover the unit power consumption is low and the usability is high;
   3,Selective crushing effect. It can crush materials into cubes, and it is important in industries with demanding requirement to materials;

   4, Novel designed. Use crushing technology with new concept to meet materials’ crushing demands of different sizes.





Technical parameters



Model

Motor type

Motor power (kw)

Dimension  (mm)

Weight (t)

Capacity (t/h)

Feed opening      (mm)

Max feeding (mm)

PF-1007

  Y250M-6

           37

1800*1600*1800

      9.5

     35-50

         400*730

         300

PF-1010

  Y315S-6

           75

2340*2007*2500

      14

     50-80

         400*1080

         350

PF-1210

  Y315L1-6

          110

2582*2053*2809

      17

    70-120

         400*1080

         350

PF-1214

  Y315L2-6

          132

2582*2403*2809

      22

    80-160

         400*1430

         350

PF-1315

Y2-355M2-6

          200

2930*2761*3053

      26

    90-220

         860*1520

         500

 Long life xxnx impact crusher with large capacity of 80-160 t/h

About Hongyun

     Gongyi Xiaoyi Hongyun machinery factory is a manufacturer which professionally researching and developing sand production line, stone production line, mechanism sand production line, quartz sand production line, mineral processing production line, magnetic separation production line, flotation production line, construction waste processing production line, preparation equipment and other products.

Our Services

      1.One package service including the buyers’ process design, on-site construction guidance, equipment installation and debugging, training technical persons and operators.
   2.One year warranty.
   3.Long-term supply of components.

our factory

Long life xxnx impact crusher with large capacity of 80-160 t/h

Long life xxnx impact crusher with large capacity of 80-160 t/h

Long life xxnx impact crusher with large capacity of 80-160 t/h

customers visit

Long life xxnx impact crusher with large capacity of 80-160 t/h

Long life xxnx impact crusher with large capacity of 80-160 t/hLong life xxnx impact crusher with large capacity of 80-160 t/h
