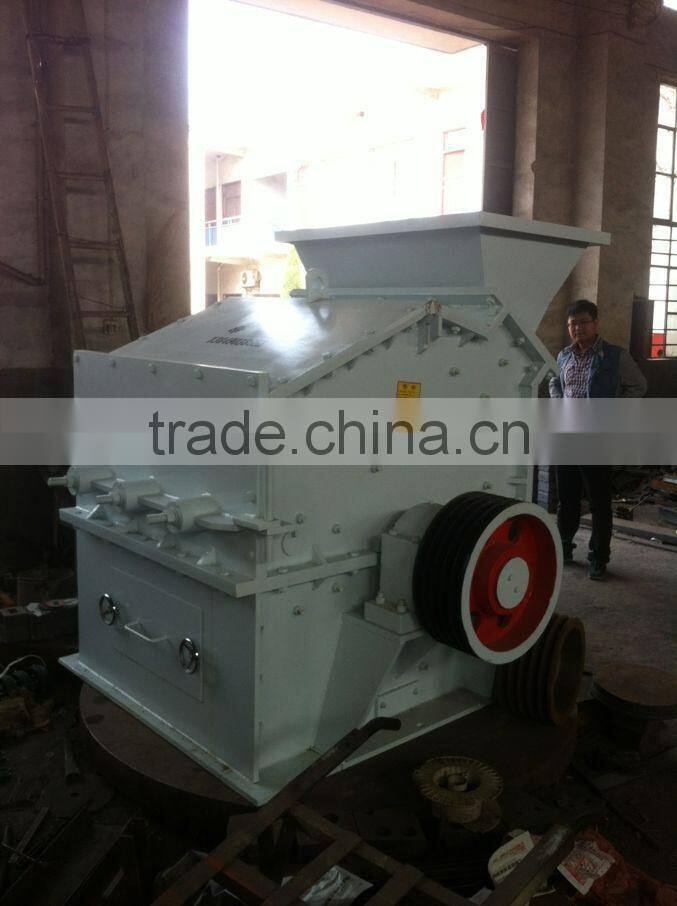

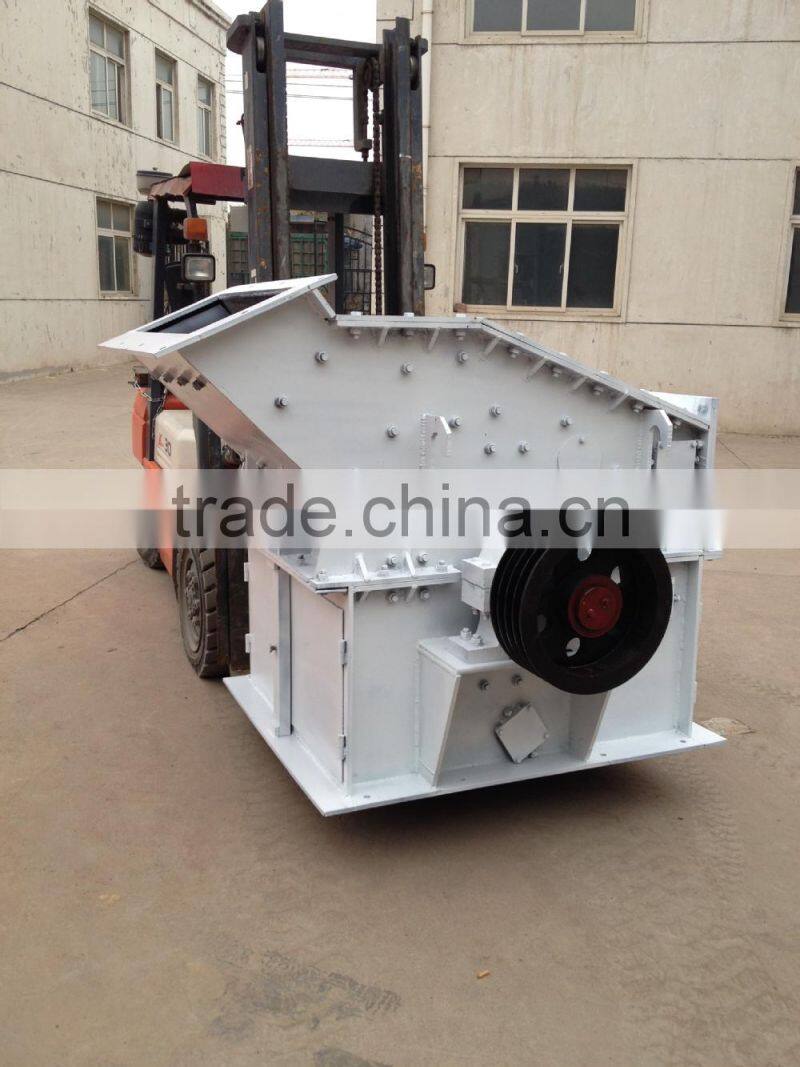

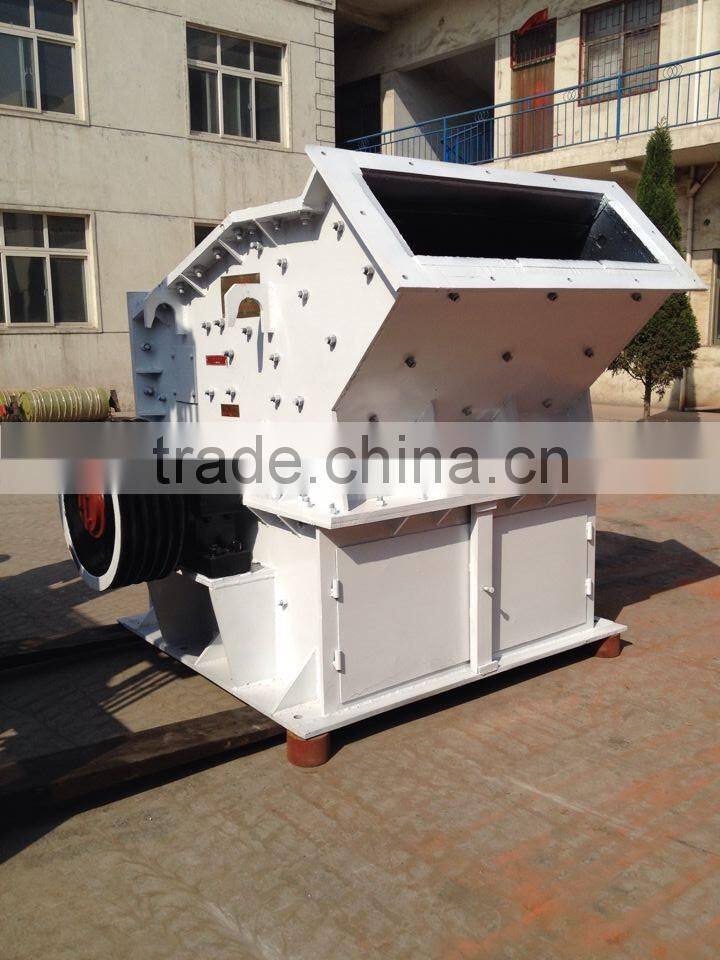

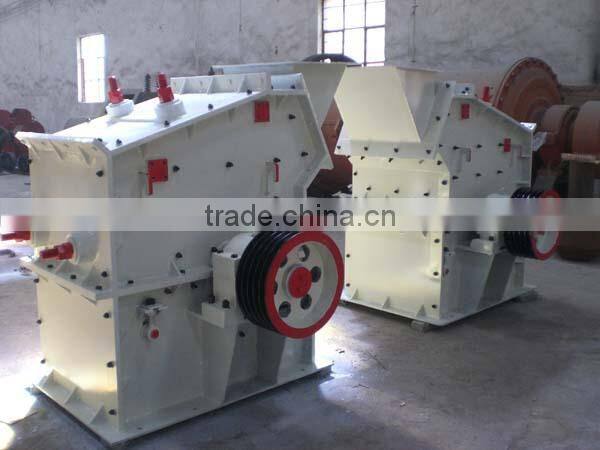

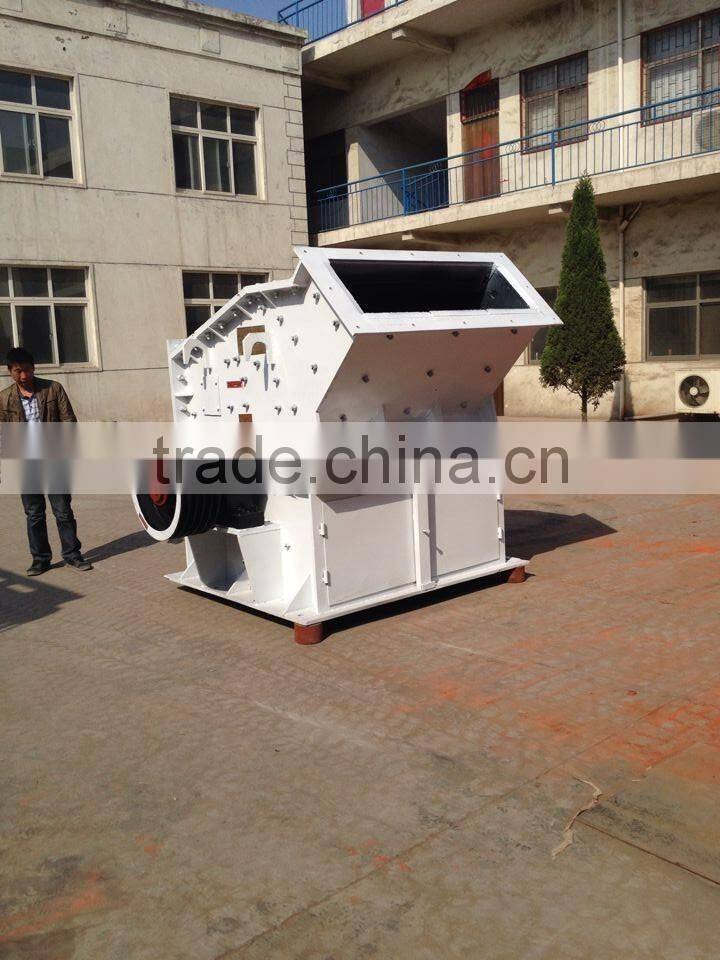

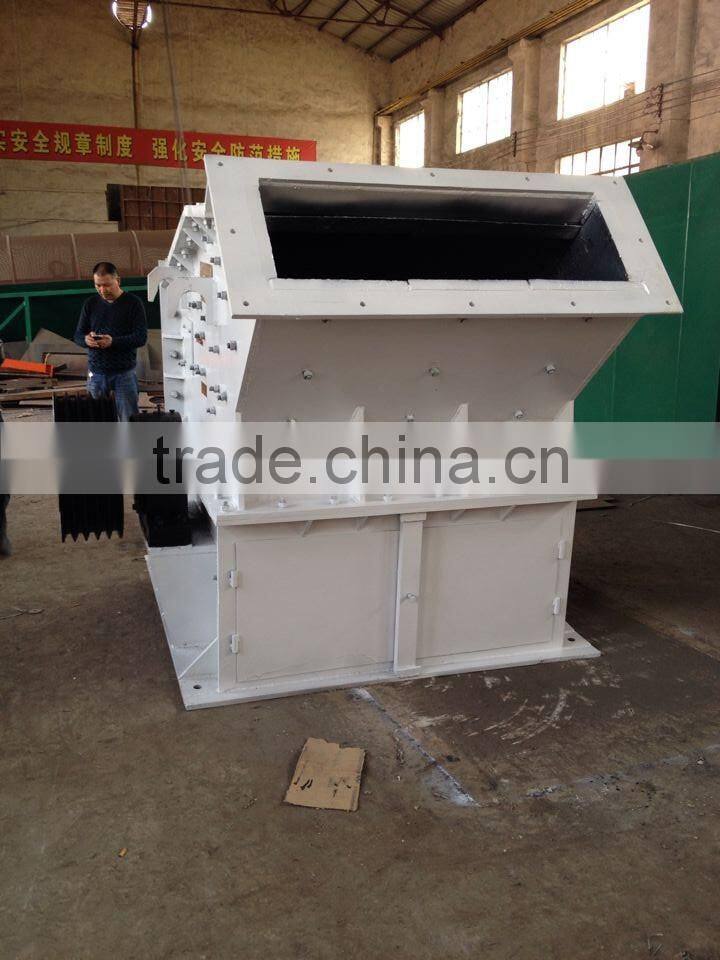

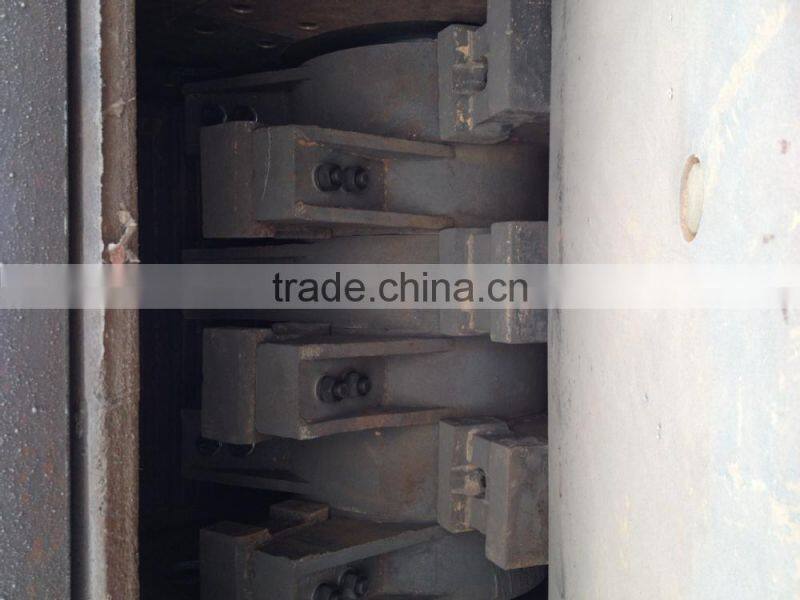

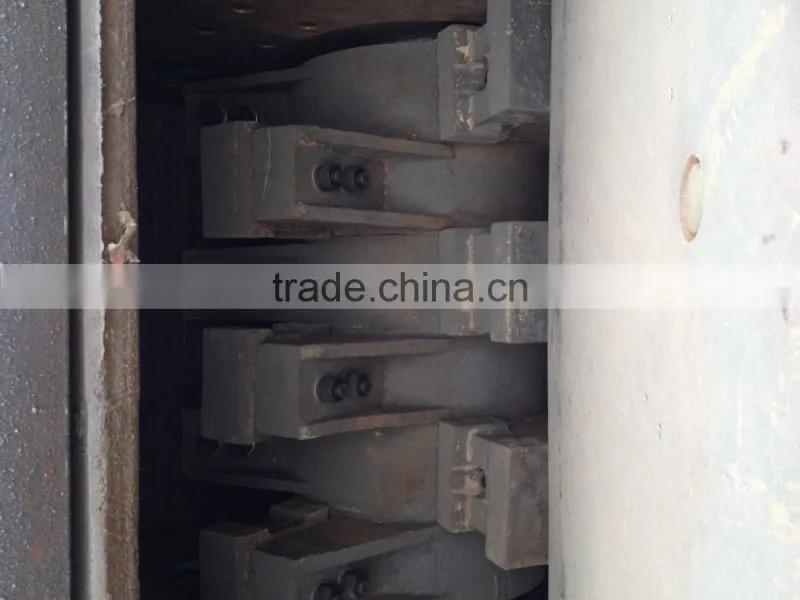

Hot Fine crusher is a new advanced device which includes all advantages of crusher at the present. It is composed of box, hammer, lining board, the first crushing chamber, the second crushing chamber and wheel drum. Fine crusher is a high performance device of crushing machine, and the cost of investment is lower 50% than traditional machine. This crusher has the high comprehensive use value. For example, it can be used in sand, lime, building material, construction, mineral processing, milling of ores, chemical industry, metallurgy and other industrial departments.
Advantages:
1, Firm overall structure; connected by rivets to make the operation of the device more stable
2, Easy to operate and maintain with a easy structure
3, Large capacity and durable components bring more benefits for the users
4, Low cost of investment with high usability, create more business opportunities
5, Abrasion resistant and durable; low maintenance fees if it has been used for a long time; reduced cost
6, It can be used widely in different industries to meet different needs
7, Special regulating function; revise the effect of the discharged material to make the work up to a higher level
8, High productivity, increase about 50% compared with modern ordinary devices with the same qualification
9, Double crushing cavity increases productivity
10, Efficient and energy-saved; less dust and noise
Model (mm) | Feed port size (mm) | Feedstock size (mm) | Discharge size (mm) | Adjustive width of discharge gap (mm) | Cement clinker (T/H) | Cobblestone (T/H) | Power (kw) |
800×600 | 500×250 | <180 | <5 | 5-20 | 35-40 | 45-55 | 45-55(6J) |
800×800 | 550×330 | <180 | <5 | 5-20 | 35-40 | 55-65 | 45-55(6J) |
1010×1010 | 1000×350 | <180 | <5 | 5-20 | 45-55 | 65-75 | 55-75(6J) |
1200×1000 | 1200×400 | <180 | <5 | 5-20 | 80-110 | 80-100 | 100-110(6J) |
1200×1200 | 1200×450 | <180 | <5 | 5-20 | 100-110 | 90-100 | 100-132(6J) |
1400×1400 | 1500×500 | <190 | <5 | 5-20 | 100-150 | 100-150 | 160(6J) |
1600×1600 | 1600×550 | <190 | <5 | 5-20 | 170-210 | 190-250 | 250(6J) |
1800×1800 | 1800×1800 | <190 | <5 | 5-20 | 250-270 | 280-310 | 315(6J) |
