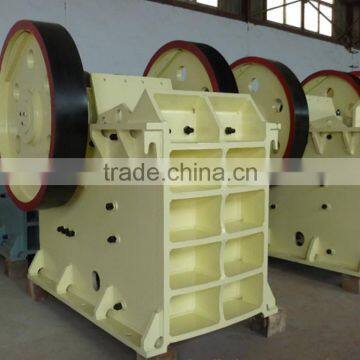

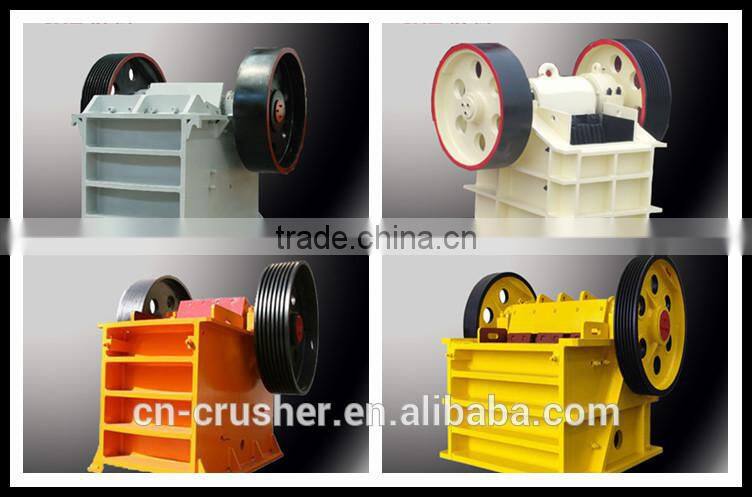

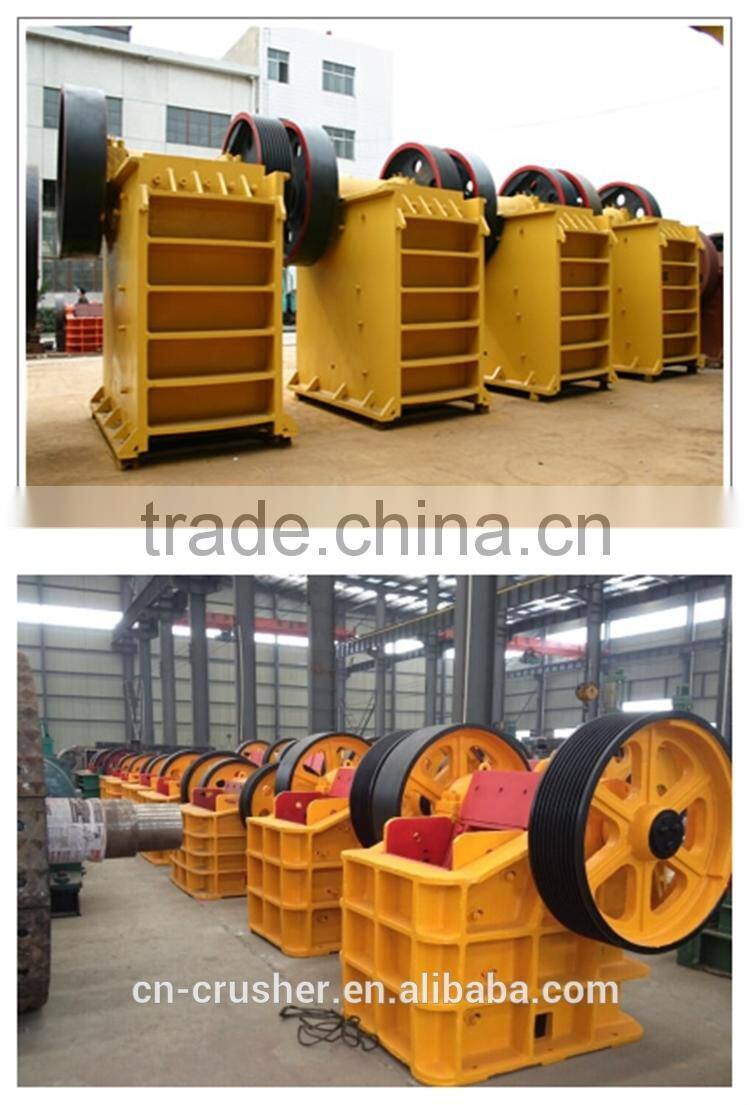

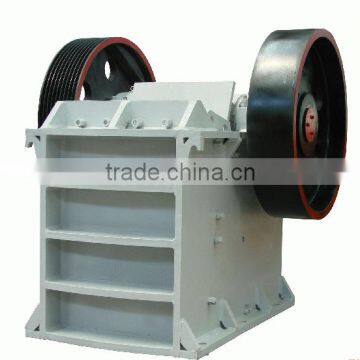

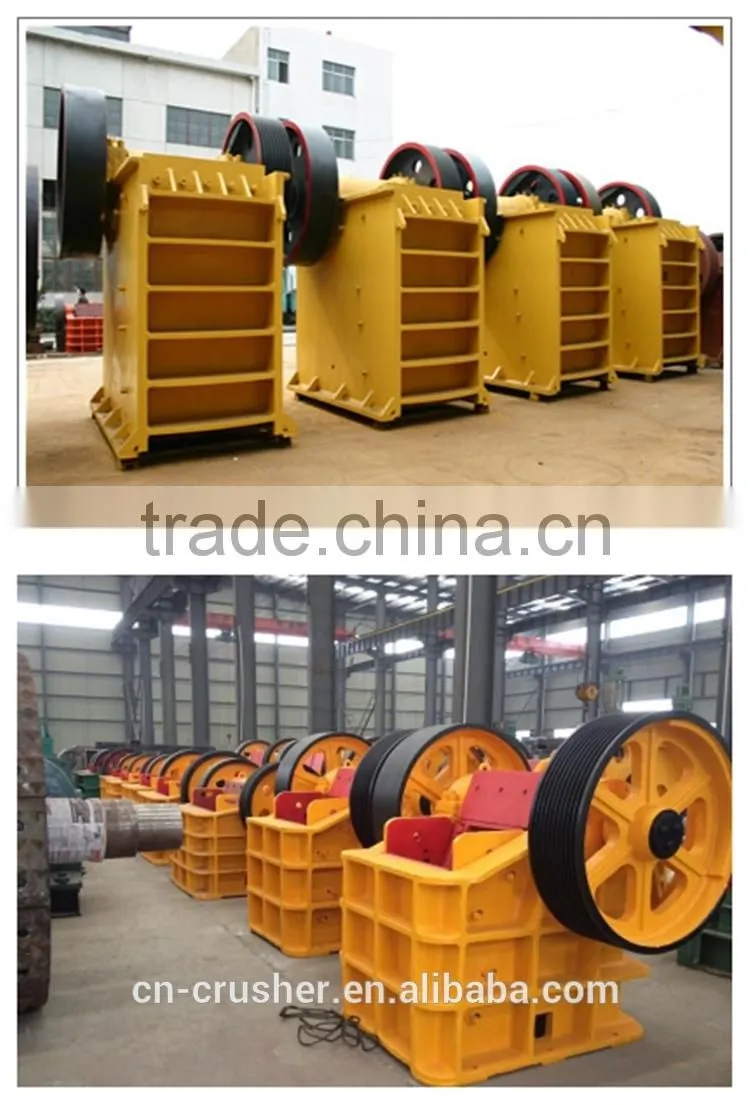

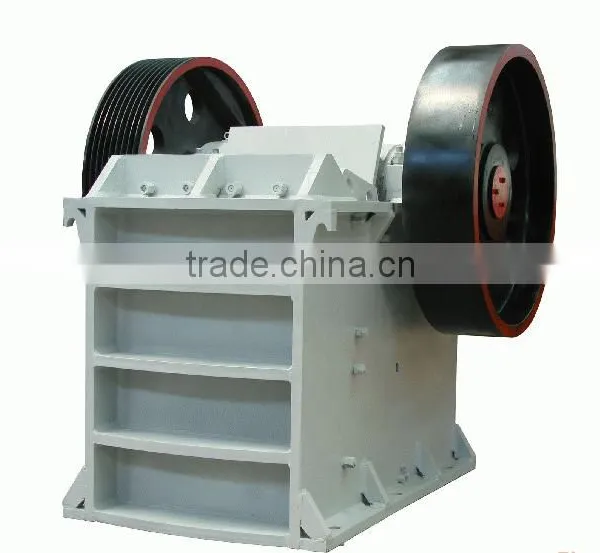

Jaw crusher
Application:
It is widely used in sand making, mineral processing, ore milling, coal milling, metallurgical engineering, chemical engineering, etc.
Working principle:
It adopts the crushing principle of extruding, striking, split folding to crush the material during using.
Advantages:
1,The external structure is simple and it is easy to operate.
2 ,The max feed size is big and the discharging port is adjustable in accordance with the requirements of customer.
3,High efficiency and low energy consumption.
4, The crushing chamber’s volume is large and no broken corner. It also can improve the feeding quantity and the work output.
5, Applicability is wide, characteristic of discharging is symmetrical, being used in a variety of industries which require more strict products in granular size.
Technical parameters:
Model |
Feeding opening size (mm) |
Maximum feed size (mm) |
Discharge port adjusting range (mm) |
Processing capacity (t/h) |
Motor power (kw) |
Weight (t) |
Dimension(mm) |
PE-250×400 |
250×400 |
200 |
20-50 |
5-20 |
15 |
3 |
1430*1310*1340 |
PE-400×600 |
400×600 |
350 |
40-100 |
10-60 |
30 |
7 |
1700*1732*1653 |
PE-500×750 |
500×750 |
425 |
50-100 |
40-110 |
55 |
12 |
2035*1921*2000 |
PE-600×900 |
600×900 |
480 |
65-160 |
90-180 |
75 |
17 |
2290*2206*2370 |
PE-750×1060 |
750×1060 |
630 |
80-140 |
110-320 |
110 |
29 |
2655*2302*3110 |
PE-900×1200 |
900×1200 |
750 |
95-160 |
220-450 |
132 |
58 |
3800*3166*3045 |
PE-1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
160 |
100.9 |
6380*5310*3710 |
PEX-150×750 |
150×750 |
125 |
18-48 |
5-16 |
15 |
3.8 |
1200*1500*1200 |
PEX-250×750 |
250×750 |
210 |
25-60 |
15-30 |
30 |
5 |
1667*1545*1020 |
PEX-250×1000 |
250×1000 |
210 |
25-60 |
15-30 |
37 |
7 |
1550*1964*1380 |
PEX-250×1200 |
250×1200 |
210 |
25-60 |
20-60 |
45 |
8.5 |
2192*1900*1950 |
PEX-300×1300 |
300×1300 |
250 |
20-90 |
30-90 |
75 |
11.5 |
1750*2320*1724 |
About us:
Gongyi Xiaoyi Hongyun machinery factory is a manufacturer which professionally researching and developing sand production line, stone production line, mechanism sand production line, quartz sand production line, mineral processing production line, magnetic separation production line, flotation production line, production waste processing line, preparation equipment and other products. And our company is responsible for a package service including the buyers’ process design, on-site construction guidance, installation and debugging of the equipment, training technical persons and operators. Three guarantees, one year warranty, long-term supply of components.
