Automatic Mobile Car Bodies Baling Shearing Machine
- 100 Set / Sets per Month
- Shanghai
-
Omax Maxiem Pump Minor Maint 302700 Retainer Man 301873 301353 Ring Seal 303274 Major Maintenance Kit
-
Dual Port Swivels Seal Replacement Kit 308616 Package for Omax 308620-1 2 3
-
60KPSI SL-IV SL-V WK000216 05007786 Bushing Retainer Flange for KMT Water Jet Cutting
-
Waterjet Spare Parts 90K WK000190 189 20468617 20475871 Pneumatic Dump Valve
-
1-14493 UHP 90 degree 1/4 in. 94k Waterjet Repair Kit 015093-1 Swivel Rebuild Kit for Water Jet Cutt
-
Hydraulic Waste Car Body Shell Gantry Shear Machine for Scrap Recycling Center
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | gaode | ||
| Model Number: | HBS-4000 | Voltage: | Based on customer | Rated Power: | 220 KW |
| Dimension(L*W*H): | None | Weight: | None | Certification: | CQC;CE;ISO9001:2008, ISO9001: 2008 |
| Warranty: | 180 Days, 6Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

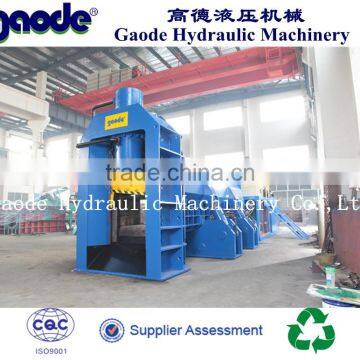

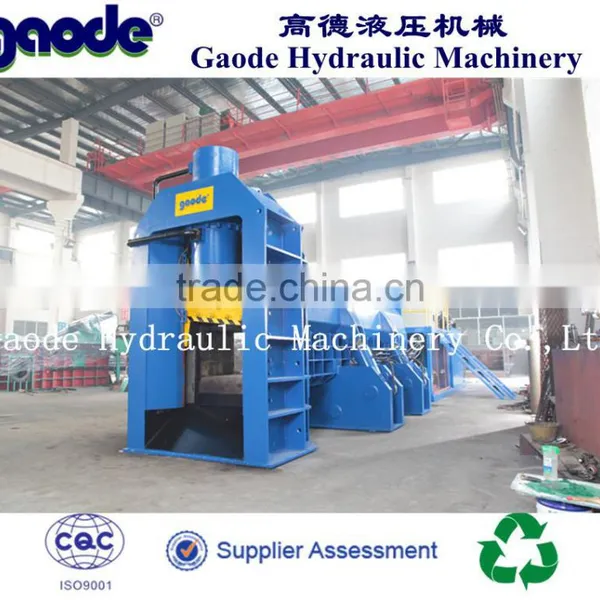

HBS-4000 Automatic Mobile Car Bodies Baling Shearing Machine
Detailed Specifications: --- HBS-4000
No. | Technical Specification | Remark | ||||||||
1 | Press Box Size(L*W*H)
| 5000*1600*900mm |
| |||||||
2 | Bale Size(L*W*H)
| 700*500mm |
| |||||||
3 | Hydraulic System Pressure | 25 MPa |
| |||||||
4 | Total Motor | 110KW |
| |||||||
5 | Power | 380V/3PH,50Hz |
| |||||||
6 | Blade Length | 800mm |
| |||||||
7 | Shearing Frequency (times/min) | 3-5 times/min |
| |||||||
8 | Capacity(Ton/Hour) | 4-12 |
| |||||||
9 | Max Cutting Force (material Tensile Strength no more than 440MPa) | Round TeelΦ120mm |
| |||||||
Billet 110*110mm | ||||||||||
Steel Plate 50*600mm | ||||||||||
10 | Motor | Model | Y200L2-6 | Nominal Power | 55KW |
| ||||
Nominal Speed | 970rmp | Quantity | 2 pieces |
| ||||||
11 | Hydraulic Pump | Model | 250YCY14-1B | Nominal Pressure | 31.5MPa |
| ||||
Nominal Outflow | 250ml/r | Quantity | 2 Pieces |
| ||||||
12 | Equipment Outline Dimension
| 11300*2800*3500(Flank Expansion) | L*W*H | |||||||
11300*2200*3500mm(Flank Collapsed) | L*W*H | |||||||||
13 | Floor Space | 14000*4000mm | L*W | |||||||
14 | Control System | PLC Automatic Control |
| |||||||
15 | Cooling System | Oil - steam heat exchanger
|
| |||||||
Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.
Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Finished Products
Our Exhibition
Our Certification
Welcome To Our Factory
6months guarantee for whole machine.
24hours technical support by email.
Calling or door to door service.
User manual and detailed video.
Nancy
Sales representative
Jiangsu Gaode Hydraulic Machinery Co.,Ltd---China factory
Add: No. 691 Chengshan Road, Jiangyin City, Jiangsu Province.
Mobil/What's App : +86-15261635390 (24/7)
Tel: 86-510-86996082
Fax: 86-510-86993993
1,Q;Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2,Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
5,Q: Can we order one set machine?
A:Yes, you can.
