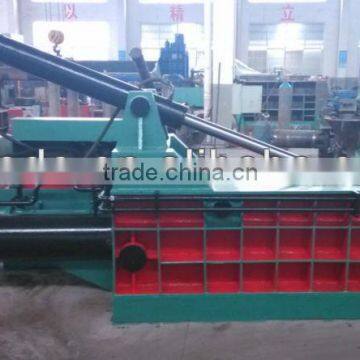

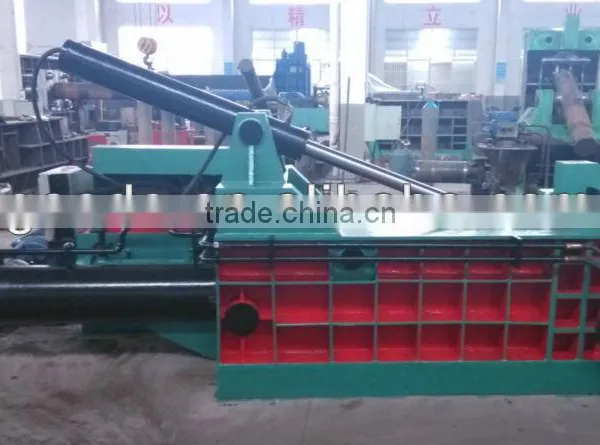

New Manual Valve Hydraulic Scrap Metal Compressor Machine
Applications Of New Manual Valve Hydraulic Scrap Metal Compressor Machine:
HC81Q-1350 hydraulic metal baler is applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Features Of New Manual Valve Hydraulic Scrap Metal Compressor Machine:
1, Hydraulic drive for all machine types, manual valve control or PLC control .
2, Bale-discharging:" forward-out" .
3, No footing bolts needed in installation ; diesel engine can be equipped for power.
Technical Specifications Of New Manual Valve Hydraulic Scrap Metal Compressor Machine:
No. | TECHNICAL SPECIFICATIONS | REMARKS | ||
1 | Nominal Force | 1350KN |
| |
2 | Press Box Size | 1100*600*600mm | L*W*H | |
3 | Bale Size | 600*300mm | L*H | |
4 | Bale Density | ≥1800 kg/m3 |
| |
5 | Capacity | About 2300 kg/h |
| |
6 | Operation & Control | Manual valve |
| |
7 | Bale Discharging | Forward-out |
| |
8 | Cycle Length | App.85Sec |
| |
9 | Hydraulic System Pressure | ≤26.5MPa |
| |
10 | Motor | Model | Y180M-4 |
|
Nominal Power | 18.5KW |
| ||
Nominal Speed | 1470rpm |
| ||
Quantity | 1 set |
| ||
11 | Piston Pump | Model | 80YCY14-1B |
|
Nominal Outflow | 80ml/r |
| ||
Nominal Pressure | 31.5MPa |
| ||
Quantity | 1 set |
| ||
Certificates Of New Manual Valve Hydraulic Scrap Metal Compressor Machine:
Welcome to our factory

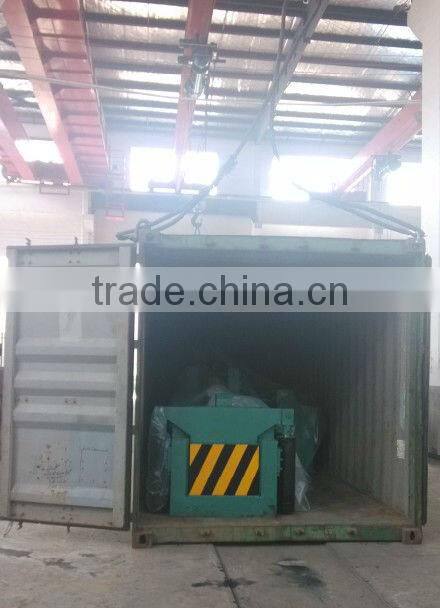

Loading of our products:
Guarantee and after-sale service
6months guarantee for whole machine
24hours technical support by email
Calling or door to door service
User manual and detailed video
