Hydraulic Rock Splitting Tools/ Stone Splittersor Sales Introduction
Hydraulic Rock Splitting Tools/ Stone Splittersor Sales
Hydraulic Stone Splitter is our newly developed Product which is a powerful and extremely cost effective alternative to other conventional demolition tools. It can develop a very huge splitting force (Maximum 1000 T) when it put into the pre- drill holes of rock or concrete and crack it into pieces within several seconds
Hydraulic Rock Splitting Tools/ Stone Splittersor Sales is widely used in mineral mining (cave mining), civil engineering construction and demolition. Hydraulic Rock Splitting Tools/ Stone Splittersor Sales is also an indispensable tool in construction, river dredging, salvation etc.
Hydraulic Rock Splitting Tools/ Stone Splittersor Sales Main Parameter
Model |
Piston Diameter |
Hole Diameter |
Hole Depth(mm) |
The length of the wedge |
crack width |
Split time |
Theoretical splitting force |
The actual split force |
(Type) |
(MM) |
(MM) |
(MM) |
(MM) |
(mm) |
(S) |
(T) |
(T) |
ZM( 32-38)A |
80 |
Φ32~38 |
≥300 |
150 |
10~35 |
5~12 |
500 |
280 |
ZM( 38-40)A |
80 |
Φ38~42 |
≥300 |
150 |
10~40 |
5~12 |
500 |
280 |
ZM( 38-40)B |
80 |
Φ38~42 |
≥400 |
200/250 |
10~40 |
5~12 |
650/600 |
350/300 |
ZM( 40-42) |
90 |
Φ42~46 |
≥600 |
300 |
10~40 |
5~12 |
680 |
420 |
ZM( 42-46) |
90 |
Φ42~46 |
≥600 |
380 |
10~40 |
5~12 |
650 |
500 |
ZM( 44-46)A |
100 |
Φ44~46 |
≥600 |
300/380 |
10~40 |
5~12 |
780 |
550 |
ZM( 44-46)B |
105 |
Φ44~46 |
≥600 |
300/380 |
10~40 |
5~12 |
880 |
600 |
ZM( 46-48) |
110 |
Φ46~48 |
≥600 |
300/380 |
10~40 |
5~12 |
1080 |
700 |
Poewr pump pack |
Dimension(mm) |
weight(kg) |
Tank capability(L) |
Engine power |
pressure(MPa) |
Flux(L/m) |
Splitting(pc) |
Diesel engine |
1150*1180*940 |
120 |
40 |
6Hp |
55-60 |
2-13 |
1-10 |

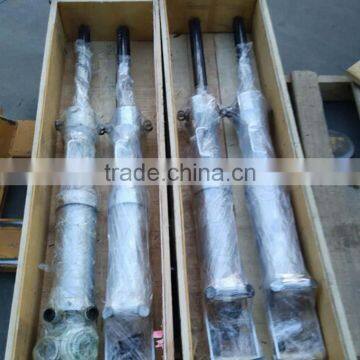

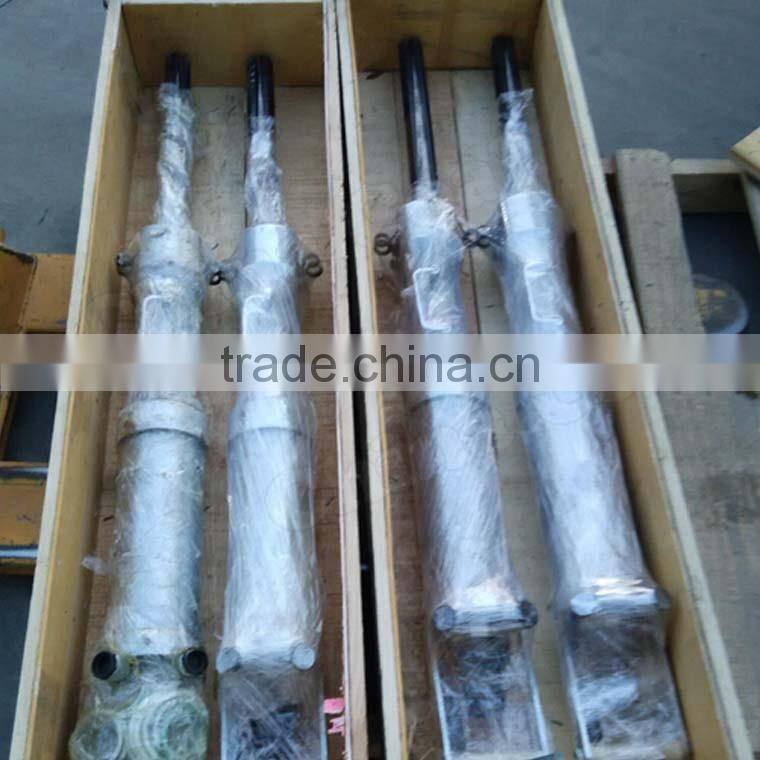

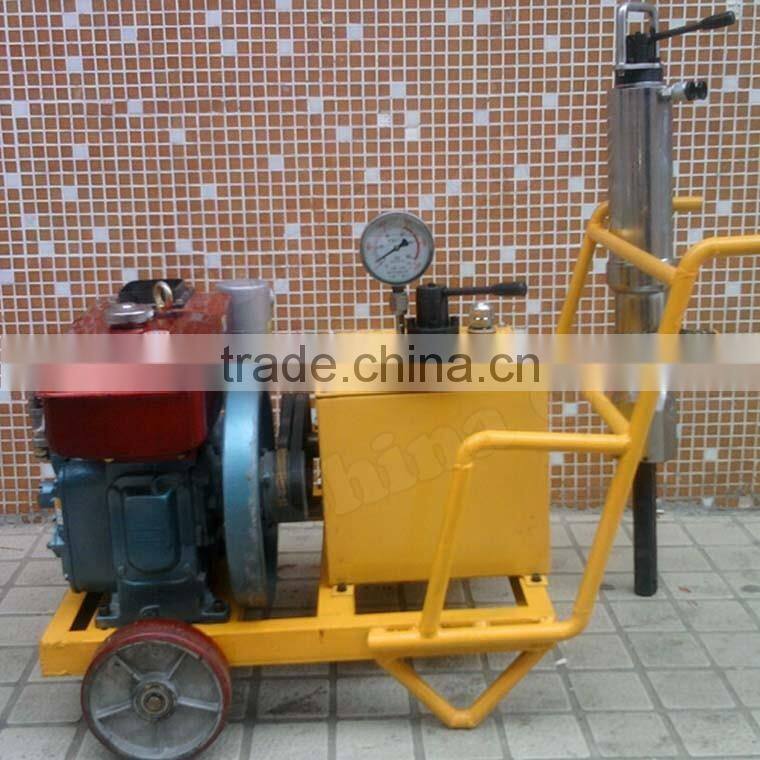

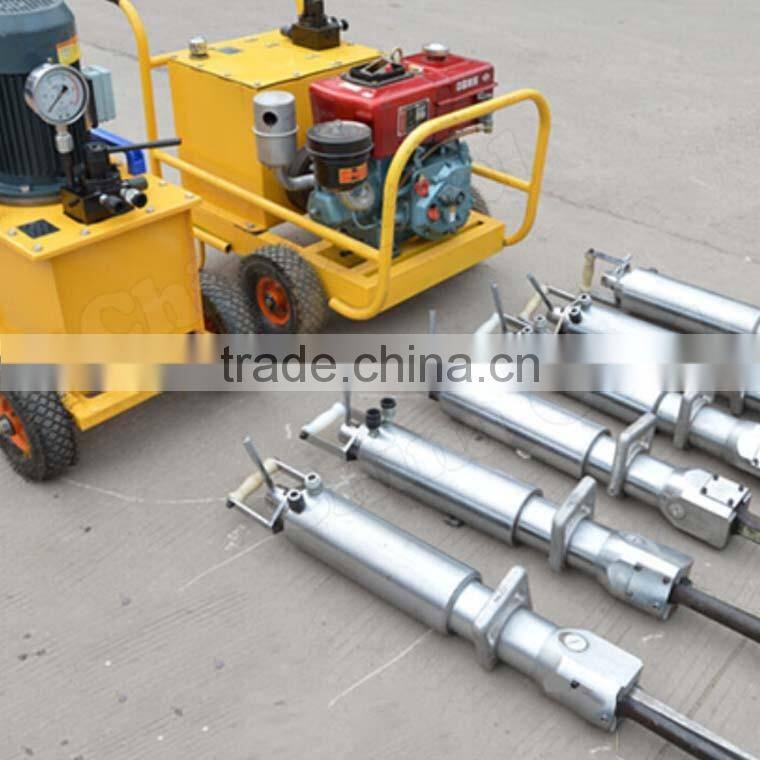

Hydraulic Rock Splitting Tools/ Stone Splittersor Sales Figure Photos
