Specifications
Breathing Air Compressor1) High pressure
2) Electricity saving
3) Certificate: CE
4) Low noisy
Product Introduction

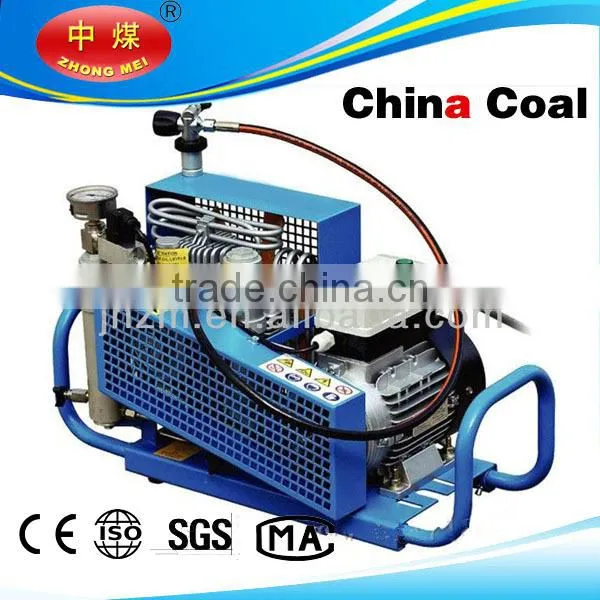

Product: MCH-6 High Pressure Breathing air compressor ,300bar air compressor
Company: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Main Parameter
MCH6/ET
Charging rate: | 100 L/min; 6 m³/h; 3.5 CFM |
Filling time cylinder: | 6.8L 0-300bar/20.4 min 12L 0-200bar/24 min |
Working pressure: | 225 Bar / 3300 Psi; 300 Bar - 4300 Psi |
Full load Amp: | 6.7A(400V-50/60Hz) |
Driven by: | Three-phase electric motor 380V |
Power: | 3Kw |
Dimensions: | height 35 cm , width 65 cm ,depth 39 cm |
Dry weight: | 39 Kg / 85 lbs |
Noise (ISO 3746): | 83 dB |
Number of stages: | 4 |
Number of cylinders: | 4 |
Lubricating oil capacity: | 300 cc (0.3L) / 10 FL.OZ |
Lubricant: | CE 750 |
Oil/mosture separator: | After last stage |
Filtration: | Filter cartridge activated carbon and molecular sieve |
Suction filter: | 2 micron paper - 25 micron polyester |
Breathing air: | EN 12021 CGA E |
Quick Details
Condition: | New | Type: | Piston | Configuration: | Portable |
Power Source: | AC Power | Lubrication Style: | Lubricated | Mute: | No |
Place of Origin: | Shanghai China (Mainland) | Brand Name: | Haolin | Model Number: | MCH-6/ET |
Voltage: | 220V/380V | Dimension(L*W*H): | 35cm*65cm*39cm | Weight: | 39KG |
Certification: | CE,ISO | Warranty: | 1 year warranty | After-sales Service Provided: | Engineers available to service machinery overseas |
Colour: | blue | Material: | stainless steel frame | Driven by: | Three-phase electric motor |
Figure Photos
About Us
Shandong China Coal Industrial & Mining Supplies Group Co.,ltd is a big joint stock enterprise founded in the early 1980s,registered capital is 138million yuan. The group total has 1100 employees,3 wholly owned subsidiaries and 18 professional branches.Hundreds of our products are exportedto Australia,Russia, Colombia,
Ukraine,Georgia, the United states,Southeast Asia and so on more than 60 countries and regions.
