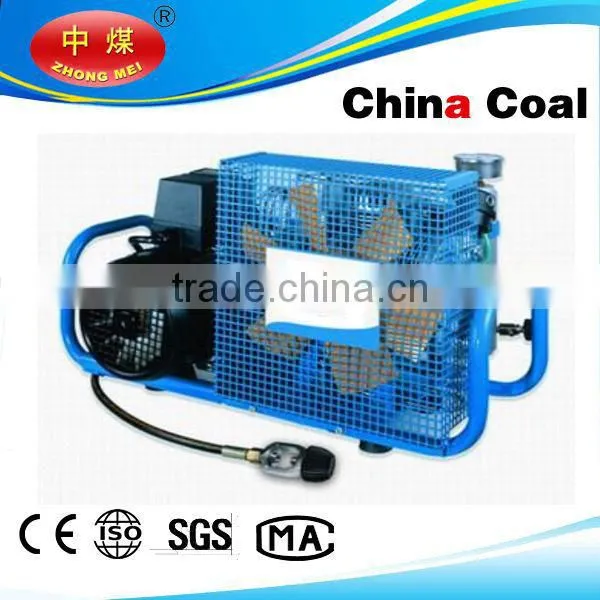

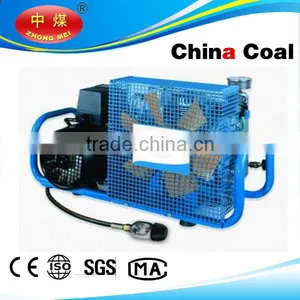

Portable MCH-6 High Pressure Breathing Air Compressor for Fire Fighting

Name: Portable MCH-6 High Pressure Breathing Air Compressor for Fire Fighting
Brand: China Coal
SKU: 141035436
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other, Other, Portable

Configuration:

Portable

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Other, Portable

Configuration Portable

Power Source AC Power

Lubrication Style Lubricated

Mute Yes

Place of Origin Shandong, China

Brand Name China Coal

Model Number MCH-6

Voltage 220V/380V, 220V/380V

Dimension(L*W*H) 350*650*390mm

Weight 40kg, 40kg

Certification CE EN

Warranty life long maintenance

After-sales Service Provided No overseas service provided

Introduction of portable MCH-6 High Pressure Breathing Air Compressor for fire fighting

Product: portable MCH-6 MCH-6 High Pressure Breathing Air Compressor for fire fighting

Company: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.

MCH6/ET

Charging rate:	100 L/min; 6 m³/h; 3.5 CFM
Filling time cylinder:	6.8L 0-300bar/20.4 min 12L 0-200bar/24 min
Working pressure:	225 Bar / 3300 Psi; 300 Bar - 4300 Psi
Full load Amp:	6.7A(400V-50/60Hz)
Driven by:	Three-phase electric motor 380V
Power:	3Kw
Dimensions:	height 35 cm , width 65 cm ,depth 39 cm
Dry weight:	39 Kg / 85 lbs
Noise (ISO 3746):	83 dB
Number of stages:	4
Number of cylinders:	4
Lubricating oil capacity:	300 cc (0.3L) / 10 FL.OZ
Lubricant:	CE 750
Oil/mosture separator:	After last stage
Filtration:	Filter cartridge activated carbon and molecular sieve
Suction filter:	2 micron paper - 25 micron polyester
Breathing air:	EN 12021 CGA E

Quick Details

Condition:	New	Type:	Piston	Configuration:	Portable
Power Source:	AC Power	Lubrication Style:	Lubricated	Mute:	No
Place of Origin:	Shanghai China (Mainland)	Brand Name:	Haolin	Model Number:	MCH-6/ET
Voltage:	220V/380V	Dimension(LWH):	35cm65cm39cm	Weight:	39KG
Certification:	CE,ISO	Warranty:	1 year warranty	After-sales Service Provided:	Engineers available to service machinery overseas
Colour:	blue	Material:	stainless steel frame	Driven by:	Three-phase electric motor
