Product Introduction

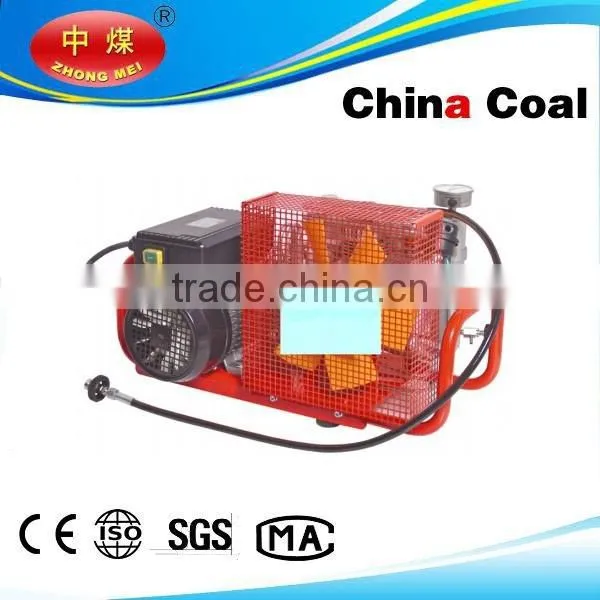

Product: portable MCH-6 MCH-6 High Pressure Breathing Air Compressor for fire fighting
Company: Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Main Parameter
MCH6/ET
Charging rate: |
100 L/min; 6 m³/h; 3.5 CFM |
Filling time cylinder: |
6.8L 0-300bar/20.4 min 12L 0-200bar/24 min |
Working pressure: |
225 Bar / 3300 Psi; 300 Bar - 4300 Psi |
Full load Amp: |
6.7A(400V-50/60Hz) |
Driven by: |
Three-phase electric motor 380V |
Power: |
3Kw |
Dimensions: |
height 35 cm , width 65 cm ,depth 39 cm |
Dry weight: |
39 Kg / 85 lbs |
Noise (ISO 3746): |
83 dB |
Number of stages: |
4 |
Number of cylinders: |
4 |
Lubricating oil capacity: |
300 cc (0.3L) / 10 FL.OZ |
Lubricant: |
CE 750 |
Oil/mosture separator: |
After last stage |
Filtration: |
Filter cartridge activated carbon and molecular sieve |
Suction filter: |
2 micron paper - 25 micron polyester |
Breathing air: |
EN 12021 CGA E |
Quick Details
Condition: |
New |
Type: |
Piston |
Configuration: |
Portable |
Power Source: |
AC Power |
Lubrication Style: |
Lubricated |
Mute: |
No |
Place of Origin: |
Shanghai China (Mainland) |
Brand Name: |
Haolin |
Model Number: |
MCH-6/ET |
Voltage: |
220V/380V |
Dimension(L*W*H): |
35cm*65cm*39cm |
Weight: |
39KG |
Certification: |
CE,ISO |
Warranty: |
1 year warranty |
After-sales Service Provided: |
Engineers available to service machinery overseas |
Colour: |
blue |
Material: |
stainless steel frame |
Driven by: |
Three-phase electric motor |
Figure Photos
