Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Granulator > High-speed Turbo-type Plastic Mill Machine/ Grinder Pulverizer Crusher Machine Grinder Plastic

High-speed Turbo-type Plastic Mill Machine/ Grinder Pulverizer Crusher Machine Grinder Plastic

High-speed Turbo-type Plastic Mill Machine/ Grinder Pulverizer Crusher Machine Grinder Plastic photo-1
US$ 4,000 - 7,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Recycling Granulator
Capacity:
100-380kg/h
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Recycling Granulator
Capacity 100-380kg/h
Place of Origin Jiangsu, China
Brand Name sevenstars
Model Number SMW
Material Other, PVC HDPE
Screw Design Other
Voltage customized
Power 45KW
Dimension(L*W*H) 5.9*1.45*2.9m
Weight 1680kg
Certification CE ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

plastic mill/grind machine
1.mill PVC,PE,HDPE material.
2.Capatity100-380kg/h, mesh 30 to 80
3.CE low noise

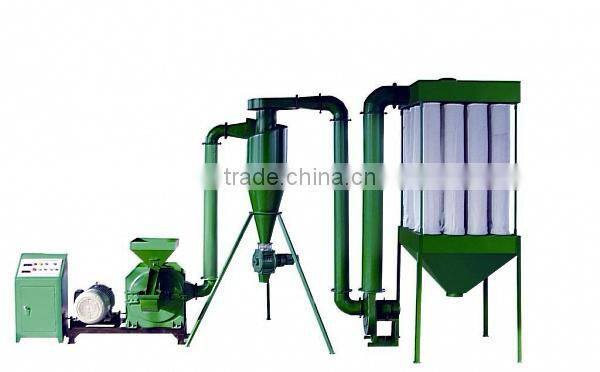

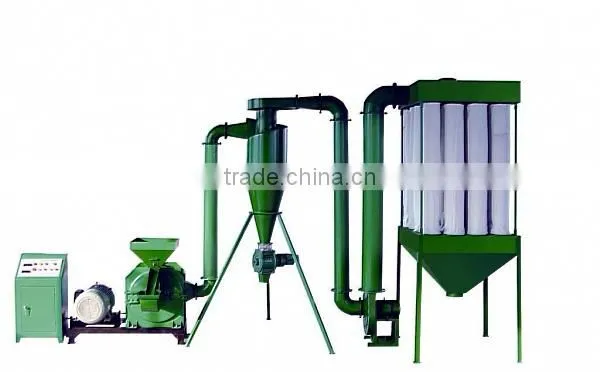

SMW Series High-speed Turbo-type Plastic Mill/Grinder/Pulverizer/Crusher Machine

Purpose

          We have absorbed the advanced technology at home and abroad developed the SMW series grinding mill which applicable to the powder processing of PVC plastic (Low to moderate hardness), HDPE and so on.

The practice and experience of plastic product factories show that the chemical physics functions of the products can reaches 280-380kg/h (30-80mesh). So this machine is the best equipment for reducing cost, saving expense and solving the accumulation of waste plastic.

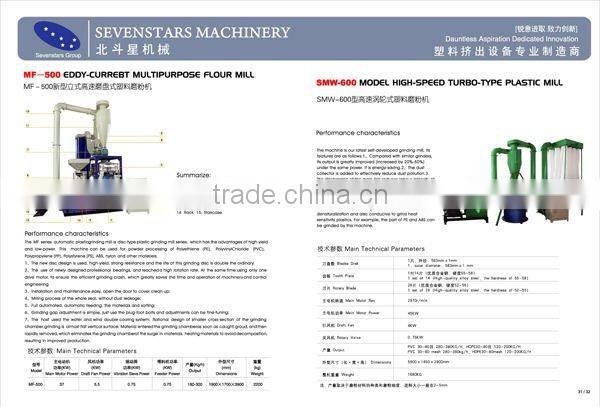

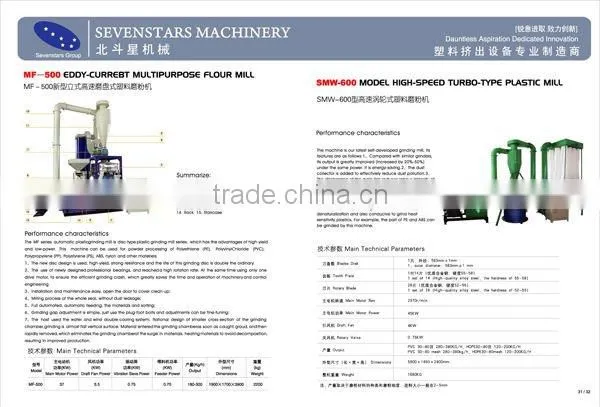

SMW-600 HIGH-SPEED Turbo-type plastic mill(milling machine)

  Main specification:



Blades Disk

1,outer diameter: 483mm±1mm

Tooth Plate

1 set of 14 (High-quality alloy steel, the hardness of 55-58)

Rotary Blade

1 set of 28 (High-quality alloy steel, the hardness of 52-55)

Main Motor Rev

2970r/min

Main Motor Power

45kw

Draft Fan

4kw

Rotary Valve

0.75kw

Output

PVC 30-80mesh 280-380 kg/h      HDPE 30-80 mesh 120-200 kg/h

Dimensions

5900*1450*2900mm

Weight

1680 kg







Product Features

  • The PVC Pulverizer's output has been greatly improved in the case of the same power compared with similar PVC Pulverizer (increased by 20%-50%).
  • The PVC Pulverizer equipped with a Wind Cooling System and Water Cooling System.
  • Installation and Maintenance are very easy.
  • The PVC Pulverizer equipped with a Dust Collector which can effectively reduce dust pollution.
  • Low Noise and Low Vibration.(milling machine)

  Product Description

The PVC Pulverizer designed by ourself that injected the world most advanced and practicality elements. High-Efficiency.No Dust Pollution. (milling machine)high-speed turbo-type plastic mill machine/ Grinder Pulverizer Crusher Machine grinder plastichigh-speed turbo-type plastic mill machine/ Grinder Pulverizer Crusher Machine grinder plastichigh-speed turbo-type plastic mill machine/ Grinder Pulverizer Crusher Machine grinder plastichigh-speed turbo-type plastic mill machine/ Grinder Pulverizer Crusher Machine grinder plastic
