Plastic Pipe Belling Machine

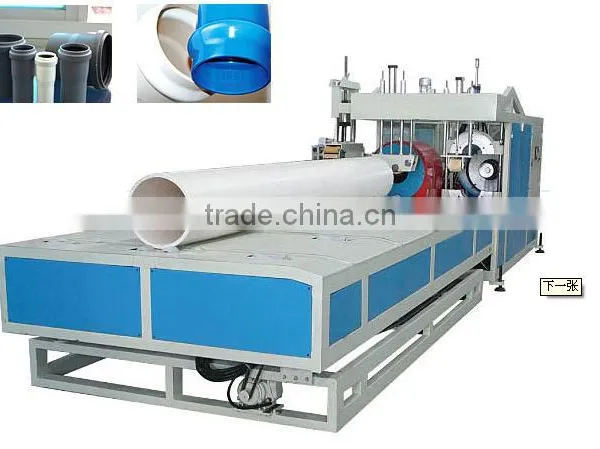

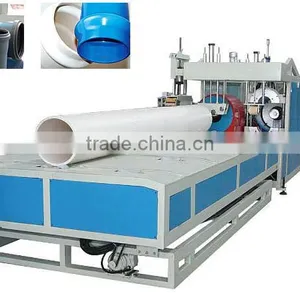

Plastic Pipe Belling Machine thumbnail-1
Plastic Pipe Belling Machine photo-1
US$ 6,000 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Pipe
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Zhangjiagang Sevenstars Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Plastic Pipe
Place of Origin Jiangsu, China
Brand Name sevenstars
Model Number SGK
Voltage 380V
Power(W) vaired
Dimension(L*W*H) varied
Weight varied
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

plastic pipe belling machine
1.CE
2.PVC pipes
3. belling types:R-type,U-type
4.Water-cooled or Air-co

The pipe belling type: Straight type and R type. The shaping method is Vacuum pump system. After shaping the force water cooling of pipe are adopted to ensure precise belling size. The machine can be used on complete extrusion line with PLC control. The machine has the characteristic of advanced technique, easy operation and high automatic and so on.

Automatic Pipe belling Machine

Main Technical Parameter:

Model

SGK160

SGK250

SGK400

SGK630

SGK1000

Pipe OD(mm)

40-160

50-250

160-400

315-630

500-1000

Pipe Length(m)

3-8

3-8

4-8

4-8

6-8

Hydraulic working pressure(mpa)

5

6.3

6.3

8

8

Compressed air pressure(mpa)

0.6

0.6

0.6

0.6

0.6

Total power(kw)

18

18

25

32

50

Total weight (kg)

2300

2500

3000

3500

8000

Overall size(L*W*H)mm

7000*1530*1963

7300*1730*1950

7900*2140*2125

8423*2970*2650

10000*4600*2570

Production  speed(s)

45-500

50-600

60-900

150-1200

500-2500

Forming mode:            With pressurized cylinder (or vacuum pump)and expandable belling moulds

Cooling mode:                                     Water-cooled

R-type belling moulds:    3Cr13 for collapsible core,40Cr for die block,and other mater are 45#steel,electro-                                              plating for surface treatment

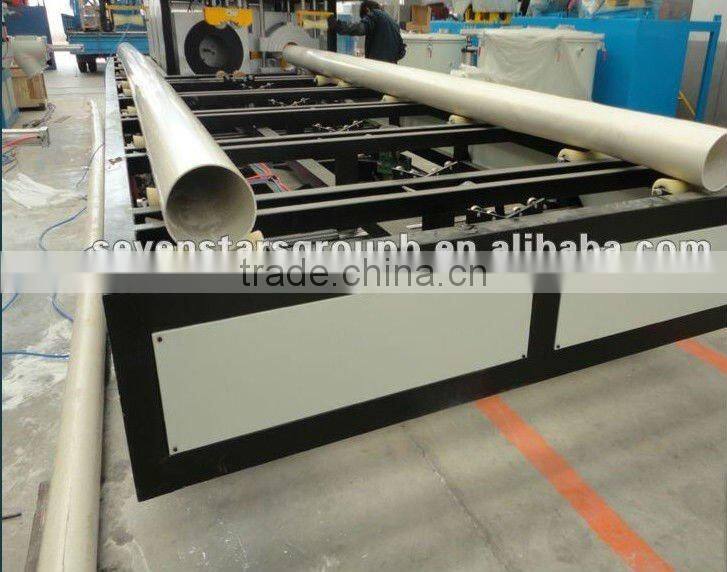

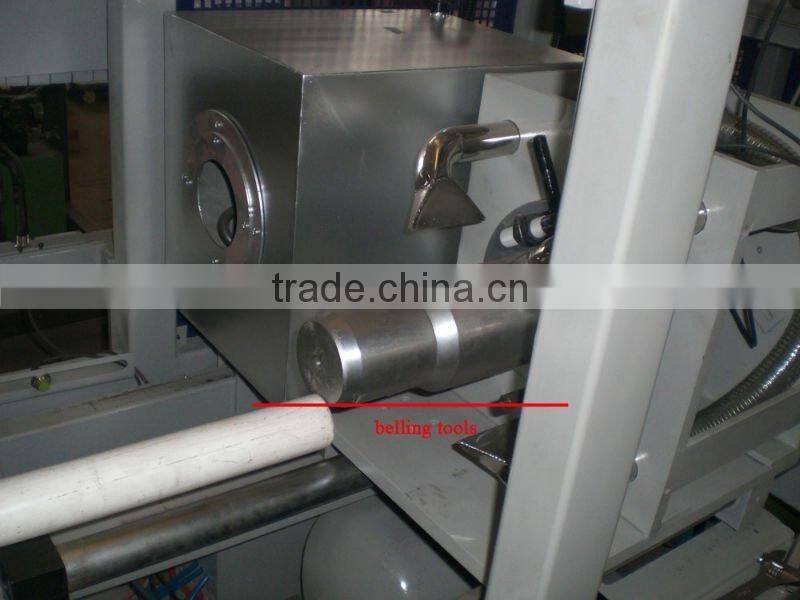

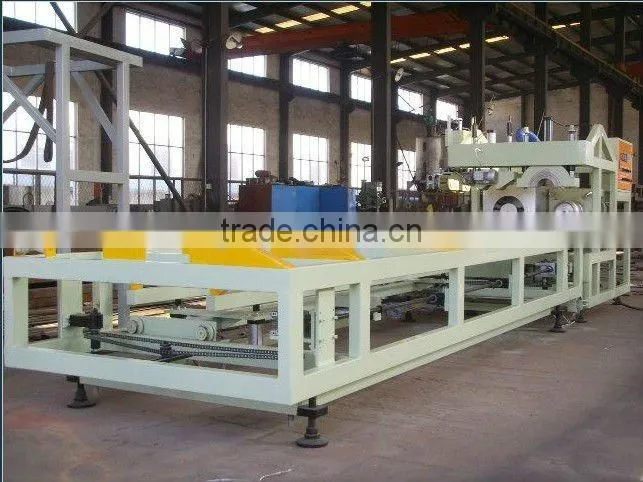

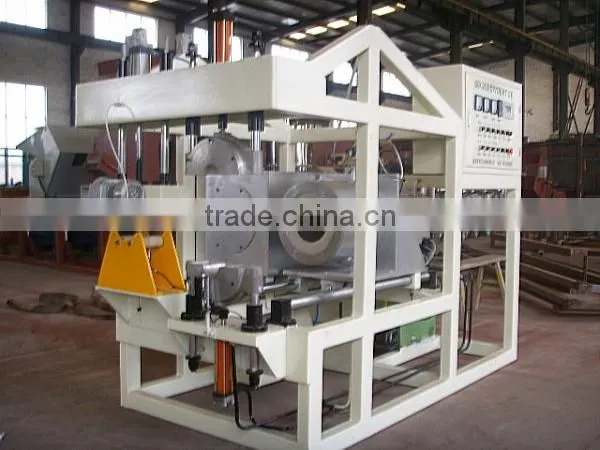

Pictures for plastic pipe belling machine plastic pipe belling machine

plastic pipe belling machineplastic pipe belling machineplastic pipe belling machineplastic pipe belling machine
