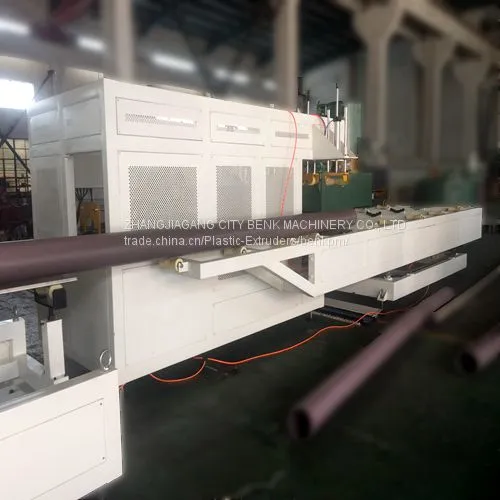

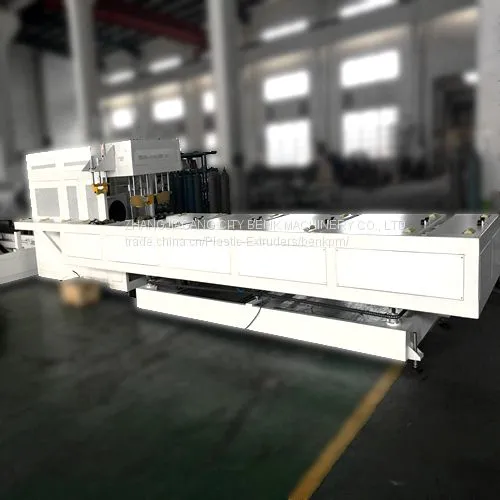

PVC Pipe Full Auotomatic Belling Machine with double heating oven
Double Oven PVC Pipe Full Automatic Belling Machine is suitable for the R type ,U type and Rectangle plastic pipe. It can not only used in line with the pipe production line but also can be used alone.
PVC Pipe Full Automatic Belling Machine Features;
1.Adopts infrared ray heating way and each heating furnace is located within the central heating furnace core.
2. Adopts expansion tube head shaping method, with accurate dimension of nozzle.
3.Electrical control components are in accordance with international safety certification mark, such as the CET or TUF, PLC Mitsubishi, Schneider configured.
PVC Pipe Full Automatic Belling Machine Technical Parameter
| Model | Pipe Diameter | Heating Method | Belling Method | Heating power | Dimension |
| SGK110 | 50-110mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK160 | 50-160mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
| SGK200 | 50-200mm | Electric heating | Mould physical expansion | 10.5kw | 7855x1350x1900mm |
| SGK250 | 110-250mm | Electric heating | Mould physical expansion | 10.5kw | 7830x1620x1700mm |
| SGK315 | 160-315mm | Electric heating | Mould physical expansion | 14kw | 8050x1750x1900mm |
| SGK400 | 200-400mm | Electric heating | Mould physical expansion | 18kw | 8290x2090x2080mm |
| SGK500 | 315-500mm | Electric heating | Mould physical expansion | 18kw | 8500x3050x2100mm |
| SGK630 | 400-630mm | Electric heating | Mould physical expansion | 22.5kw |
8615x3125x2500mm |
need more information, please feel free feedback us!
