Specifications

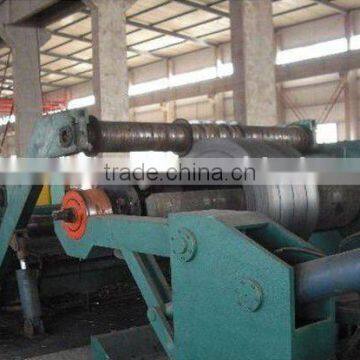

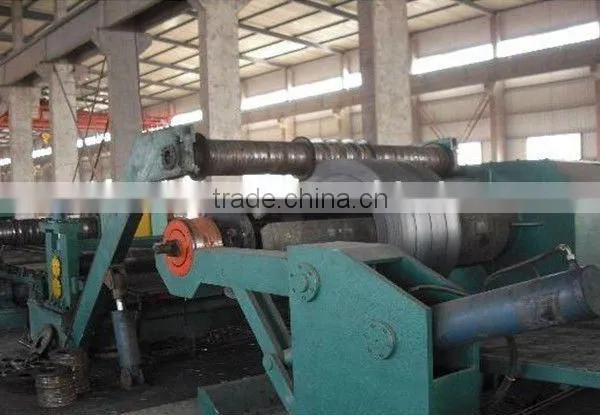

SLITTING AND RECOILING PRODUCTION LINESLITTING AND RECOILING PRODUCTION LINE
Specifications
1,Raw-material coil plate thickness: 1-3mm
2,Raw-material coil plate width: 800-2000mm
3,Raw-material coil plate I.D: 508,610mm
4,Raw-material coil plate O.D: 1200~1800mm
5,Raw-material coil plate weight: 25T
6,Raw-material coil plate quality: Q345 hot rolled low carbon steel plate
7,Shearing accuracy: Width Tolerance ±0.15mm
7,Slitting plate thickness: ≤6mm
8,Slitting nos: 6 mm thick plate ≤10
9,shaft Diameter of Slitting knife blade: 260,material 40C forge,tempering,IF quench
10,Slitting steel strip width:≥100mm
11,Size of slitting knife blade : 260×360×25mm
material 6CrW2Si,Hardness HRC56-58,provide with 22 pcs of slitting knife blades
12,Unit speed: 0-50m/min
13,Rewinding I.D: 610mm
14,Unit color: Buyer provide color code
15,Standard height of line: 800mm
16,Feeding direction: as per customer's requirment
