Product description
spring water bottling plant

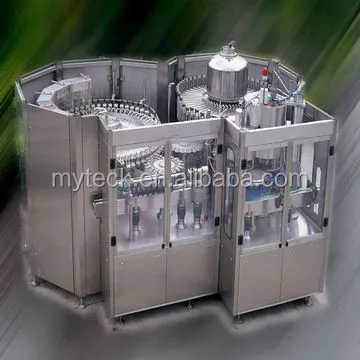

The machine can be 3 in 1 monobloc, including bottle rinsing, filling, capping. It can also be matched with other machines like carton packing machines, labeling machines and date printing machine and palletizer to form one whole line.
Main types of filling machine (monobloc machine):
Type | Specification (Washing Heads* Filling Heads* Capping Heads) | Capacity (BPH) Based on 0.5L | Capacity (BPH) Based on 1 L | Capacity (BPH) Based on 1.5 L |
06B-16*16*6 | 16x16x6 | 8000 | 5000 | 3500 |
06A-24*24*6 | 24x24x6 | 12000 | 7000 | 5000 |
08-32*32*8 | 32x32x8 | 15000 | 8500 | 6000 |
10C-40*40*10 | 40x40x10 | 18000 | 10000 | 7000 |
12A-40*40*12 | 40x40x12 | 20000 | 10000 | 7000 |
12B-48*48*12 | 48x48x12 | 22000 | 14000 | 10000 |
15D-60*50*15 | 60x50x15 | 24000 | 14000 | 10000 |
15-72*60*15 | 72x60x15 | 27000 | 18000 | 13000 |
18B-72*60*18 | 72x60x18 | 30000 | 18000 | 13000 |
Technical Specification:
1. Composition: Base, Rinser, Filler, Capper.
(P.S. : Associated equipment includies injection machine, bottle blowing machine, labeling machine, shrink wrapper, palletizing machine; bottle ink-jet coder, inspection lamp, air conveyor, bottles conveyor, carton conveyor, carton ink-jet coder, changeable parts for various bottles can be supplied.)
2. Drive Mode: Starwheel Driven (Bottles )
3. Control System: PLC

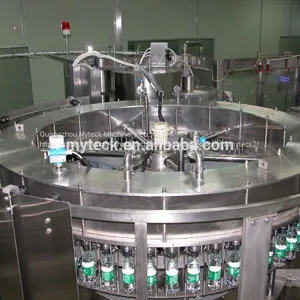

4. Rinser/ Filler/ Capper Monobloc Introduction:
a. Rinser: Rotary; Bottle grippers on starwheel and washing water nozzles equipped; CIP system; (Gripped bottle are turned over and mouth centred above the nozzle spraying water into the bottle, after which bottles are turned to original position.)
b. Filler: Removable filling valves made of food-grade stainless steel and erode-resistant seal ring;
c. Capper: Rotary; Consists of cap hopper, cap feeder and cam-actuating capping heads (Able to raise or lower by a follower riding on a shaped cam).
(P.S.: For different bottles, parts of the monobloc should be changed.)
Our service
We take care of your demand and your investment. We offer caring service and also good communication. The machine can be custom make according to customer's bottle size and shape and speed requirement. We design suitable solution for your application.
