Fully Automatic PET Strap Band Production Line / PET Strapping Roll Making Machine / PET Strap Machine
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Granules | |
| Plastic Processed | Other, PET | Screw Design | Single-screw | |
| Automatic Grade | automatic | Place of Origin | Jiangsu, China | |
| Brand Name | Horserider Machinery | Model Number | QS | |
| Voltage | 380V 50HZ OR CUSTOMIZE | Power(W) | 37kw-110kw | |
| Dimension(L*W*H) | 20*2*2.5m | Weight | 10ton | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
plastic strap extrusion linepet/pp strap strapping machine/production
1.good quality with good price
2.PLC control

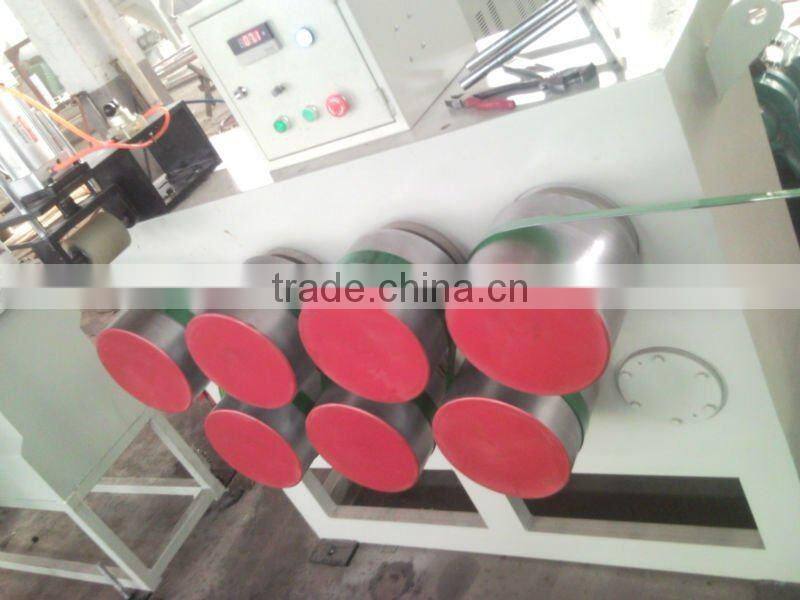

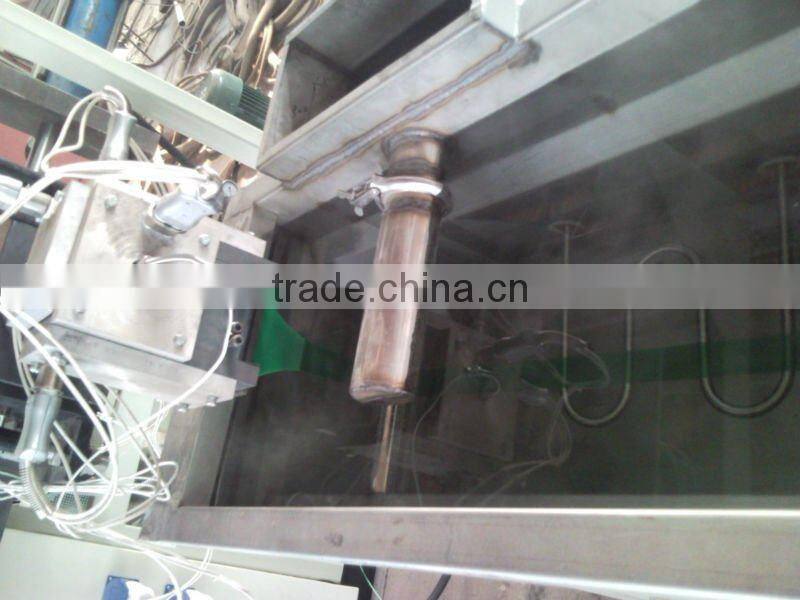

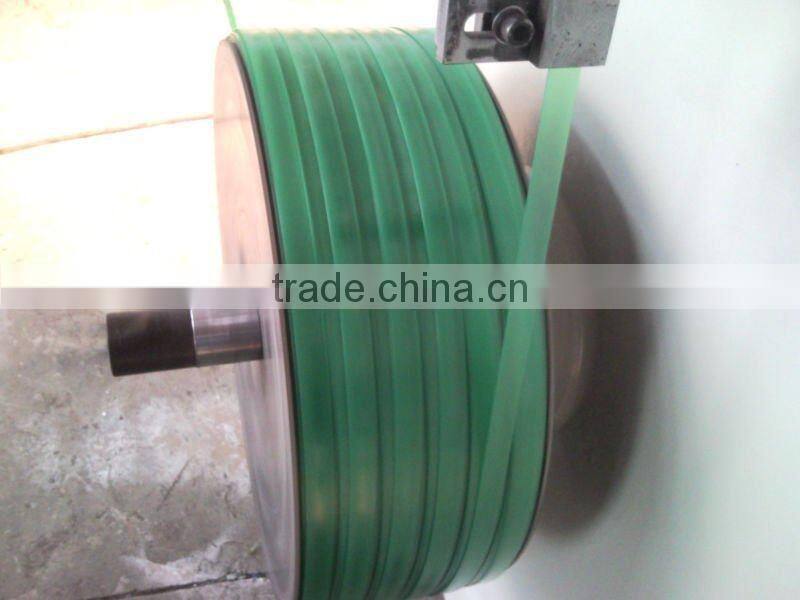

Fully Automatic PET Strap Band Production Line / PET strapping roll making machine / PET strap machine
Fully Automatic PET Strap Band Production Line / PET strapping roll making machine / PET strap machine
I. Production Specification:
Processing material: 100% recycled PET flakes or virgin PET (I.V ≥0.75)
Product width: 9-25mm
Strap thickness: 0.5-1.2mm
Quantity of extruded straps band: 4strands/ 2 strands/1 strands
Max output: 200kg/hr
Max Liner speed: 120m/min ×2
Power supply: 380V/3P/50Hz
Installed power: 280KW (production power: about 130KW )
Operators: 2-3
Overall dimension: 36m×6m×4.5m (36 meters to be overall dimensions including winders.)

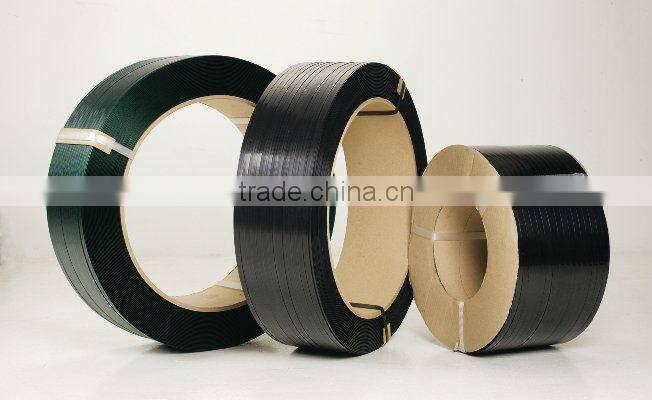

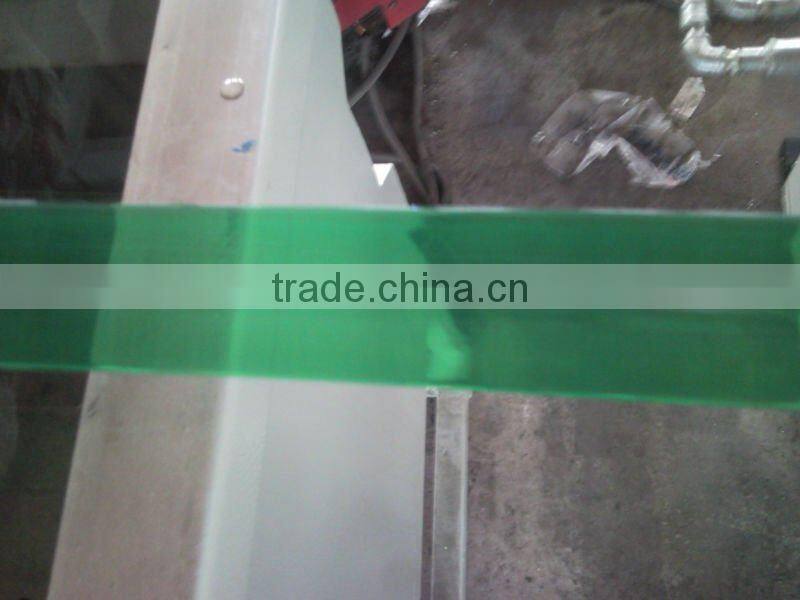

PET STRAPS EMBOSSED
Strap width (mm) | Strap thickness(mm) | Strap weight(gr/mt) | Nr of straps | Speed (mt/min) | Production(kg/h) |
9 | 0.46 | 5.55 | 4 | 120 | 160 |
9.2 | 0.52 | 6.41 | 4 | 120 | 185 |
10.5 | 0.61 | 8.58 | 4 | 97 | 200 |
10.8 | 0.51 | 7.38 | 4 | 112 | 200 |
10.8 | 0.63 | 9.12 | 4 | 91 | 200 |
10.8 | 0.76 | 11 | 4 | 75 | 200 |
11.1 | 0.52 | 7.73 | 4 | 107 | 200 |
11.9 | 0.44 | 7.02 | 4 | 118 | 200 |
11.9 | 0.52 | 8.29 | 4 | 100 | 200 |
11.9 | 0.71 | 11.32 | 4 | 73 | 200 |
15.6 | 0.76 | 15.89 | 2 | 104 | 200 |
15.6 | 0.9 | 18.81 | 2 | 88 | 200 |
15.6 | 1 | 20.9 | 2 | 80 | 200 |
15.6 | 1.02 | 21.32 | 2 | 78 | 200 |
19.05 | 0.89 | 22.72 | 2 | 73 | 200 |
19.05 | 1.27 | 32.42 | 2 | 51 | 200 |
25 | 1.02 | 34.17 | 1 | 98 | 200 |
Example of output parameters: (For reference only)
