Specifications
PVC PLC conical screw plastic extruder1.Well-plasticizing PLC control
nical screw
3.single screw
4.CE ISO
Zhangjiagang Horse Rider PLC PVC PE PP PPR plastic extruder extruding extrusion machine line
1.Application for PVC extruding machine
SJSZ series plastic conical twin-screw extruder is composed of barrel screw, gear transmission system, measurable feeding, vacuum deaerating, heating, cooling and electro control components. It is mainly used in plasticizing, extruding and forming PVC pipe, plate, sheet, film, profile, and granule etc.
2.Main technical parameter for PVC extruding machine :
Model/Specification |
SJZ-45 |
SJZ-55 |
SJZ-65 |
SJZ-80 |
SJZ-92 |
Screw diameter(mm) |
45/90 |
55/110 |
65/132 |
80/156 |
92/188 |
Screw speed(r/min) |
4-45.5 |
1-40 |
1-35 |
1-37 |
1-33 |
Screw effective length(mm) |
1070 |
1200 |
1441 |
1800 |
2500 |
Main motor(KW) |
15 |
30 |
37 |
55 |
110 |
Barrel Heating Power(KW) |
9.6 |
17.5 |
23 |
33 |
73.1 |
Production capacity(kg/h) |
100 |
180 |
250 |
400 |
800 |
Center height(mm) |
1000 |
1000 |
1000 |
1000 |
1100 |
Net weight(kg) |
3200 |
3500 |
4000 |
5000 |
7000 |
Dimension(L*W*H) |
3360*1290*2127 |
3620*1350*2157 |
4235*1520*2450 |
4750*1550*2460 |
4810*1600*2650 |
3.Specifications for PVC extruding machine :
With many years' experience in machine manufacture and our new technology,we developed SJSZ-45, 50, 55, 65, 68, 80, 92 conical twin-screw extruders. This series of extruders have excellent advantages of good compounding, high output,stable operation, great application range, long live span, and PVC powder direct processing. They can also be used in the production of pipes, profiles, sheetsand pelletizing with suitable die and accessory machines.Temperature adjusting equipment of the screw core: using heat stick type inner cycle cooling system or auto-adjusting temperature control type outer cycle cooling system.
Barrel cooling: wind cooling or outer cycle oil cooling.Temperature control instrument: RKC instrument or local made instrument.Speed :adjusting equipment of main machine: silicon control direct current stepless speed regulation or Japan's frequency conversion alternation current speed regulation or England's digital direct current speed regulationCustomers can make the choice according their own requirements.One year quality guarantee and timely sevice.
4.My company advantage at plastic extruding machin
---My company cultrue is "Dauntless Aspiration Dedicated and Innovation.
---All the important electrical elements use the world brand ,such as Schneider, Yaskawa,
Simens,Omron, ABB, etc...
---Material of screw and barrel: 38CrMoAlA Azotizing on surface 0.40.7mm
Rigidity: above 700 HV
---Steady function and long-time life , easy to handle.
---With computer control system ensure the machine running stable and good production.

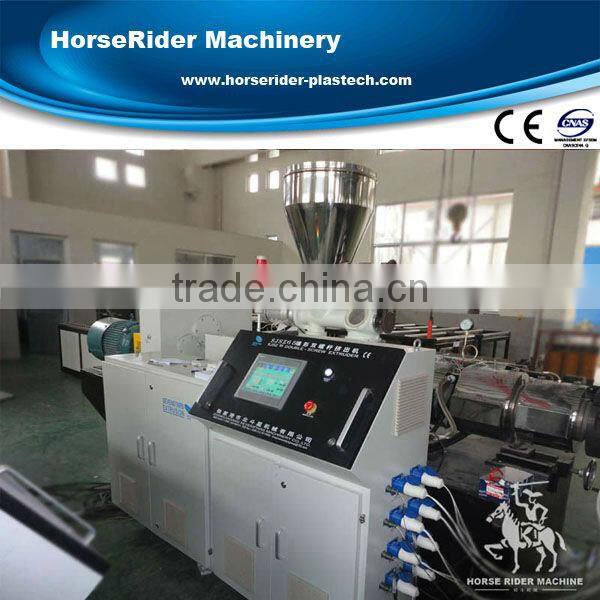

Plastic extruding machine
PLC touch screen panel

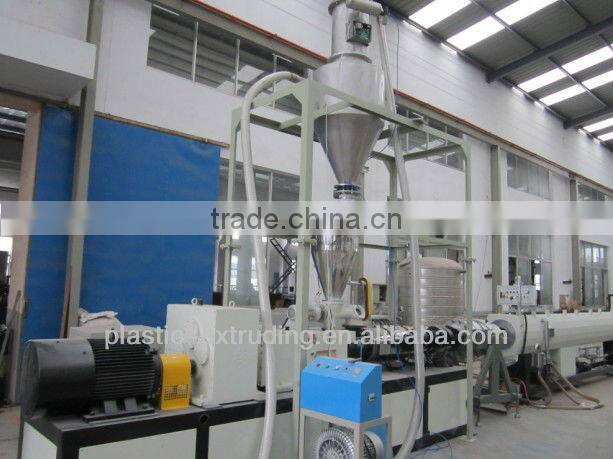

Vacuum feeding system for PVC powder
Welcome to send your inquiry, I will send you offer with detailed machine information,photo, video and the most competitive price very soon!
