Specifications
PVC foam board production line1.Product width:max 2000mm
2.Product thickness:3-25mm
3.High output
4.Low power consumpti
2013 New pvc foam board production line

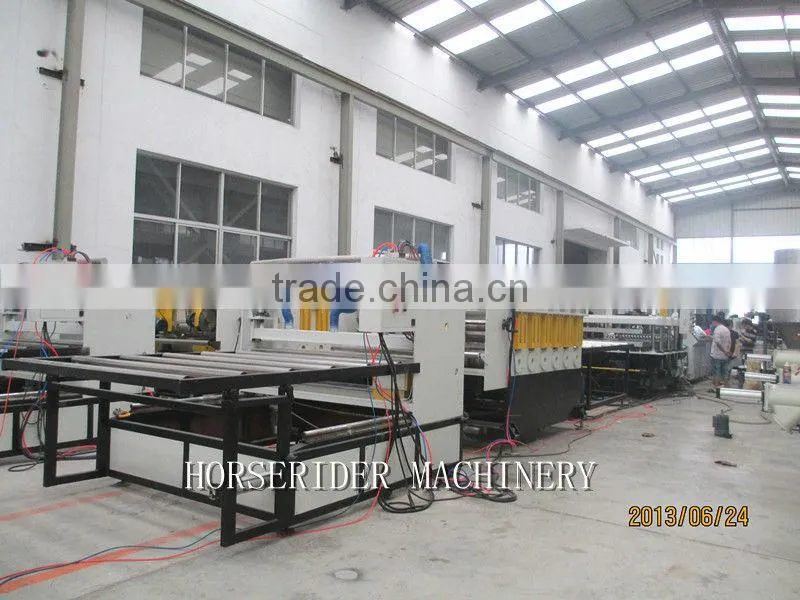

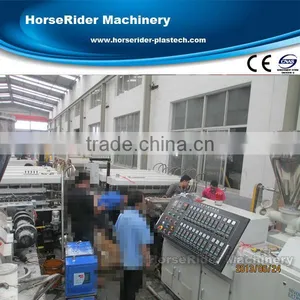

This series WPC PVC foam board production line adopt advanced frequency converting (ABB) and RKC temperature controller with wide adjustable scope and control the temperature accurately ,the mainly auxiliary equipments include the vacuum calibration platform , hauling machine , cutting machine and tipping rack etc. we also equip the large forced cooling equipment to be sure the good effect of the calibration , all the whole production line adopt the computer control system.

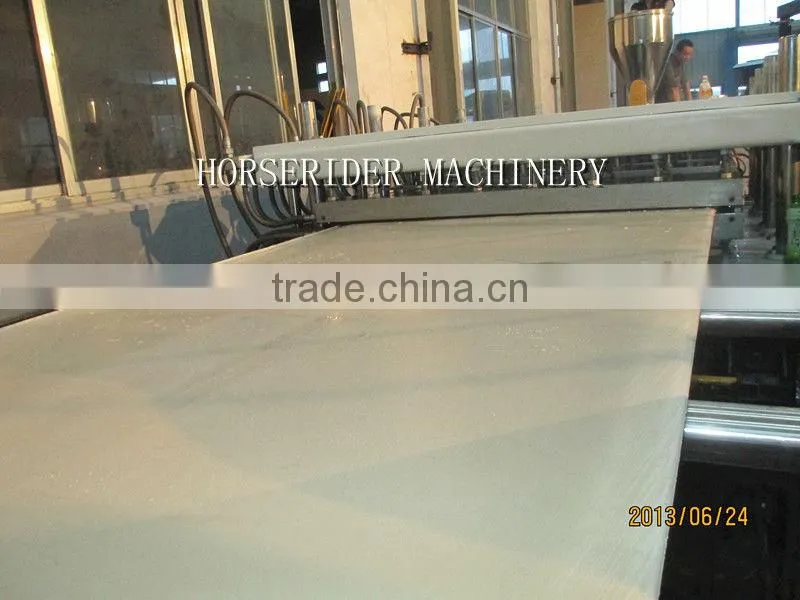

This PVC half crust foam board production line is designed to produce freely foam board , it has large production capacity , the maximum production capacity can reach 600 kg/h , high foaming rate , smooth & abrasion-resistance surface , the width of the board allow to reach 1830mm ,the thickness allow to reach 3-25mm.
Features of WPC PVC foam board production line
1. the specially designed screws ensure high plastitication rate

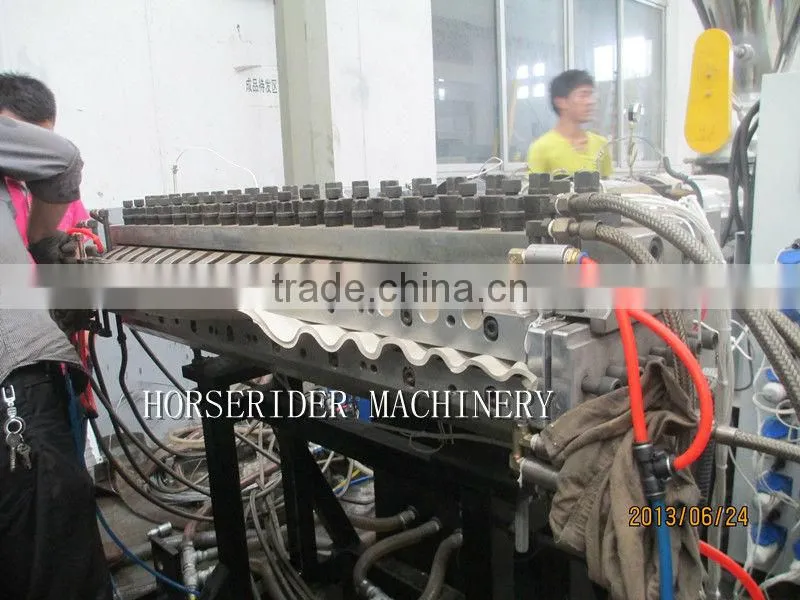

2. the precise temperature control and special moudles ensure precise thickness and flatness control
3. the thickness of sheet is recisely adjustable by screws & oil pressure wheels

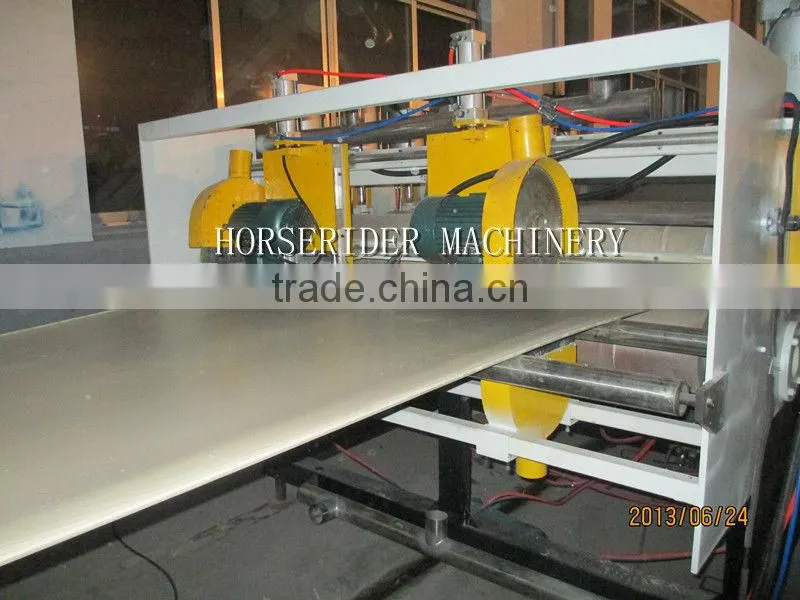

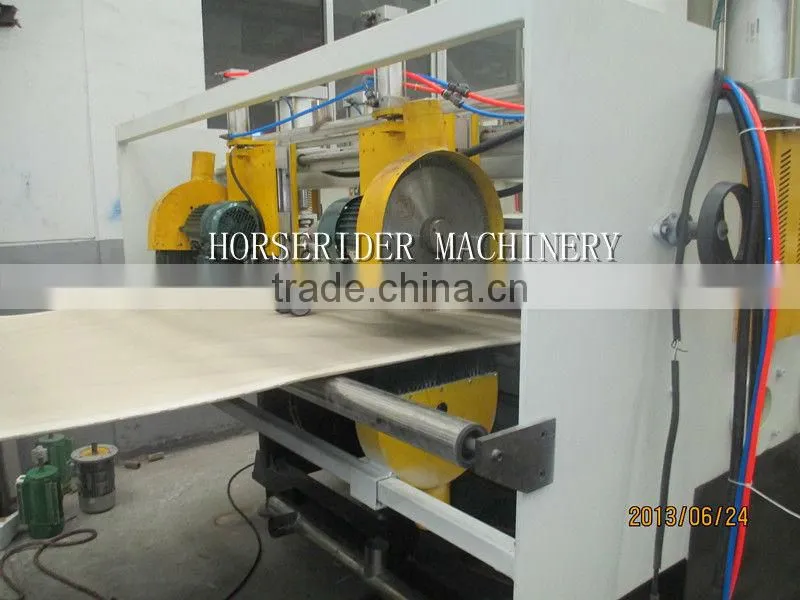

4. the machine equipped with meter cunter can set the length of board precisely .
5. through printing or sticking film on the surface , the board can be used in furniture & fixture, bathroom ,construction Industry ,decoration material ,advertising material ,automobile, etc
Technical parameter of WPC PVC foam board production line
| Model for extruder | unit | SJSZ80/156 | SJSZ92/188 |
| Screw dia. | mm | 80/156 | 92/188 |
| Screw quantity | Piece) | 2 | 2 |
| Rotational speed | r/min | 1-38 | 1-32.9 |
| Main extruder power | KW | 55 | 110 |
| Heating power (approx) | KW | 36 | 45 |
| Extrudsion output | kg/h | 100-400 | 400-500 |
| Model for assistant machine | BF600 | BF900 | |
| Max. product size | mm | 600 | 900 |
| Draw-off height | mm | 150 | 150 |
| Draw-off force | KN | 30 | 40 |
| Draw-off speed | m/s | 0-3 | 0-2.5 |
| Auxiliary machine’s total power | KW | 30 | 40 |
| Cooling water consume | m 3 /h | 9 | 12 |
| Compressed air pressure | Mpa | 0.6 | 0.6 |
key words
PVC Foam board Production Line/board /sheet extruder
pvc free foam board production line
PVC crust foam board production line
decorating PVC Half-crust Foamed Board Production Line
PVC free foamed sheet board decoration sheet production line
Provide WPC(Foamed) Wide board extrusion line
PVC Foaming Plastic-wood Profile & SheetPlastic Window & Door Profile Extrusion Line
PVC Surface Crusting Foamed Board / WPC Plate Production Line
PVC foam board making machine
