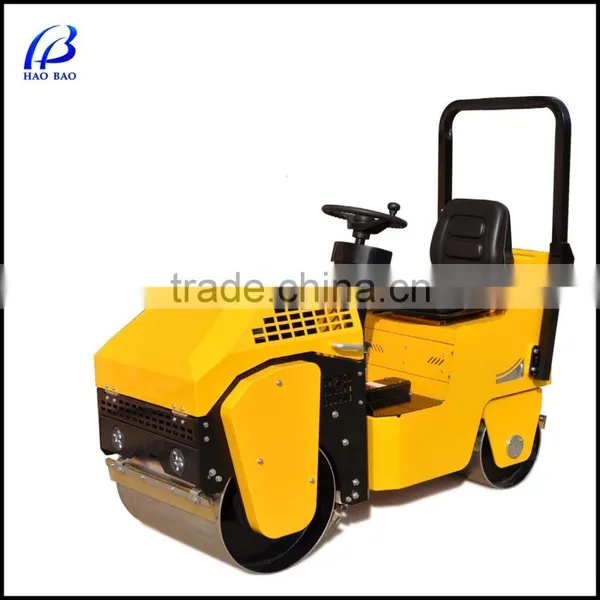

YL41/41C 1.5 ton road construction machinery diesel engine ride on double drum dynapac vibratory roller

Name: YL41/41C 1.5 ton road construction machinery diesel engine ride on double drum dynapac vibratory roller
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Ningbo/Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, Double Drum Roller, YL41/41C 1.5 ton on hydraulic double drum vibratory road roller	Static Linear Pressure:	15KN
Travel Speed:	0~4KM/H	Grade Ability:	25%	Place of Origin:	Zhejiang, China
Model Number:	YL41/41C	Dimension(LWH):	19609601580MM	Weight:	780KG
Certification:	CE	After-sales Service Provided:	Overseas third-party support available

Product Description

Specifications

1.Famous brand engine
2.Imported hydraulic motor
3.Front drum hydraulic turning,turning angle 15degree
4.Sling position

YL41/41C 1.5 ton road construction machinery diesel engine ride on double drum dynapac vibratory roller

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress

on track in the school and planish the lawn.

1. Famous brand engine, excellent performance, easy to start-up;

2. Can work within small area;

3. Imported hydraulic drive system, steppless speed, easy to change direction;

4. Half-wheel machineried turning wheel, convenient to swerve;

5. Electromagnetism clutch, easy to operate;

6. Comfortable driving seat;

7. NSK bearing and MITSUBOSHI V-belt;

8. Plastic treated, anti-rust, anti-corrosion and beautiful.

Type	RWYL41	RWYL41C
Run
Speed	0-4km/h
Turning radius	2500mm
Climbing capacity in theory	25%
Compaction
Static load forward/back	54/22.5N/cm	57/22.5N/cm
Nominal amplitude	0.5mm
Vibration frequency	70Hz
Exciting force	15KN
Water tank volume	30L
Working
Drive	Static hydraulic drive unit
Vibration	mechanical drive, electromagnetic clutch
Turning	Hand mechanical type
Engine
Model	HONDA, GX390	178F
Type	Gasoline engine, air cooled, 4stroke, OHV, single cylinder	Diesel engine, air cooled, 4stroke, vertical type, single cylinder
Power	13.0hp/3600rpm	6.0hp/3600rpm
Fuel tank volume	1.1L	1.7L
Lubricant L	313g/kWh	280g/kWh
Fuel consumption	6.5L	5.5L
Dimension
Width of steel wheel(Forward and back)	650/530mm
Diameter of steel wheel(Forward and back)	500/400mm
