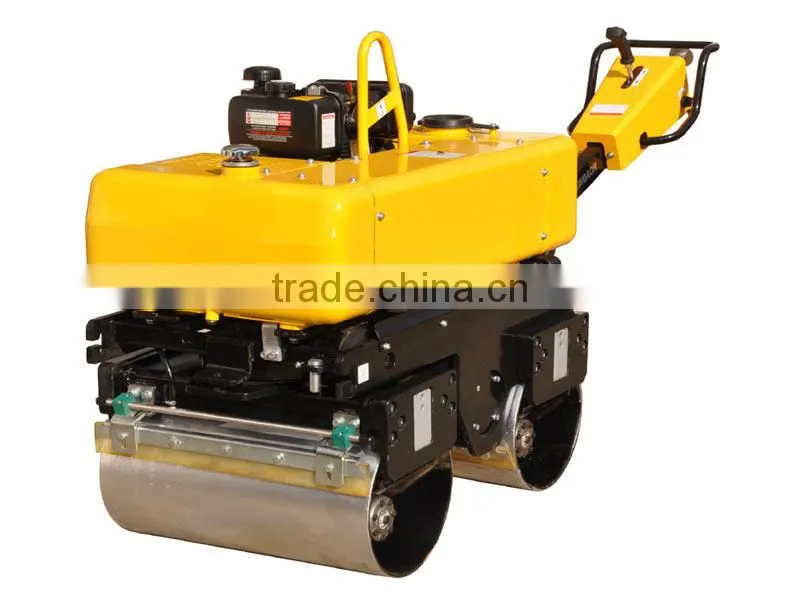

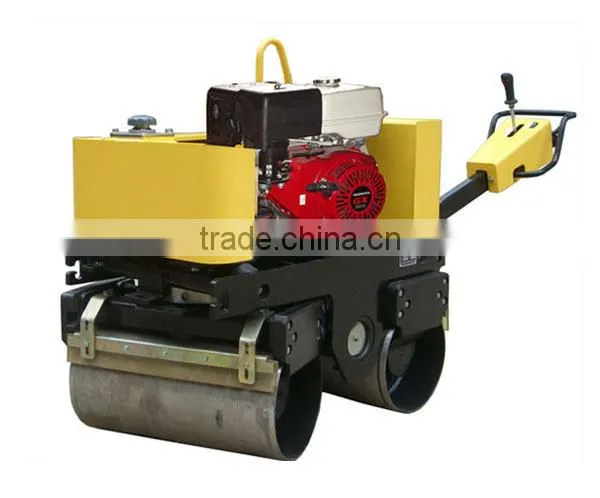

YL34 /34CGasoline Engine 65Hz 17kN 680mm Hydraulic Driven Walking Behind Double Steel Drum Vibratory Road Roller

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other, Double Drum Roller, 65Hz 680mm hydraulic driven double steel drum vibratory road roller

Static Linear Pressure:

17KN

Hangzhou Hexun Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Double Drum Roller, 65Hz 680mm hydraulic driven double steel drum vibratory road roller

Static Linear Pressure 17KN

Travel Speed 0~3.5KM/H

Grade Ability 25%

Model Number YL34/34C

Dimension(L*W*H) 1460*810*1910MM

Weight 820KG

Certification CE

After-sales Service Provided Overseas third-party support available

Specifications

1.Famous brand engine
2.Imported hydraulic motor
3.Front drum hydraulic turning,turning angle 15degree
4.Sling position

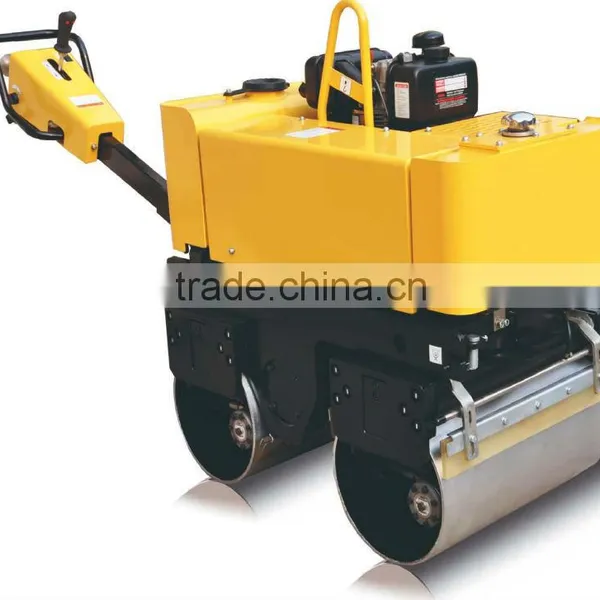

YL34/34C Walk behind double drums road roller

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to planish the lawn and playground.

*SAUER brand variable pump, fixed displacement motor, steppless speed, easy to change direction;

*Adjusting height mechanism of handrail, storage erectly, easy to transport;

*NSK bearing and MITSUBOSHI V-belt;

*Eletric starting, Electromagnetism clutch controlling vibration, easy to operate;

* Hydraulic system controlling Steering gear, efficient, convenient;

*Plastic treated, anti-rust, anti-corrosion and beautiful.

*Have passed CE certificate

Type	YL34	YL34C
Run
Speed	0—3.5km/h (Forward and back)
Turning angle	15°
Climbing capacity in theory	25%
Compaction
Static load forward/back	50.2/52.2N/cm	52/54N/cm
Nominal amplitude	0.5mm
Vibration frequency	60Hz
Exciting force	17kN
Water tank volume	25L
Working
Drive	Variable plunger pump ,constant displacement hydraulic motor
Vibration	Mechanical drive, electromagnetic clutch
Turning	Hydraulic ram
Stop braking	Mechanical lock bolt
Engine
Model	HONDA, GX390	KIPOR, 178F
Type	Gasoline engine, air cooled, 4stroke, OHV, single cylinder	Diesel engine, air cooled, 4stroke, vertical type, single cylinder
Power	13.0hp/3600rpm	6.0hp/3600rpm
Fuel tank volume	6.5L	5.5L
Lubricant L	1.1L	1.7L
Fuel consumption	313g/kWh	280g/kWh
Dimension
Width of steel wheel	650mm
Diameter of steel wheel	355mm
Tread	650mm
Total length(keep handrail level)	2460mm
Total width	680mm
Total height(keep handrail upright)	1800mm
Packing size	1460x810x1910mm
Weight
Working weight	820kg	840kg
