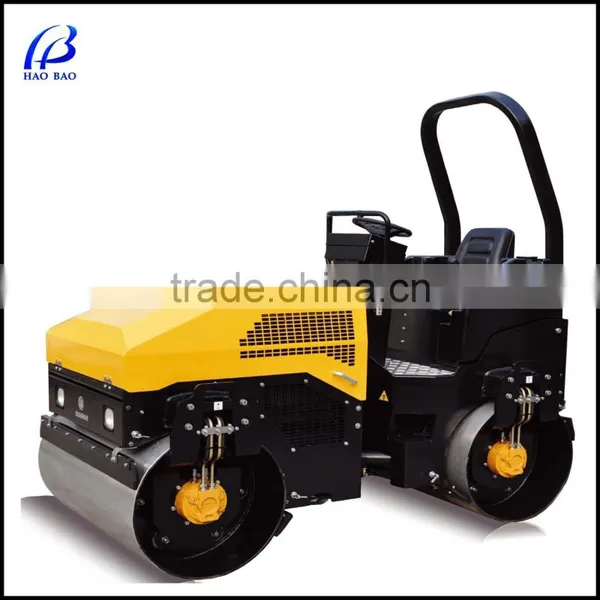

YL61C 2.5ton Small Ride on Road Roller for Sale With CE

Hangzhou Hexun Industry Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Other, Double Drum Roller, YL61C 2.5ton small ride on road roller for sale with CE

Static Linear Pressure:

2*30KN

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Double Drum Roller, YL61C 2.5ton small ride on road roller for sale with CE

Static Linear Pressure 2*30KN

Travel Speed 0~12KM/H

Grade Ability 40%

Place of Origin Zhejiang, China

Model Number YL61C

Dimension(L*W*H) 2565*1380*1970MM

Weight 2850KG

Certification CE

After-sales Service Provided Overseas third-party support available

Specifications

YL61C 2.5ton small ride on road roller for sale with CE
1.Famous brand engine
2.Imported hydraulic motor

Product Description

YL61C 2.5ton small ride on road roller for sale with CE

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.

This is the latest model of light duty rollers in the domestic.

1. Famous brand engine, excellent performance, easy to start-up;

2. Famous brand variable pump, radial plunger hydraulic motor, stepless speed, easy to change direction;

3. Single vibration and double vibration can be switched freely.

4. Hydraulic diversion, efficient and convenient;

5. The whole machine could be controlled by instrument panel;

6. NSK bearing, excellent performance;

7. Comfortable driving seat; With double forward/reversing operation handles, the machine can be easily operated along the edge.

8. Plastic treated, anti-rust, anti-corrosion and beautiful.

9. Passed CE certificate

Type	RWYL61C
Run
Speed	0-12km/h
Turning radius	2600mm
Climbing capacity in theory	40%
Compaction
Static load forward/back	118/110N/cm
Nominal amplitude	0.5mm
Vibration frequency	60Hz
Exciting force	2 x 30kN
Water tank volume	220L
Working
Drive	Variable plunger pump, radial plunger hydraulic motor
Vibration	Gear pump, Gear motor
Turning	Redirector, hydraulic ram
Stop braking	Parking brake
Engine
Model	Perkins 403D-15
Type	Diesel engine, water-cooled, 4stroke, three cylinder
Power	32.2hp/2800rpm
Fuel tank volume	40L
Lubricant L	3.8L
Fuel consumption	281g/kWh
Dimension
Width of steel wheel	1200mm
Diameter of steel wheel	700mm
Total length	2445mm
Total width	1280mm
Total height	2703mm
Tread	1730mm
Packing size	2565×1380×1970mm
Weight
Working weight	2850kg
