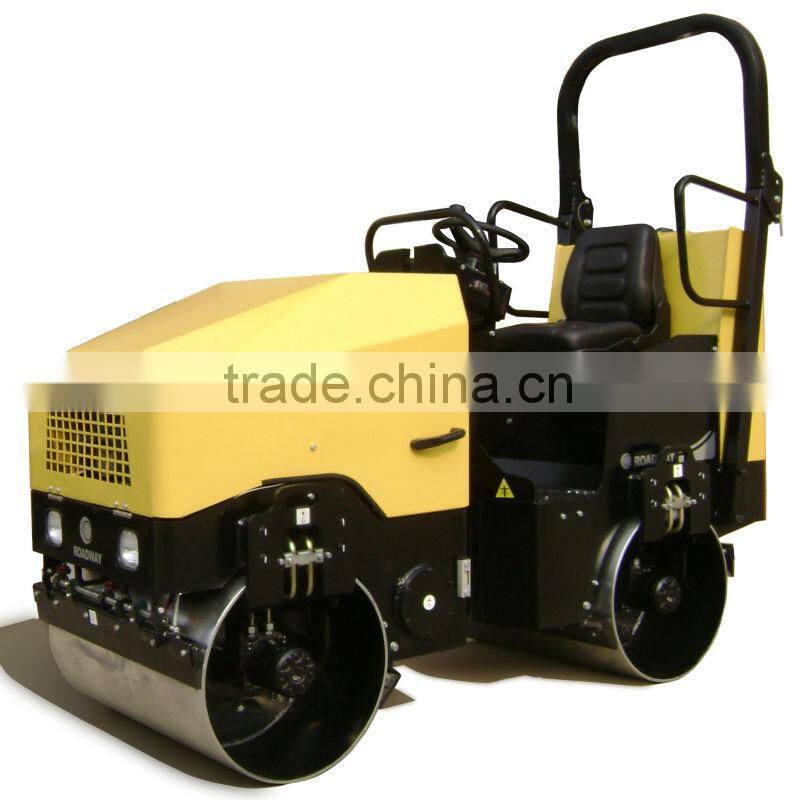

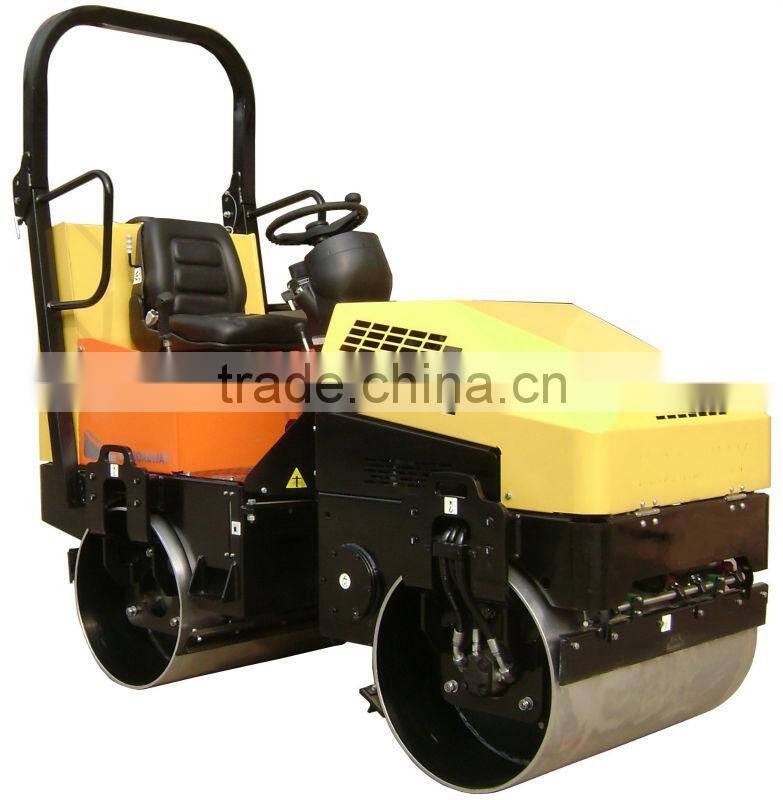

YL51C China CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine
- 1000 Set / Sets per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- China hydraulic vibrating road roller compactor machine
- Volvo Vibration Roller DD146HF
- Many small rollers sell cheap and durable second-hand vibrating rollers
- Cheap and fine used XCMG Dynapac, Ingeresoll, BOMAG, HAMM rollers for sale
- Used Shantui, Dynapac, Ingeresoll, HAMM, KOTAI, BOMAG rollers with good performance for sale
- The used XCMG, SANY, Changlin, Shantui, rollers with excellent control performance is for sale
Product Details
Condition: | New | Type: | Other, Double Drum Roller, CE Certificate new types Ride-On Hydraulic Double Drums Road Roller | Static Linear Pressure: | 17KN |
Travel Speed: | 0~8KM/H | Grade Ability: | 30% | Place of Origin: | Zhejiang, China |
Model Number: | YL51/51C | Dimension(L*W*H): | 2460*1140*1700MM | Weight: | 1480KG |
Certification: | CE | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
CE Certificate new types Ride-On Hydraulic Double Drums Road Roller1.Famous brand engine
2.Imported hydraulic motor
YL51/51C CE Certificate new types Ride-On Hydraulic Double Drums Road Roller with Honda engine The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.
1. Famous brand engine, excellent performance, easy to start-up;
2. Famous brand variable pump, fixed displacement motor, stepless speed, easy to change direction;
3. Hydraulic diversion, efficient and convenient;
4. The whole machine could be controlled by instrument panel;
5. NSK bearing, excellent performance;
6. Comfortable driving seat;
Type | RWYL51 | RWYL51C | |
Run | |||
Speed | 0-8km/h | ||
Turning radius | 1900mm | ||
Climbing capacity in theory | 30% | ||
Compaction | |||
Static load forward/back | 55/66N/cm | ||
Nominal amplitude | 0.5mm | ||
Vibration frequency | 65Hz | ||
Exciting force | 17kN | 21kN | |
Water tank volume | 150L | ||
Working | |||
Drive | Variable plunger pump , constant displacement hydraulic motor | ||
Vibration | Gear pump, Gear motor | ||
Turning | Redirector , hydraulic ram | ||
Stop braking | Hand draw and friction | ||
Engine | |||
Model | HONDA, GX630 | Perkins 403D-11 | |
Type | Gasoline engine, air cooled,4stroke,OHV,double cylinder | Diesel engine, water-cooled, 4stroke, three cylinder | |
Power | 20hp/3600rpm | 25hp/2800rpm | |
Fuel tank volume | 30L | ||
Lubricant L | 1.8L | 3.8L | |
Fuel consumption | 313g/kWh | 281g/kWh | |
Dimension |
| ||
Width of steel wheel | 900mm | ||
Diameter of steel wheel | 560mm | ||
Tread | 1340mm | 1420mm | |
Total length | 2270mm | 2350mm | |
Total width | 980mm | ||
Total height | 2250mm | ||
Packing size | 2460×1140×1700mm | ||
Weight | |||
Working weight | 1480kg | 1700kg |
