300kg Single Drum Vibratory Road Roller/Mechanical Single Drive Single Drum Vibratory Roller

Hangzhou Hexun Industry Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Double Drum Roller

Static Linear Pressure:

13.5KN

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Double Drum Roller

Static Linear Pressure 13.5KN

Travel Speed 0~2.8KM/H

Grade Ability 30%

Place of Origin Zhejiang, China

Model Number YL22/22C

Dimension(L*W*H) 1050*900*1200MM

Weight 295KG

Certification CE

After-sales Service Provided No overseas service provided

Specifications

1.Famous brand engine
2.Imported hydraulic motor
3.Front drum hydraulic turning,turning angle 15degree
4.Sling position

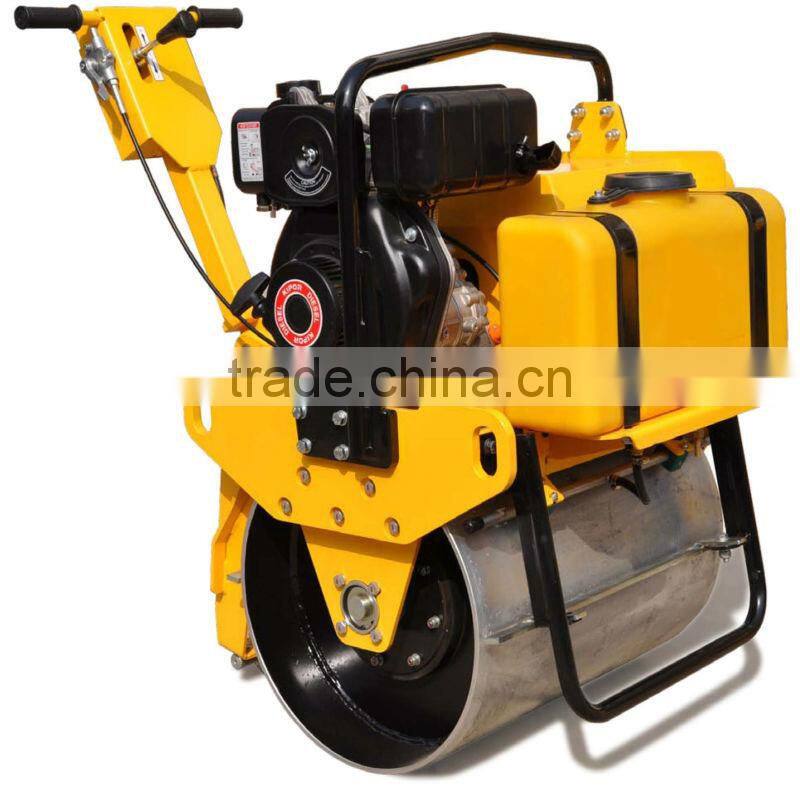

300kg Single Drum Vibratory Road Roller/Mechanical Single Drive Single Drum Vibratory Roller

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to planish the lawn.

HONDA engine, excellent performance, easy to start-up;

Can work within small area.

Imported hydraulic drive system, steppless speed, convenient to change direction;

Adjusting height mechanism of handrail, storage erectly, easy to transport;

NSK bearing and MITSUBOSHI V-belt;

Plastic treated, anti-rust, anti-corrosion and beautiful.

Type	RWYL21	RWYL22
Run
Speed	0-2.8km/h(Forward and back)
Climbing capacity in theory	30%
Compaction
Static load	45N/cm
Nominal amplitude	0.6mm
Vibration frequency	70Hz
Exciting force	13.5KN
Water tank volume	15L
Walking
Drive	Static hydraulic drive unit
Vibration	Mechanical drive, automatic centrifugal clutch	Mechanical drive, manual clutch
Engine
Model	HONDA GX160
Type	Gasoline engine, air cooled, 4stroke, OHV, single cylinder
Power	5.5hp/3600rpm
Oil tank volume	3.6L
Lubricant L	0.6L
Fuel consumption	313g/kWh
Dimension
Width of steel wheel	600mm
Diameter of steel wheel	450mm
Total length(keep handrail level)	1420mm
Total width	750mm
Total height(keep handrail upright)	1100mm
Packing size	1050x900x1200mm
Weight
Working weight	295kg
