Specifications

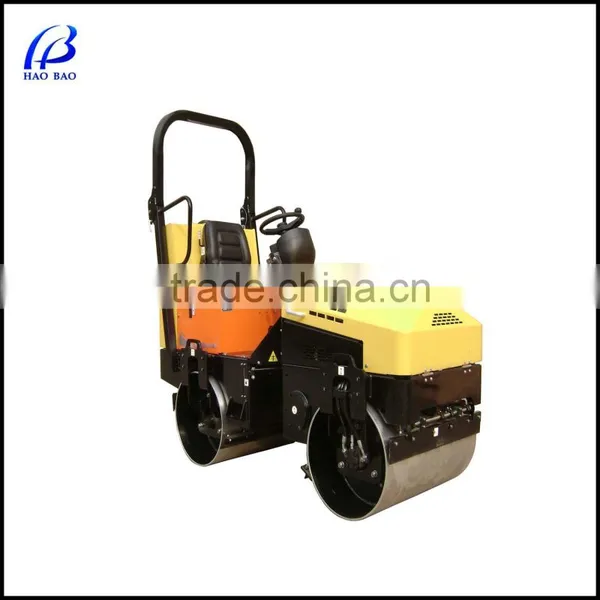

YL51C 1 tondouble drums electric start hydraulic vibratory road roller1.Famous brand engine
2.Imported hydraulic motor
YL51C 1 tondouble drums electric start hydraulic vibratory road roller The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to compress on track in the school and planish the lawn.
1. Famous brand engine, excellent performance, easy to start-up;
2. Famous brand variable pump, fixed displacement motor, stepless speed, easy to change direction;
3. Hydraulic diversion, efficient and convenient;
4. The whole machine could be controlled by instrument panel;
5. NSK bearing, excellent performance;
6. Comfortable driving seat;
Type |
RWYL51 |
RWYL51C |
|
Run |
|||
Speed |
0-8km/h |
||
Turning radius |
1900mm |
||
Climbing capacity in theory |
30% |
||
Compaction |
|||
Static load forward/back |
55/66N/cm |
||
Nominal amplitude |
0.5mm |
||
Vibration frequency |
65Hz |
||
Exciting force |
17kN |
21kN |
|
Water tank volume |
150L |
||
Working |
|||
Drive |
Variable plunger pump , constant displacement hydraulic motor |
||
Vibration |
Gear pump, Gear motor |
||
Turning |
Redirector , hydraulic ram |
||
Stop braking |
Hand draw and friction |
||
Engine |
|||
Model |
HONDA, GX630 |
Perkins 403D-11 |
|
Type |
Gasoline engine, air cooled,4stroke,OHV,double cylinder |
Diesel engine, water-cooled, 4stroke, three cylinder |
|
Power |
20hp/3600rpm |
25hp/2800rpm |
|
Fuel tank volume |
30L |
||
Lubricant L |
1.8L |
3.8L |
|
Fuel consumption |
313g/kWh |
281g/kWh |
|
Dimension |
|
||
Width of steel wheel |
900mm |
||
Diameter of steel wheel |
560mm |
||
Tread |
1340mm |
1420mm |
|
Total length |
2270mm |
2350mm |
|
Total width |
980mm |
||
Total height |
2250mm |
||
Packing size |
2460×1140×1700mm |
||
Weight |
|||
Working weight |
1480kg |
1700kg |
|
