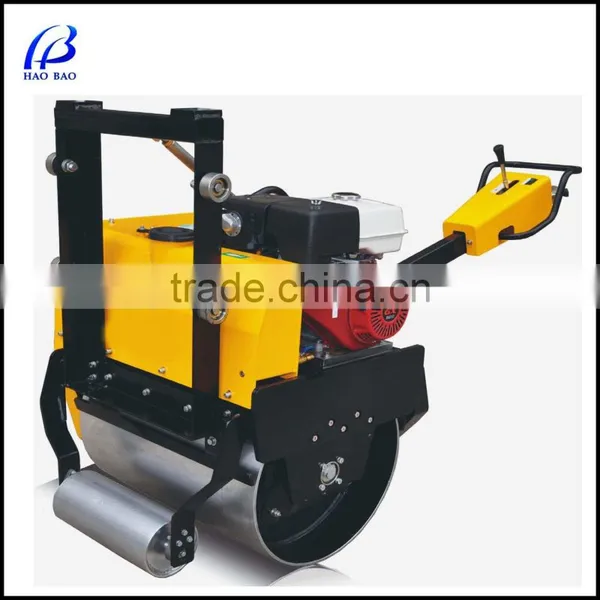

YL24 /24C New 9hp Single Steel Drum Road Roller

Hangzhou Hexun Industry Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Single Drum Roller

Static Linear Pressure:

16KN

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Single Drum Roller

Static Linear Pressure 16KN

Travel Speed 0~3.0KM/H

Grade Ability 30%

Model Number YL24/24C

Dimension(L*W*H) 1160*960*2050MM

Weight 520KG

Certification CE

After-sales Service Provided Overseas third-party support available

Specifications

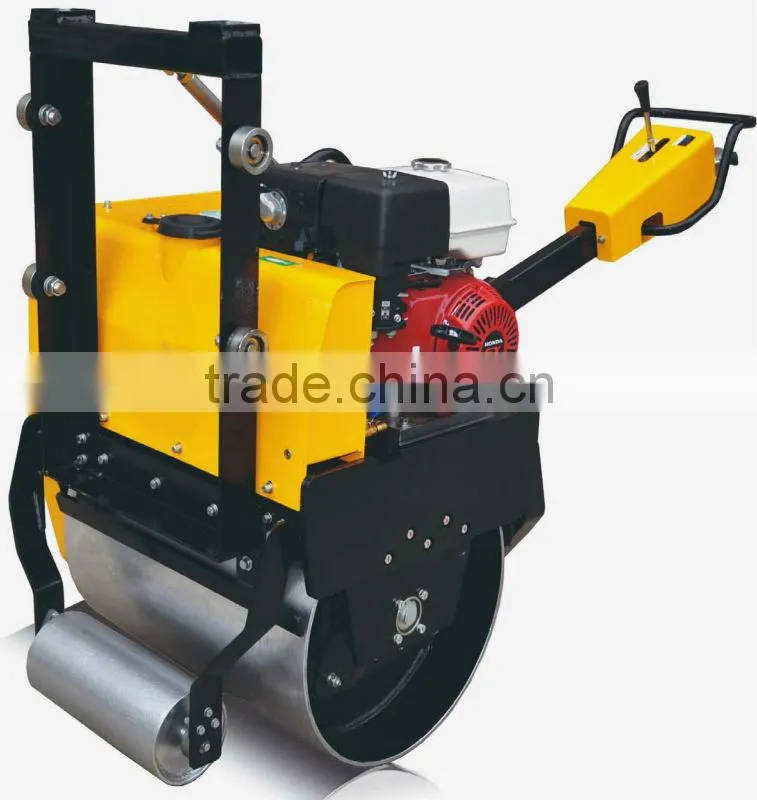

YL24 /24C new 9hp single steel drum road roller
1.Imported hydraulic motor
2.Front drum hydraulic turning,

YL24 /24C new 9hp single steel drum road roller

The machine is mainly used to compress on the asphalt, sand soil and gravel. It is also used to planish

the lawn.

HONDA/ KIPOR engine, excellent performance, easy to start-up;

Can work within small area.

Imported hydraulic drive system, steppless speed, convenient to change direction;

Adjusting height mechanism of handrail, storage erectly, easy to transport;

NSK bearing and MITSUBOSHI V-belt;

Plastic treated, anti-rust, anti-corrosion and beautiful.

Type	RWYL24	RWYL24C
Run
Speed	0-3.0km/h(Forward and back)
Climbing capacity in theory	30%
Compaction
Static load	62N/cm	65N/cm
Nominal amplitude	0.5mm
Vibration frequency	70Hz
Exciting force	16kN
Water tank volume	20 L
Working
Drive	Static hydraulic drive unit
Vibration	Mechanical drive, electromagnetic clutch
Engine
Model	HONDA,GX390	178F
Type	Gasoline engine, air cooled, 4stroke, OHV, single cylinder	Diesel engine, air cooled, 4stroke, vertical type, single cylinder
Power	13.0hp/3600rpm	6.0hp/3600rpm
Fuel tank volume	6.5L	5.5L
Lubricant L	1.1L	1.7L
Fuel consumption	313g/kWh	280g/kWh
Dimension
Width of steel wheel	715mm
Diameter of steel wheel	560mm
Total length(keep handrail level)	2145mm
Total width	840mm
Total height(keep handrail upright)	1820mm
Packing size	1160x960x2050mm
Weight
Working weight	520kg	542kg
