More Professional JZK-50/50 Vacuum Brick Machine
- Shanghai Qingdao
- T/T Credit Card
You May Like
-
2015 Hot Selling Automatic Concrete Block Machine
-
2014 China Kefan Selling GD Series Box-type Feeding Machine
-
High Quality Brick Molds Made in China
-
Professional 10-15 Burning-free Brick Machine Manufacturer With Government Authorized
-
Kefan Supply the Lz-01 Vertical Automatic Strip Cutting Machine
-
2013 Best-selling JZK-25 Vacuum Brick Machine Made in Professional Manufacturer
Product Details
| Condition | New | Type | Other, Vacuum Brick Machine | |
| Brick Raw Material | Other, clay, cement, concrete, etc | Processing | Brick Molding Machine | |
| Method | Vacuum Extruder | Automatic | Yes | |
| Capacity | reliable | Place of Origin | Henan, China | |
| Brand Name | Henan Kefan | Model Number | JZK-50/50 | |
| Voltage | industrial voltage | Power | 55-132kw | |
| Dimension(L*W*H) | 6572*2054*2504mm | Certification | ISO/ CE/ BV | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

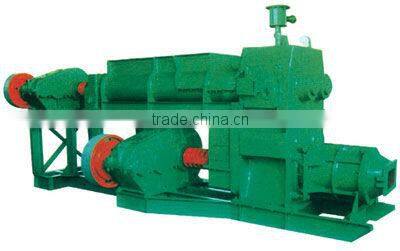

More professional JZK-50/50 Vacuum Brick Machine

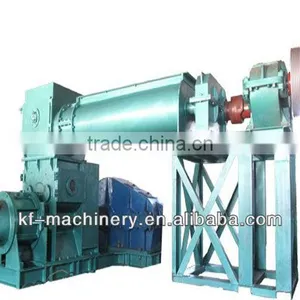

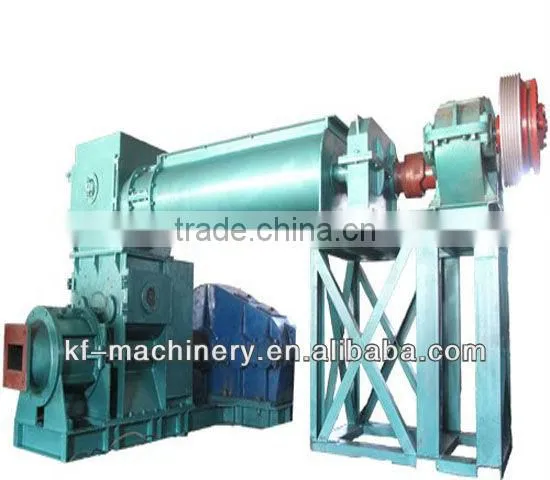

JZK-50/50 Vacuum Brick Machine
JZK-50/50 Vacuum Brick Machine advantages:
1. It has the features as novel structure, advanced technology, high squeezing pressure, high yield and high vacuum degree and it adopts the pneumatic clutch control which is sensitive, simple and reliable.
2. This machine can transfer the waste materials and can reduce the energy consumption so that it has obvious economic benefit and social benefit.
JZK-50/50 Vacuum Brick Machine charateristics:
1. This machine is one of the best seller mode in the vacuum brick machine market. The machine is suitable for producing hollow bricks with various hollow type. It is suitable to many kinds of raw materials such as coal-stone, rock , coal ash ,clay and so on.
2. The material of noose is a wear-resist material and has been handled by metal power spray technology. The front stirring axle, the big axle and the upper or the down bodies all have been handled by quench.
3. The surface of the gear are made hard. The clutch uses screw to prolong the life.
Main technical parameters:
| Articles | Measuring units | JZK50/50Q all steel series double degree vacuum Squeezing machine |
| yield | Standard blocks/Hour | 13000-15000 |
| Reamer diameter | mm | 500 |
| Maximum squeezing pressure | M Pa | 3.0 |
| Degree of vacuum | M Pa | ≤92% |
| power | KW | The upper body 55kw,the down body 132kw |
| Overall dimensions | MM | 6572×2054×2504 |
| weight | Ton | 30 |
