2015 Hot Selling Automatic Concrete Block Machine
US$ 2,300 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, multi-function block making machine
Brick Raw Material:
Other, clay, cement, concrete, etc
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2014 China Kefan Selling GD Series Box-type Feeding MachineUS$ 1,000 - 99,999MOQ: 1 Set -
High Quality Brick Molds Made in ChinaUS$ 1,000 - 99,999MOQ: 1 Set
-
Professional 10-15 Burning-free Brick Machine Manufacturer With Government AuthorizedUS$ 1,000 - 99,999MOQ: 1 Set
-
Kefan Supply the Lz-01 Vertical Automatic Strip Cutting MachineUS$ 1,000 - 999,999MOQ: 1 Set
-
2013 Best-selling JZK-25 Vacuum Brick Machine Made in Professional ManufacturerUS$ 1,000 - 99,999MOQ: 1 Set
Condition
New
Type
Other, multi-function block making machine
Brick Raw Material
Other, clay, cement, concrete, etc
Processing
Brick Production Line
Method
Hydraulic Pressure
Automatic
Yes
Capacity
reliable
Place of Origin
Henan, China
Brand Name
Henan Kefan
Model Number
QTJ4-35
Voltage
industrial voltage
Power
20kw
Dimension(L*W*H)
4000*3500*2300mm
Certification
ISO/ CE/ BV
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

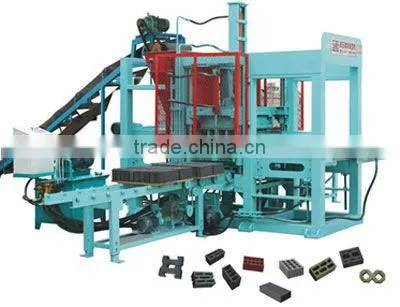

2015 hot selling automatic concrete block machine
Feature of Brick Making Machine:
According to the demand of new and old clients, this kind of machine is the latest new type multi-function block making machine which is on the basic of practice from the former blocking making equipment. By changing the model, it can produce various road tiles, tail tiles, pavement tiles, water permeable bricks, Dutch bricks as well as hollow blocks, cement standard bricks, multi-hole bricks,slope protection bricks,border stone, etc. It can truly achieve one machine with multiple functions so as to meet different needs of the majority of users.
Main Technical Parameters:
| Mode | QT4-35 |
| Molding cycle | 20-30/S |
| Vibration frequency | 4500-5100 Time/Minute |
| Magnetic resonance force | ~22KN |
| Vibrator power | Y132S1-2 N=6KW |
| Pallet size | 880*580*20mm |
| Top cylinder | 80*300 Rod diameter 40 |
| Boundary cylinder | 63*250 Rod diameter 32 |
| Hydraulic system pressure | 6.3-9mpa |
| Actuating stock force | 22KN |
| Installed capacity | 20kw |
| weight | 6.9T |
| Overall dimensions | 4000*3500*2300mm |
Theoretical Output Table:
| Mode | name | Blocks certifications | Block /Plate | Block /8Hour |
| QT4-35 | Block | 390×190×190 | 4 | 5000 |
| Hollow Brick | 200*100*60 | 14 | 15000-25000 | 15000-25000 |
| Standard Brick | 2408*115*53 | 26 | 35000-40000 | 35000-40000 |
