Home > Products > Sand Making Machine > Hot sale spiral screw conveyor with best price
Hot sale spiral screw conveyor with best price
- 100 Set / Sets per Month
- nearest port
- T/T Credit Card
Product Details
Type: | Screw Conveyor | Material: | Other, Carbon steel | ||
Material Feature: | Heat Resistant | Structure: | Chain Conveyor | Load Capacity: | depend on model |
Place of Origin: | Henan, China | Brand Name: | Henan Kefan | Model Number: | LS series |
Voltage: | 380v | Power(W): | depend on model | Dimension(L*W*H): | depend on model |
Certification: | BV/CE/ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

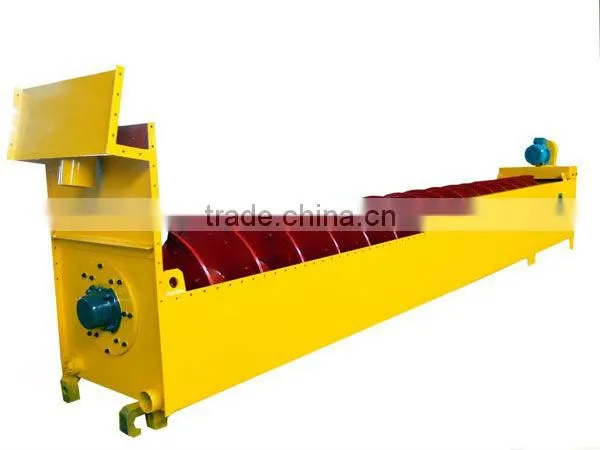

Introduction of spiral screw conveyor :
This machine is suitable for conveying all kinds of powder, granular and small lump materials, such as coal, gravel, lump coal,sand, cement and cereals. It does not apply to deliver perishable, viscous, easy caking materials.The screw conveyor is commonly known as the auger, it is a transportation equipment and widely used in the minerals, feed, grain, construction.The screw conveyor has simple structure, low making cost,strong sealing, safe and convenient operation. So it is widely used in chemical industry, building materials, metallurgy, food and other departments, in the case of the inclination angle β <20 °, it can transport powder, granular and small pieces of material,whose viscosity is not strong, non-perishable, According to the displacement direction ,the screw conveyor can be divided into two types:the horizontal screw conveyor and the vertical screw conveyor.
Characters of spiral screw conveyor :
Simple structure, small cross section size, good sealing, reliable, low cost, easy to loading and unloading in intermediate , conveying direction can also be reverse and convey the opposite two directions at the same time. It can also do stirring, mixing, heating and cooling operations in transport process . it can adjust material flow by the loading gate,but it is unapt to transport perishable, viscous, easy to agglomerate, and large pieces of material. The material is easily broken ,screw and trough is easy to wear in the transportation process.Unit power is bigger to maintain sealing of the material and the adequate clearance between screw and spiral trough.
Main parameters of LS / GX spiral screw conveyor :
Specification | LS100 | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 | LS1000 | LS1250 | |
Screw diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | |
Pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 | |
Technical parameter | n | 140 | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
Q | 2.2 | 8 | 14 | 24 | 34 | 64 | 100 | 145 | 208 | 300 | 388 | |
n | 112 | 90 | 80 | 71 | 63 | 56 | 50 | 40 | 32 | 25 | 20 | |
Q | 1.7 | 7 | 12 | 20 | 26 | 52 | 80 | 116 | 165 | 230 | 320 | |
n | 90 | 71 | 63 | 56 | 50 | 45 | 40 | 32 | 25 | 20 | 16 | |
Q | 1.4 | 6 | 10 | 16 | 21 | 41 | 64 | 94 | 130 | 180 | 260 | |
n | 71 | 50 | 50 | 45 | 40 | 36 | 32 | 25 | 20 | 16 | 13 | |
Q | 1.1 | 4 | 7 | 13 | 16 | 34 | 52 | 80 | 110 | 150 | 200 |
Screw diameter(mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
Screw pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
Rotate speed (r/min) Quantity delivered(m3/h) | 140 2.2 | 112 8 | 100 14 | 90 24 | 80 34 | 71 64 | 63 100 | 50 145 | 40 208 | 32 300 | 25 388 |
Rotate speed (r/min) Quantity delivered(m3/h) | 112 1.7 | 90 7 | 80 12 | 71 20 | 63 26 | 56 52 | 50 80 | 40 116 | 32 165 | 25 230 | 20 320 |
Rotate speed (r/min) Quantity delivered(m3/h) | 90 1.4 | 71 6 | 63 10 | 56 16 | 50 21 | 45 41 | 40 64 | 32 94 | 25 130 | 20 180 | 16 260 |
Rotate speed (r/min) Quantity delivered(m3/h) | 71 1.1 | 50 4 | 50 7 | 45 13 | 40 16 | 36 34 | 32 52 | 25 80 | 20 110 | 16 150 | 13 200 |
