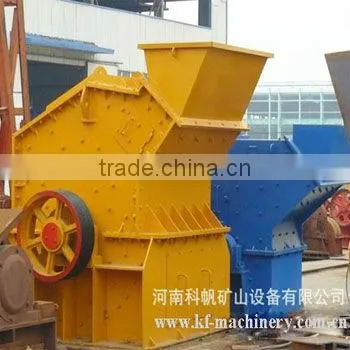

New type quartz sand maker equipment with ISO
- 100 Set / Sets per Month
- nearest port
- T/T Credit Card
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Type: | Other, sand maker | Application: | mining industry,etc | ||
Motor Type: | AC Motor | Power(W): | 37-45 kw | Capacity(t/h): | 20-310t/h |
Place of Origin: | Henan, China | Brand Name: | Kefan | Model Number: | PCX |
Dimension(L*W*H): | 800*400 mm | Weight: | depend on model | Certification: | BV/CE/ISO |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Brief introduction of quartz sand maker:
Combining the standard of mechanism sand at home and user’s requirements and recognized extent to the sands., Fine Crusher is a new type of sand- making equipment. It is suitable to customers of low investment and short- term efficiency.
Application of quartz sand maker :
Fine Crusher is mainly suitable for artificial sand industry and crushing of medium- hardness rock. It can also be applied to intermediate crushing in mining and chemical industry etc.
Features of quartz sand maker :
1. Small- size particle
2. Less dust
3. Even particle
4. Large production capacity
5. Long life hammer
6. Small power
7. Simple structure
8. Steady running and easy to maintain etc.
9. It can simplify tertiary crushing into secondary crushing.
Advantages of quartz sand maker :
1. The scale of investment is lower than the same traditional technique and equipment by 50%
2. The output capacity higher than traditional sandmaking than 40%. (Take the limestone as example: sand proportion size≤ 5mm is beyond 90% during production.)
3. Lower Cost than the same scale traditional sand maker in long term running.
4. It is widely used in mechanism sand materials, cement, refractory and metallurgy industry.
Specifications of quartz sand maker:
PCX Crusher | Model | Feed opening (mm) | Feed Size (mm) | Discharge port size (mm) | Discharge gap adjustment (mm) | Production Capacity (t/h) | Power (kw) | |
Cement Clinker | Limestone | |||||||
Rotor width (mm) | 800×400 | 400×185 | 120 | ≤5 | 5-20 | 20-30 | 30-45 | 37-45 |
800×600 | 500×250 | 180 | ≤5 | 5-20 | 35-40 | 40-55 | 45-55 | |
800×800 | 550×330 | 180 | ≤5 | 5-20 | 35-45 | 55-65 | 45-55 | |
1010×1010 | 1000×350 | 180 | ≤5 | 5-20 | 45-55 | 60-75 | 55-75 | |
1200×1000 | 1200×400 | 180 | ≤5 | 5-20 | 80-110 | 60-100 | 90-110 | |
1200×1200 | 1200×450 | 180 | ≤5 | 5-20 | 100-110 | 90-100 | 110-132 | |
1400×1400 | 1500×500 | 190 | ≤5 | 5-20 | 100-150 | 100-150 | 160 | |
1600×1600 | 1600×550 | 190 | ≤5 | 5-20 | 170-210 | 190-250 | 250 | |
1800×1800 | 1800×800 | 190 | ≤5 | 5-20 | 250-270 | 280-310 | 315 |
Any change of technology data shall not be noticed additionally.
