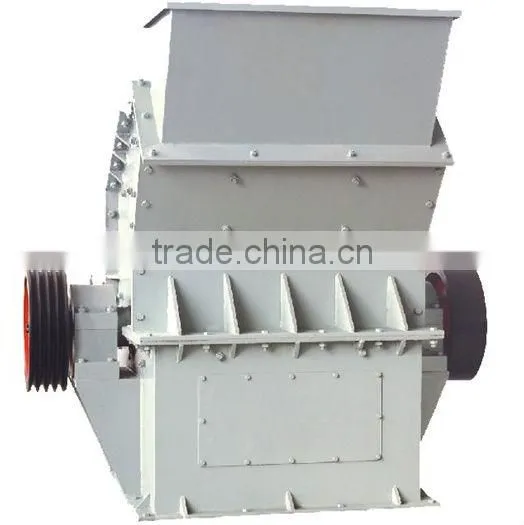

Saving-energy sand maker manufacture is the new type of high efficiency sand maker designed by our company senior sand making project according to the user's specific usage and customer feedback,combine the original sand making machine. This type of sand maker is also named as fine crusher.
Saving-energy sand maker manufacture has many advantages:small discharging particle size,uniform grain type,large production capacity,long life of hammers(40,000 tons or more),small matched power,change third crushing into second crushing,simple process,simple structure,easy maintenance,smooth running and other advantages.
It is widely used in mechanism sand stone,cement,matallurgy,glass and other industries.
Saving-energy sand maker technical parameters:
Saving-energy sand maker | Rotor width(mm) | Rotor width (mm) | Rotor width (mm) | Rotor width (mm) | Rotor width (mm) |
Model specification | 800×400 | 800×600 | 800×800 | 1010×1010 | 1200×1000 |
Feeding port size(mm) | 400×185 | 500×250 | 550×330 | 1000×350 | 1200×400 |
Feeding size(mm) | <120 | <180 | <180 | <180 | <180 |
Discharging size(mm) | <5 | <5 | <5 | <5 | <5 |
stitch width adjustment | 5-20 | 5-20 | 5-20 | 5-20 | 5-20 |
Cement clinker (T/H) | 20-30 | 35-40 | 35-45 | 45-55 | 80-110 |
Limestone(T/H) | 35-45 | 45-55 | 55-65 | 65-75 | 50-100 |
Matched power(KW) | 37-45 | 45-55 | 45-55 | 55-75 | 100-110 |
