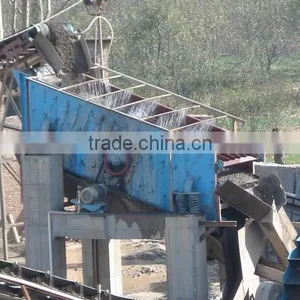

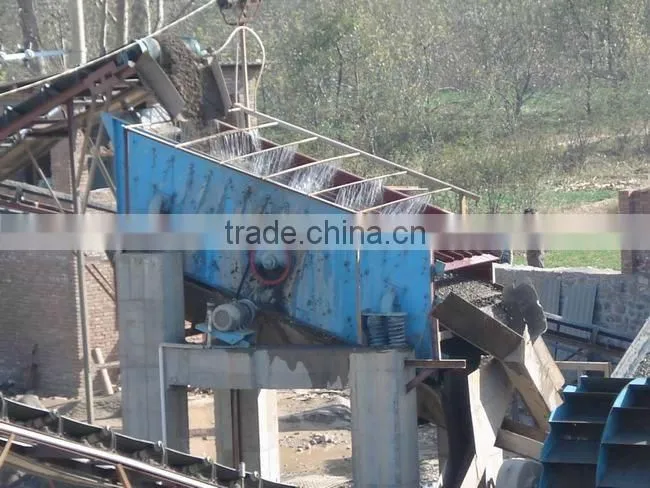

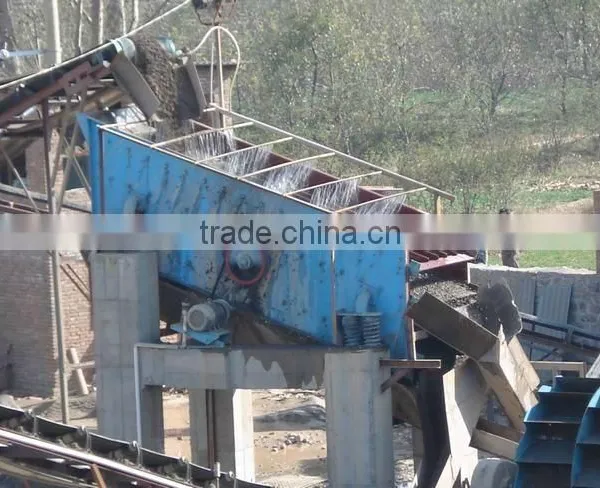

Stone Circular Vibrating Sieve Machine for Sale
- nearest port
- T/T Credit Card
You May Like
-
Mining Circular Vibrating Sieve Manufacturer in China
-
High Efficiency Linear Vibrator Screen Equipment for Sale
-
Mining Linear Vibrating Screen Machine of Kefan for Sale
-
Mining Circular Vibrating Screen Manufacturer in China
-
Professional screw sand washing machine for sale with ISO
-
High efficient wheel sand washing machine of Kefan for sale
Product Details
| Type | Circular | |||
| Application | Other, Ore, screening ore in mining | Place of Origin | Henan, China | |
| Brand Name | Henan Kefan | Model Number | YZS | |
| Voltage | industrial voltage | Power(W) | 11-37 kw | |
| Dimension(L*W*H) | 3700*1200mm | Weight | depend on model | |
| Certification | BV/CE/ISO | Warranty | 2 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Circular Vibrating Sieve Machine earns this name by reason of its approximately circular movement. It is of multilayer and high efficient. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, clear screening for different specifications.
Circular Vibrating Sieve Machine Features:
1. It uses eccentric block to produce strong exciting force.
2. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance.
3. It adopts tire coupling with capability of flexible connection and stable operation.
4. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, little noise.
Circular Vibrating Sieve Machine Technical Data:
Model | Screen size (mm) | No. of Layer | Screen mesh (mm) | Max. feed size (mm) | Handling capacity (t/h) | Motor power (kW) | Vibrating frequency (r/min) | Double swing (mm) |
2YZS1237 | 3700×1200 | 2 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
3YZS1237 | 3700×1200 | 3 | 3-100 | 400 | 10-80 | 11 | 750-950 | 5-9 |
2YZS1548 | 4800×1500 | 2 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
3YZS1548 | 4800×1500 | 3 | 3-100 | 400 | 30-200 | 15 | 750-950 | 5-9 |
2YZS1848 | 4800×1800 | 2 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
3YZS1848 | 4800×1800 | 3 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
4YZS1848 | 4800×1800 | 4 | 3-100 | 400 | 50-250 | 18.5 | 750-950 | 5-9 |
2YZS1860 | 6000×1800 | 2 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
3YZS1860 | 6000×1800 | 3 | 3-100 | 400 | 65-586 | 22 | 750-950 | 5-9 |
4YZS1860 | 6000×1800 | 4 | 3-100 | 400 | 65-586 | 30 | 750-950 | 5-9 |
2YZS2160 | 6000×2100 | 2 | 3-100 | 400 | 81-720 | 22 | 700-900 | 5-9 |
3YZS2160 | 6000×2100 | 3 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
4YZS2160 | 6000×2100 | 4 | 3-100 | 400 | 81-720 | 30 | 700-900 | 5-9 |
2YZS2460 | 6000×2400 | 2 | 3-150 | 400 | 100-810 | 30 | 700-900 | 5-9 |
3YZS2460 | 6000×2400 | 3 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
4YZS2460 | 6000×2400 | 4 | 3-150 | 400 | 100-810 | 37 | 700-900 | 5-9 |
