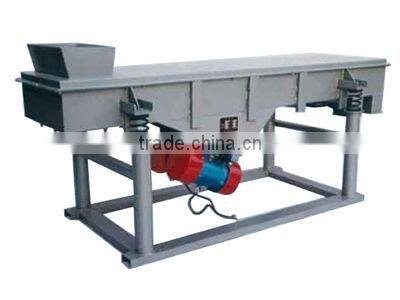

Mining Linear Vibrating Screen Machine of Kefan for Sale
- 100 Set / Sets per Month
- nearest port
- T/T Credit Card
Product Details
Type: | Circular | Application: | Other, Ore, mining, coal, metallurgy, building materials, refractories,etc | ||
Place of Origin: | Henan, China | Brand Name: | Henan Kefan | Model Number: | KF |
Voltage: | industrial voltage | Power(W): | depend on model | Dimension(L*W*H): | depend on model |
Weight: | depend on model | Certification: | BV/CE/ISO | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Linear vibrating screen introduction:
Linear vibrating screen (Linear sieve), high efficient new screening equipment, is widely used in mining, coal, metallurgy, building materials, refractories, light industry, chemical industry. Linear vibrating screen (Linear sieve) is stable and reliable, low consumption, low noise, long life, stable modes, screening efficiency.
Linear vibrating screen also screen and grade powdery, granular materials, is widely used in plastics, abrasives, chemicals, pharmaceuticals, building materials, food, carbon, fertilizer and other industries.
Linear vibrating screen working principle:
Linear vibrating screen use dual vibration motor, when the two vibrating motors synchronize rotating anti-rotate, the eccentric block produced the excitation force generated by the motor axis parallel to offset, in the vertical direction of the motor shaft, fold a resultant force, so the screening machine's trajectory is a straight line. Its two motor shaft relative to the screen surface has a dip, in the excitation force and materials under the action of self-gravity force, the screen surface material being tossed leap forward in a straight line, so as to achieve the material for screening and grading purposes. Can be used to automate the pipeline operation. With low energy consumption, high efficiency, simple structure, easy maintenance, fully enclosed structure no dust characteristics. Maximum sieve mesh is 400 mesh, can be screened out seven different granularity of the materials.
Linear vibrating screen's advantages:
Stable and reliable, low consumption, low noise, long life, steady vibration mode, high screening efficiency.
Linear Vibrating Screen Features:
1. good sealing, minimal dust spilling.
2. low energy consumption, low noise, long life screen.
3. high precision screening, large capacity, simple structure.
4. fully enclosed structure, automatic layout, more suitable for pipeline operations.
5. sieve body parts are made of rolled steel plates and profiles welded together (some groups of bolted connections between body) overall stiffness,solid and reliable.
Linear Vibrating Screen Technical parameters:
Model | Specification(L*W) | Llayer | Mesh size(mm) | Feed size(mm) | Production Capacity(t/h) | Motor power(kw) | Weigh(t)t | vibration frequency(Hz) | Double amplitude(mm) | Screen surface inclination Angle(°C) | Overall dimensions(L*W*H) |
ZSG1237 | 3700*1200 | 1 | 4-50 | ≤200 | 10-100 | 5.5*2 | 1750 | 16 | 6-8 | 15 | 3800*2050*1920 |
2ZSG1237 | 3700*1200 | 2 | 4-50 | ≤200 | 10-100 | 5.5*2 | 2345 | 16 | 6-8 | 15 | 3800*2050*2200 |
ZSG1443 | 4300*1400 | 1 | 4-50 | ≤200 | 10-150 | 5.5*2 | 4100 | 16 | 6-8 | 15 | 4500*3040*2500 |
2ZSG1443 | 4300*1400 | 2 | 4-50 | ≤200 | 10-150 | 5.5*2 | 4900 | 16 | 6-8 | 15 | 4500*3040*2700 |
3ZSG1443 | 4300*1400 | 3 | 4-50 | ≤200 | 10-150 | 5.5*2 | 5270 | 16 | 6-8 | 15 | 4500*3040*2820 |
2ZSG1548 | 4800*1500 | 2 | 5-50 | ≤200 | 15-200 | 7.5*2 | 5336 | 16 | 8-10 | 15 | 4800*3140*2814 |
3ZSG1548 | 4800*1500 | 3 | 5-50 | ≤200 | 15-200 | 7.5*2 | 5900 | 16 | 8-10 | 15 | 4799*3140*3014 |
2ZSG1848 | 4800*1800 | 2 | 5-50 | ≤300 | 50-500 | 7.5*2 | 6189 | 16 | 8-10 | 15 | 4799*3440*2814 |
3ZSG1848 | 4800*1800 | 3 | 5-50 | ≤300 | 50-500 | 7.5*2 | 6750 | 16 | 8-10 | 15 | 4799*3440*3014 |
4ZSG1848 | 4800*1800 | 4 | 5-50 | ≤200 | 50-500 | 11*2 | 7000 | 16 | 8-10 | 15 | 4799*3440*3503 |
2ZSG1860 | 6000*1800 | 2 | 5-150 | ≤300 | 80-600 | 11*2 | 8950 | 16 | 8-10 | 15 | 6000*3440 |
