Professional screw sand washing machine for sale with ISO
- 100 Set / Sets per Month
- nearest port
- T/T Credit Card
- Gold mining jaw crusher equipment for sale, stone crusher machine
- First-rate high efficiency SZZ series self-centering vibrating screen with ISO 9001 Certificate
- China leader manufacturer ZHAOXIN high efficiency thickener
- Ore benefication thickener machine, dewatering thickener price
- china high quality center drive thickener, thickening equipment
- Shandong Province high efficiency center drive thickener NZ-12, thickening machine
Product Details
Place of Origin: | Henan, China | Brand Name: | Henan Kefan | Model Number: | LSX |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

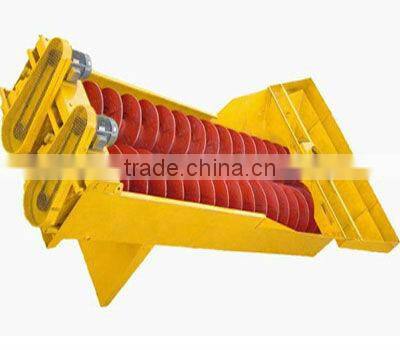

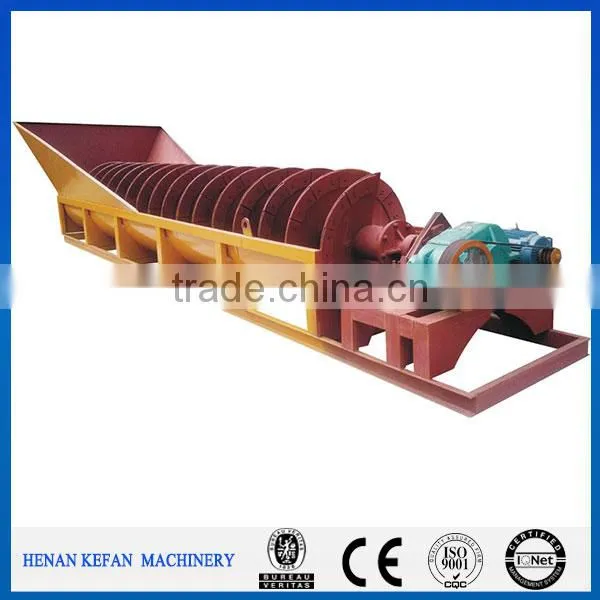

screw sand washing machine is suitable for construction sites, gravel plants, hydroelectric plants,concrete dam site, post pole factoryon required gravel and casting sand "70", glass quartz sand and oil wells backfill pressure sand for washing, grading and dehydration. screw sand washing machine is arranged inclined at 15 degrees, the sink bottom is surrounded by three weir plates to form a sedimentation tank, the screw head is immersed sedimentation tanks, spiral continuous rotates driven by the motor through the reducer, the perforated plate on the bottom of the settling tank supply cleaning water. The device combinesthree functions of washing, dewatering, grading.
Advantages and characteristics of screw sand washing machine :
Spiral sand washing machine has a simple structure; large processing capabilities; adapt to all kinds of working environment; easy maintenance.
Technical parameters of screw sand washing machine
Model | Screw Diameter (mm) | Tank Length (mm) | Feeding Size (mm) | Processing Capacity (t/h) | Screw Speed (r/min) | Power (kw) | Water Consumption (t/h) | Weight (t) | Overall Dimensions (mm) |
LSX915 | 915 | 7585 | ≤10 | 100 | 21 | 11 | 10-80 | 6.2 | 8420×2810×3960 |
2LSX915 | 915 | 7585 | ≤10 | 200 | 21 | 2×11 | 20-160 | 11.1 | 8420×3765×3960 |
LSX1115 | 1115 | 9782 | ≤10 | 175 | 17 | 15 | 20-150 | 10.2 | 10970×3945×4720 |
2LSX1115 | 1115 | 9782 | ≤10 | 350 | 17 | 15×2 | 40-300 | 17.5 | 10970×5250×4720 |
XSD2610 | 2600 | 3220 | ≤10 | 50 | 0.8 | 5.5 | 4-4.5 | 2.7 | 3220×2125×2670 |
XSD3016 | 3000 | 3810 | ≤10 | 80 | 0.8 | 7.5 | 16.30 | 3.2 | 3400×2615×2800 |
