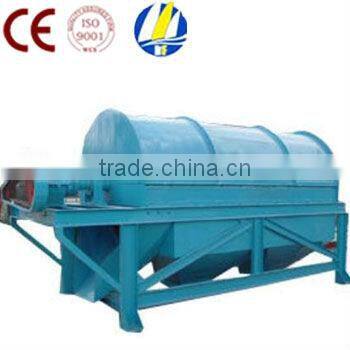

Drum screen is mainly composed of main motor, reducer, drum units, racks, closures, material inlet and outlet. Drum device is installed on the rack bias.
The motor through the reducer and the drum device are connected together by the coupling joint,driving drum device rotate along the axis.When the materials enter into the drum device,as the drum device bias and rotation, materials on the screen surface turn and roll, to make the qualified materials(after screening)are discharged from the bottom of drum back-end, and unqualified products(on the screening)are discharged from the discharge gate of the drum back-end. As the materials in the drum turn and roll,materials block in the sieve pore may be popup, prevent the sieve pore blocking. Drum screen sand machine,drum screening machine and drum screen principle are almost same, is different that people know it exists and it is called.
Drum Screen Usage:
1. used to grade big and small stone in the quarry,and separate dirt and powder.
2. separating gravel and sand in the quarry.
3. separate lump coal and coal fines and coal washing in the mining industry.
4. in the chemical industry and beneficiation industry, used for grading big or small blocks and separating powder materials.
Drum Screen Technical parameters:
Model |
throughput(m3/h) |
Sieve diameter(mm) |
Length(mm) |
Power(KW) |
Overall dimensions(mm) |
GS1230 |
20-50 |
Φ1200 |
3000 |
3 |
3580*1590*1675 |
GS1530 |
40-80 |
Φ1500 |
3000 |
5.5 |
3980*1790*1975 |
GS1830 |
80-150 |
Φ1800 |
3000 |
7.5 |
4150*1870*2240 |
GS2030 |
130-200 |
Φ2000 |
3000 |
11 |
4230*1950*2950 |
