With Reasonable super fine sand making machine Prices
brief introduction
sand making machine is the latest product of authoritative experts from Germany, connecting with Chinese present working conditions. It’s the high—efficiency sand making equipment with advanced world levels in our country. It is the preferred equipment for artificial sand making and stone reshaping industry.It specially provides the best material for the highway,railway,high-rise buildings,municipal works,hydro-electric dam and concrete mixing station. It ranks first among similar products with its excellent cost performance and reliability.
Application Range
1. sand making machine is used for Pebble,rock( the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, attle artificial sand production.
2. sand making machine has been used in Building aggregate, highway, cushion, asphalt concrete and cement aggregate production.
3.Sand making production and stone reshaping production in water conservancy and hydropower engineering field,highway,railway,bridge,passenger line,air new generation sand making machine port runway,municipal engineering and high-rise buildings.
4.The grinding anterior finely process of mining areas. Building materials,mining,metallurgy, chemical industry,cement,abrasive,refractory material, etc.
5.The crush of high abrasive materials resistance and secondary disassembly, desulphuration of thermal power and metallurgy, slag and construction waste.
6.The production of glass,quartz sand and other high purity material.
Working Principle
The entire center feeding: Material falls the feed hopper, then enters the high-speed rotary sling wheel from center feeding hole, which is speeded immediately in the sling wheel. The speed can reach several dozens times of the gravity acceleration. Then it is thrown from the sling wheel. First, it is crushed with other rebounded material fell freely from the sling wheel. Then both of them are impacted to the material lining (rock-rock) or strike back block (rock-iron), rebounded and stroke to the top of eddy cavity in the inclined-up direction. Then it moves along deflection-down, and forms a continuous material curtain with the material from the impellers passage. Just like this, the material is stroke, rubbed, crushed twice or more, then is discharged from the down discharging hole.
Technical parameters
Model |
Rotate speed of impeller (r/min) |
Max feed size (mm) |
Power (kW) |
Weight (including motor) (t) |
Capacity (t/h) |
Overall dimensions (mm) |
PCL-600 |
2000-2600 |
30 |
2×30 |
5.6 |
10-30 |
2800×1550×2030 |
PCL-750 |
1600-2100 |
35 |
2×45 |
7.5 |
30-50 |
3300×1800×2440 |
PCL-900 |
1300-1700 |
40 |
2×55 |
12 |
50-80 |
3750×2120×2660 |
PCL-1050 |
1100-1450 |
45 |
2×110 |
16 |
70-120 |
4480×2450×2906 |
PCL-1250 |
950-1200 |
45 |
2×132 |
22 |
80-150 |
4563×2650×3176 |
PCL-1350 |
900-1200 |
50 |
2×160 |
26 |
120-200 |
5340×2940×3650 |

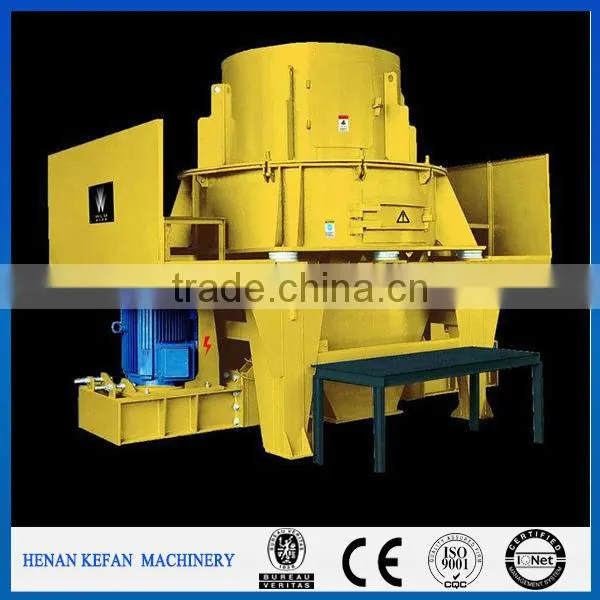

Sand making machine pictures:
Certification of sand making machine:
Dear friend,we can offer you a competitive price for high quality product n the market,if you are interested in our product,pls contact us freely.
