Specifications
active lime plant1)environment-friendly,energy-saving;
2)Good quality,and high output;
3)CE,BV,ISO9001
active lime plant description:

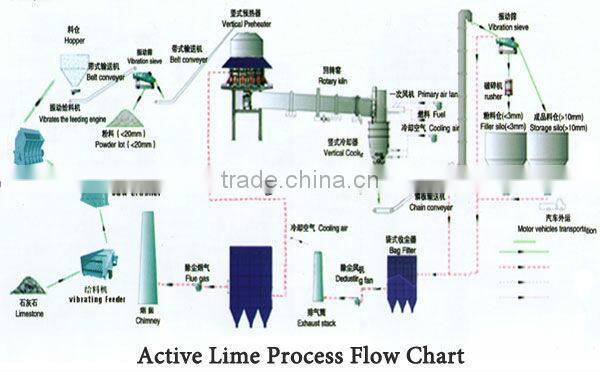

Qualified limestone stored in silos, by the elevator Lift and transported into the preheater at the top of the silo. Preheater top hopper, the bottom two material position control feeding quantity, and then through the next feeding tube will be evenly distributed to the preheater limestone indoor.
Limestone preheater kiln is heated to 900 ° C by 1150 ° C flue gas and about 30% decomposition, by the hydraulic plunger push into the rotary kiln, rotary kiln sintered limestone and decomposed into CaO and CO2. Generated after decomposition of limestone, limestone into the cooler, the cooler was bubbled into the cold air cooled to 100 ° C at the discharge. The hot-swappable 600 ° C hot air into the kiln and gas combustion. Exhaust fan in blended with cold air entering through the baghouse, and then the exhaust fan into the chimney.
The lime is shipped into the lime products by the vibration feeder, chain conveyor, bucket conveyor, belt conveyor. Limekiln price can accord to customer requirements whether screening processes.
| design capability (t/d) | 150 | 300 | 600 |
| Product | Active lime | Active lime | Active lime |
| Preheater | Vertical preheater | Vertical preheater | Vertical preheater |
| Rotary kiln type(m) | Φ2.5×40 | Φ3.3×50 | Φ4×60 |
| Effective volume (m3) | 142 | 292 | 575 |
| Combustion temperature | ≤1250 | ≤1250 | ≤1250 |
| Cooling machine | Grate cooler | Grate cooler | Grate cooler |
| Fuel |
coal gas Pulverized coal |
coal gas Pulverized coal |
coal gas Pulverized coal |
| heat rate (kJ/kg Cao) | 5000-5300 | 5000-5300 | 5100 |
