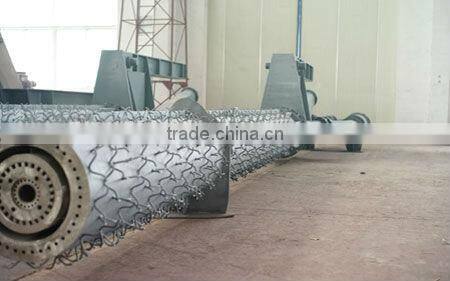

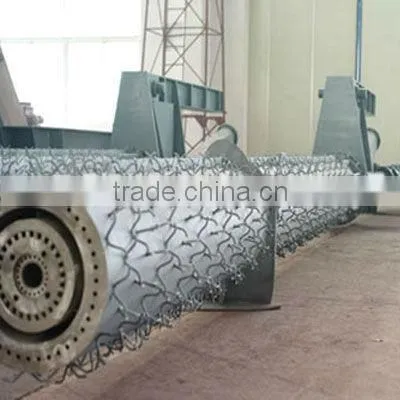

Rotary dryer coal burner in the technological transformation and application of use after effects.it is one of the most important parts in cement production. It supplies the heat for the entire system of the rotary kiln burner,but only if a good performance of burner ensures that the fuel fed into the rotary kiln distributes evenly and quickly,is fired in time,burns completely in the burning space and provides sufficient heat in order to form a reasonable temperature field and thermal system. It is key equipment for cement kiln to burn raw meal to clinker.
The structure, design parameter, operation parameter affect burning of fuel greatly. KFB multichannel pulverized coal burner applies four-channel technology and two utility model patents of Ki sen, its functions are special and easy to operate.
Technical parameters of rotary dryer coal burner:
| Mode | Burning Coal (t/h) | Supporting Fan | Installation Methods | Matching Kiln Mode | Max. Overall Dimensions (mm) |
| LY-1 | 1.2-1.8 | centrifugal | horizontal/ suspension | Φ1.9 | 300*9000 |
| LY-1A | 1.3-2.3 | centrifugal | horizontal/ suspension | Φ2.2 | 300*9000 |
| LY-2 | 1.8-2.8 | centrifugal | horizontal/ suspension | Φ2.5 | 300*9000 |
| LY-2A | 2.2-3 | centrifugal | suspension | Φ2.8 | 300*9000 |
| LY-3 | 2.5-3.3 | Centrifugal/ roots | suspension | Φ3 | 350*10000 |
| LY-3A | 3-3.8 | Centrifugal/ roots | suspension | Φ3.2 | 350*12000 |
| LY-4 | 4-4.8 | Centrifugal/ roots | suspension | Φ3.5 | 406*12000 |
| LY-4A | 5-6.5 | Centrifugal/ roots | suspension | Φ4 | 400*12000 |
