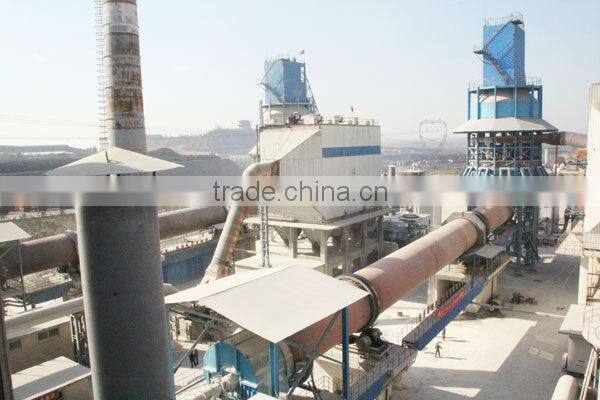

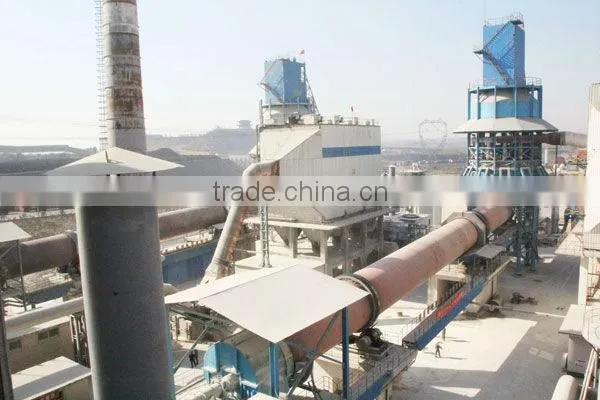

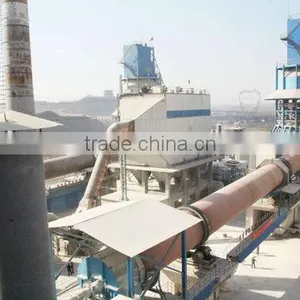

Introduction of ore rotary kiln :

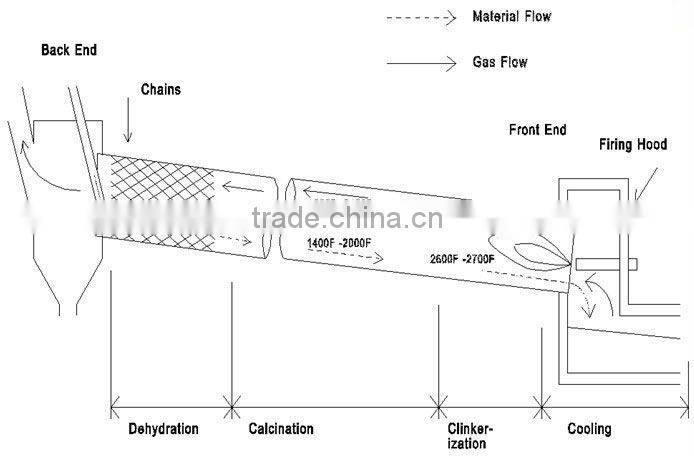

Ore rotary kiln is the main equipment of calcining cement clinker. It has simply structure, easy operation in producing, less wearing parts, high efficiency. It's used in the cement plant to calcine high grade cement, at the same time can be used in metallurgy,chemical,construction ect.
The ore rotary kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials. Cement kilns are mainly used for calcining cement clinker, contains sub-dry production of cement kilns and wet process cement kilns two categories. Metallurgy chemical kiln is used in metallurgical industry, steel plants depleted iron ore magnetic roasting; oxidizing roasting of chrome, nickel iron ore; refractory plant calcined high alumina bauxite mine and aluminum roasting clinker, aluminum hydroxide; chemical plant baking chrome ore and chrome ore and other minerals.
Main technical parameters of ore rotary kiln :
| Spec (M) | Productivity | Main Motor | Main Reducer | Remarks | ||
| Power (KW) | Model | Model | Ratio | |||
| φ1.9/1.6×39m | 72 | 30 | JZT2-72-4 | JZQ750-I-Z | 48.57 | |
| φ1.9×36m | 84 | 37 | YCT315-4A | ZS110-5-III | 78.19 | |
| φ2.2×45m | 98.4 | 55 | JZT82-6 | ZA125 | 93.93 | |
| φ2.5/2.2×55m | 120 | 40 | JZT81 | ZS145-10-I | 134.9 | |
| φ2.5/2.2×63m | 108 | 40 | JZT81 | ZS145-10-I | 134.9 | |
| φ2.5×40m | 204 | 40 | Z2-92 | ZS125-2-I | 134.9 | |
| φ2.5×45m | 180 | 45 | JZT82-4 | ZS125-4-I | 69.71 | |
| φ2.5×50m | 30 | JZT3-72-4 | ZS145-9-V | 122.8 | ||
| φ3×48m | 360-480 | 75 | YCT355-48 | ZS145-7-II | 100.4 | |
| φ3.1/2.5×78m | 216-240 | 75 | Z4-225-31 | ZS165-2-II | 57.17 | |
| φ3.2×48m | 1000 | 160 | ZSN4-280-21B | NSY56-28-II | 28 | Decomposition Outside Kiln |
| φ3.2×50m | 1000 | 160 | ZSN4-280-21B | NSY56-28-II | 28 | Ditto |
| φ3.2×52m | 1000 | 160 | ZSN4-280-21B | NSY56-28-II | 28 | Ditto |
| φ3.3×50m | 1200 | 160 | ZSN4-280-21B | NSY450-28-V | 28 | Ditto |
