Specifications
dry process cement rotary kiln1)Stable function,low energy consumption;
2)high output,easy to operate;
3)BV,CE,ISO9001:2008.

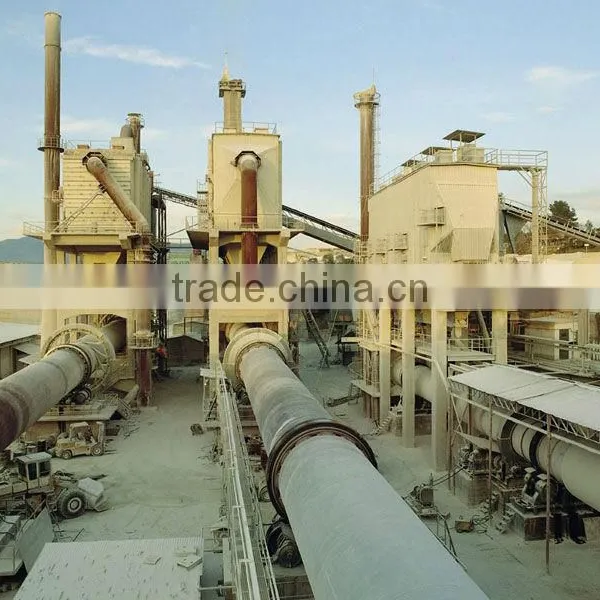

Introduction of building materials rotary kiln :
building materials rotary kiln is the main equipment for dry and wet production of cement clinker.Rotary kilns are widely used in metallurgy, chemical industry, construction, refractories, and environmental protection industries. The rotary kiln firing system is equipment with technological innovation.This system adopts the domestic advanced technology,such as the most advanced hydraulic block wheel device, a high measurement accuracy of measurement piston pump, high-precision control valve and contact-type graphite block sealing device.
Features of building materials rotary kiln :
1. Stable function, low energy consumption, high output, easy to operate. Rotary kiln’s structure is simple, production process control conveniently and reliably and it is less wearing parts and high operation rate.
2. One hand,rotary kiln is the combustion equipment,in which coal powder burns to produce heat;Another hand, rotary kiln is the heat transfer equipment,raw materials absorb the gas heat to burn.
3. The rotary kiln firing system is equipmented with technological innovation,This system adopts the domestic advanced technology,such as the most advanced hydraulic block wheel device, a high measurement accuracy of measurement piston pump, high-precision control valve and contact-type graphite block sealing device.
4. Easy to operate, reliable use. Stabilize the thermal system, and improve the equipment operation rate, increase 10% operation rate compared with the same specifications equipment, production increased by 5% -10%, reduction 15% heat loss.
The main parameters of building materials rotary kiln :
| Specification(meter) | 3.5×54 | 4×60 | 4.3×64 | ||
| Production(t/d) | 1500-1800 | 2500 | 3500 | ||
| rake of Kiln(%) | 4 | 4 | 4 | ||
| Number of bearing (Number) | 3 | 3 | 3 | ||
| Block wheel form | Hydraulic pressure | Hydraulic pressure | Hydraulic pressure | ||
| Main transmission (turn/points) | 0.39-3.9 | 0.41-4.07 | 0.4-4.0 | ||
| Auxiliary transmission (turn/points) | 7.66 | 8.2 | 7.93 | ||
| Main transmission | Electromotor | Model | ZSN4-315-092 | ZSN4-355-092 | ZSN4-355-12 |
| Rated power (kw) | 220 | 315 | 400 | ||
| Speed range (turn/points) | 1000 | 1000 | 100-1000 | ||
| Rated voltage (v) | 440 | 440 | 440 | ||
| Speed reducer | Model | NZS995-28VIBL | YNS1110-22.4VBR | YNS1400-3105VIBL | |
| Total ratio | 28 | 22.4 | 31.5 | ||
| Auxiliary turn | Electromotor | Model | Y200L1-6 | Y180L-4 | Y200L-4 |
| Rated power (kw) | 18.5 | 22 | 30 | ||
| The rated speed (turn/points) | 970 | 1470 | 1470 | ||
| Rated voltage (v) | 380 | 380 | 380 | ||
| Speed reducer | Model | ZSY355 | YNS440-45R | YNS497-45ZC | |
| Total ratio | 45 | 45 | 45 | ||
| The total weight (not including refractory bricks) (tons) | 341 | 434 | 562 | ||
