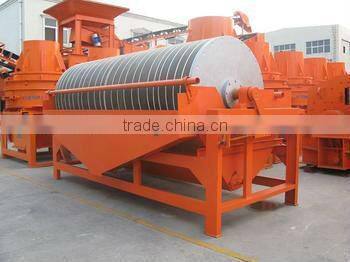

Help CenterISO;CE;BV Approved Gradient Magnetic Separator With High Capacity
Related Products
-
China Famous Quartz Sand Production Line Price /quartz Sand Processing EquipmentUS$ 1,000 - 9,000MOQ: 1 Set -
New Designed High Capacity 30-300 TPH Basalt Stone Production Line For SaleUS$ 1,000 - 9,000MOQ: 1 Set
-
Latest Designed Energy-saving Titanium Ore Gravity Separation ProcessUS$ 1,000 - 9,000MOQ: 1 Set
-
China Leading Manufacture Limonite Beneficiation Process With High CapacityUS$ 1,000 - 9,000MOQ: 1 Set
-
Famous Brand Potassium Feldspar Ore Dressing Equipment;Ore DressingUS$ 1,000 - 9,000MOQ: 1 Set

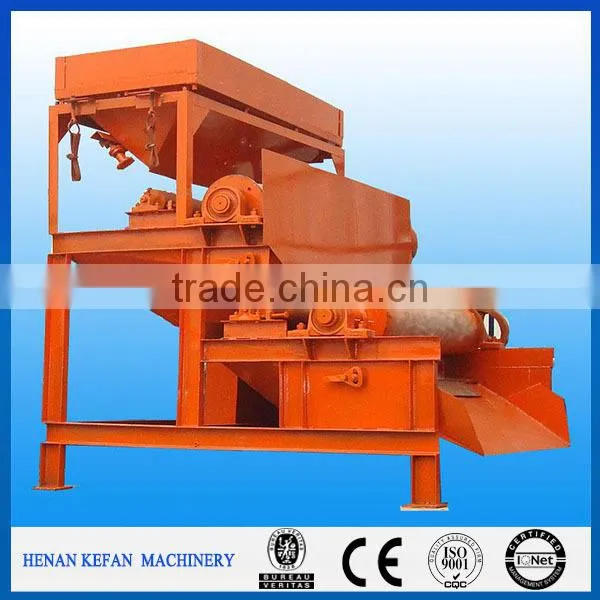

The introduction of High gradient magnetic separator:
High gradient magnetic separation machine is our new developed successful high magnetic separation equipment. Magnetic system used in all high-performance rare earth NdFeB material and quality ferrite materials do clever open magnetic circuit design, the cylinder sub constituency the maximum magnetic flux density above 0.8T magnetic field strength of conventional magnetic drive -5 times the sub-constituency magnetic forces can reach the level of electromagnetic strong magnetic separator.
Sorting cylinder use wear-resistant stainless steel refining;mineral sorting through vibrating feeder evenly to the top of the barrel to the sorting,rotating cylinder outstripped the cylinder,non-magnetic materials magnetic materials by strong magnetic force attracted to the cylinder, with the sub-ore board is very convenient,separat magnetic and non-magnetic material precisely.
The strong magnetic force Drum Magnetic Separators selected,weakly magnetic minerals into reality.The large amount of equipment processing, sorting mineral grain size range wide,high separation accuracy, no blockage; simple structure,easy maintenance,power consumption is only 20% of the electromagnetic strong magnetic separator.
The main uses of the high gradient magnetic separator:
The election iron work at anhydrous areas;refractories and other materials deironing work.
The main parameters of high gradient magnetic separator:
| Project | Parameters |
| Barrel Diameter (mm) | 400, 600, 750 |
| Barrel Length (mm) | 600, 900, 1200 |
| Barrel Table Top Magnetic Induction Intensity | 0.8T |
| Sorting Cylinder Speed (r.p.m) | 40, 60 |
| Feeding way | Vibration feeder top feed |
| Separation Size (mm) | 10-0.074 |
| Throughput (t/h) | 0.3-8 |
| Motor Speed model | XWD1.5-63;XWD2.2-74 |
| Weight (t) | 0.6-1.5(t) |
Guaranteed quality:
