High Production Efficiency Best Performance Rotary Vibrating Screen Machine for Sale

Henan Kefan Mining Machinery Co., Ltd.

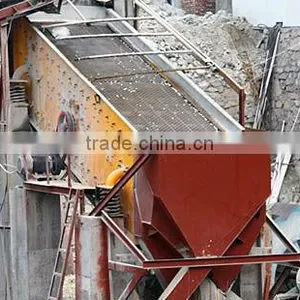

High Production Efficiency Best Performance Rotary Vibrating Screen Machine for Sale thumbnail-1
High Production Efficiency Best Performance Rotary Vibrating Screen Machine for Sale photo-1
US$ 1,000 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, Ore, building and construction industries and so on
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
nearest port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Other, Ore, building and construction industries and so on
Place of Origin Henan, China
Brand Name Kefan
Model Number 2YZS1548
Voltage Industrial voltage
Power(W) 15000
Dimension(L*W*H) 5900*2270*1620
Weight 5.35t
Certification BV/CE/ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Introduction of vibrating screen

A vibrating screen is a classifying screen which divides the mixed materials with different grain size into a number of different levels of granularity through single or multilayer screen surface. There are mainly two varieties: circular vibrating screen and linear vibrating screen. Circle vibrating screen's movement locus is a circumference.

Main applications of vibrating screen

This series of circular vibrating screen is used for material classification in coal dressing, metallurgy and mining machinery, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on.

Working Principle of vibrating screen
Vibrating Screen consists of screen box, supporting device, vibration exciter, transmission part, etc. The barrel-type vibration exciter is installed in the middle  of the machine. During normal operation, the vibration of exciter will drive the screen mesh fixed on the screen box vibrate, and then materials will be screened. The big and small materials fall from the upper side and lower side of the screen to get them separated.

Main Technical Parameters of vibrating screen

Model

Screen Size
(mm)

Screen Decks

Screen Hole Size
(mm)

Max. Feeding Size
(mm)

Capacity
(t/h)

Motor Power
(kw)

Weight
(t)

Overall
Dimension
(mm)

2YZS1237

3700×1200

2

3-50

200

10-80

11

2.40

4773×2050×2247

3YZS1237

3700×1200

3

3-50

200

10-80

11

3.05

4773×2050×2700

2YZS1548

4800×1500

2

3-100

400

30-200

15

5.35

5900×2270×1620

3YZS1548

4800×1500

3

3-100

400

30-200

15

6.07

5900×2270×1670

2YZS1848

4800×1800

2

3-100

400

50-280

18.5

6.15

5900×2560×1620

3YZS1848

4800×1800

3

3-100

400

50-280

18.5

6.93

5900×2560×1670

2YZS1860

6000×1800

2

3-100

400

65-550

22

6.95

7060×2560×1620

3YZS1860

6000×1800

3

3-100

400

65-550

22

7.70

7060×2560×1670

4YZS1860

6000×1800

4

3-100

400

65-550

30

8.70

7060×2560×1930

2YZS2160

6000×2100

2

3-100

400

81-720

22

8.48

7130×2990×1760

3YZS2160

6000×2100

3

3-100

400

81-720

30

9.24

7130×2990×1810

4YZS2160

6000×2100

4

3-100

400

81-720

30

10.45

7130×2990×1930

2YZS2460

6000×2400

2

3-150

400

100-810

30

12.35

7130×4121×1810

3YZS2460

6000×2400

3

3-150

400

100-810

37

13.85

7130×4121×1940

4YZS2460

6000×2400

4

3-150

400

100-810

37

15.60

7130×4121×2080

About us

Henan Kefan Mining Machinery Co.,Ltd , established in 1980, is one of the first garden-like factories located in Zhengzhou which is one of the eight historic cities in China. Since established, We have passed ISO9001:2008 quality system authentication and CE certificate.We are also have a state-level quality management standard reaching ennterprise, member of China Brick&Tile Association and member of China Sand Association, the company has been taking the scientific management method of the modern enterprise, producing with meticulous care and non-stop creation and developing to become a bright pearl and pacemaker of the mechanical industry in our country.



Services



According to customers' demand, we supply the services in a flexible way not only the traditional services but also the Internet on-line services. Our engineer is 24 hours online.We try our best to carve out market and provide services all the time.

Before customers' purchase, we will send our engineers to customers' site to design the best flow chart;

After purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and high efficiency. We welcome customers from home and abroad to visit our company and carry out cooperation!
