Help CenterHot Selling Spiral Classifier and Ball Mill Used for Mineral Processing
Related Products
-
New Improved Best Performance Mineral Processing Screw Classifier/mining Spiral Classifier MachineUS$ 1,000 - 9,000MOQ: 1 Set -
High Standard Easy Operation Spiral Classifier for Iron Ore Classifying With Good QualityUS$ 1,000 - 9,000MOQ: 1 Set
-
Professional Mutil-function Best Performance ZSG Series Linear Vibrating Screen Manufacturer With Quality GuaranteedUS$ 1,000 - 9,000MOQ: 1 Set
-
China Leading Manufacture Direct Selling Straight Line Vibrating Screen With Good QualityUS$ 1,000 - 9,000MOQ: 1 Set
-
Widely Used High Efficient Low Capital Cost Iron Vibrating Screen With Competitive PriceUS$ 1,000 - 9,000MOQ: 1 Set
Specifications
1.BV/CE/ISO certification for quality2.Low-energy consumption
3.Reliable working condition
4.Low operation cost
Description of spiral classifier
Classifier machine is widely applied to the concentrating mill and make up closed circuits process with ball mills to separate mineral sand, or in the gravity concentrating mill to classify ore sand and mud, and in the metal process to classify particle size for ore pulp, as well as desliming, dehydration, etc. job in washing operation, dehydration and other operations, the classifier is of simple structure , reliable working, and easy operation etc. characteristics.
Main benefits of Spiral classifier
• Energy saving
•Heavy duty, rugged construction
•Powerful self-contained spiral lifting device
•Continuous spiral raking
•Optional automatic lubrication system

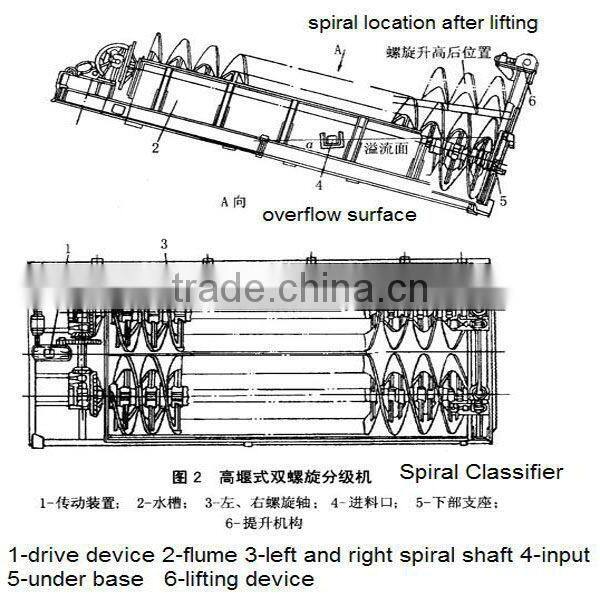

The Structure of spiral classifier

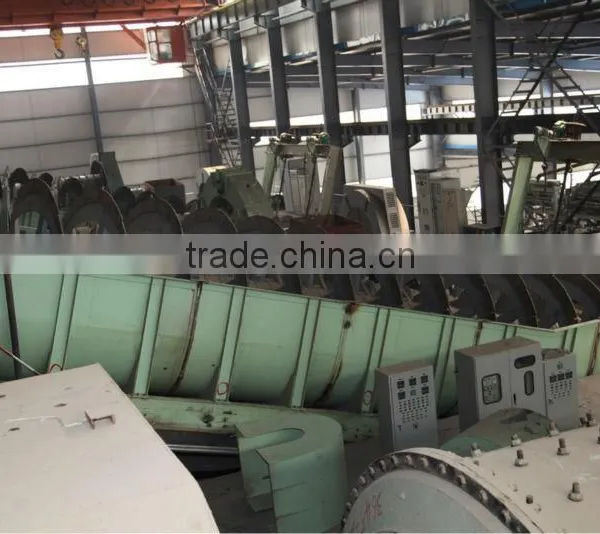

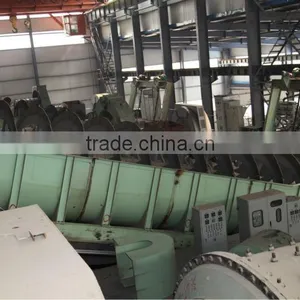

Pictures of spiral classifier
Technical Parameters of spiral classifier
| Model | Spiral Diameter(mm) | Tank Length(mm) | Screw Speed(r/min) | Production Capacity | Motor Power | Weight(t) | ||
| Sand Return | Overflow | Drive | Lifting | |||||
| FG7.5 | 750 | 5500 | 6-10 | 340-70 | 65 | 3.0 | manual operation | 2.7 |
| FG10 | 1000 | 6500 | 5.0-8.0 | 675-080 | 110 | 5.5 | manual operation | 4.43 |
| FG12 | 1200 | 6500 | 5.0-8.0 | 1170-870 | 155 | 5.5 | 1.5 | 8.7 |
| FG15 | 1500 | 8400 | 4.0-6.0 | 1830-2740 | 235 | 7.5 | 2.2 | 12.5 |
| FG20 | 2000 | 8400 | 4.0-6.0 | 3240-5400 | 400 | 11 | 2.8 | 20.5 |
| FG24 | 2400 | 9210 | 3.6 | 3240-5400 | 580 | 15 | 3.0 | 25.6 |
| FG30 | 3000 | 1250 | 3.2 | 11625 | 890 | 22 | 4.0 | 37.7 |
Services
Our highly skilled technicians and experienced after-sale series team will provide you the most professional serive.
1)Help customers to choose the most appropriate equipment model.
2)Design and make productions based on customer's special requirement.
3)Products will be strictly inspected before loading.
4)Shipping delively will be based on the contract.
5)We are also offering plenty of accessories and various spare parts.
Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.
