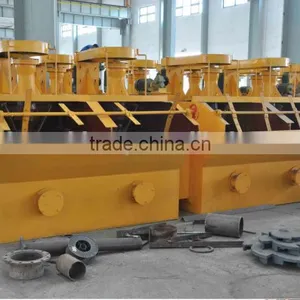

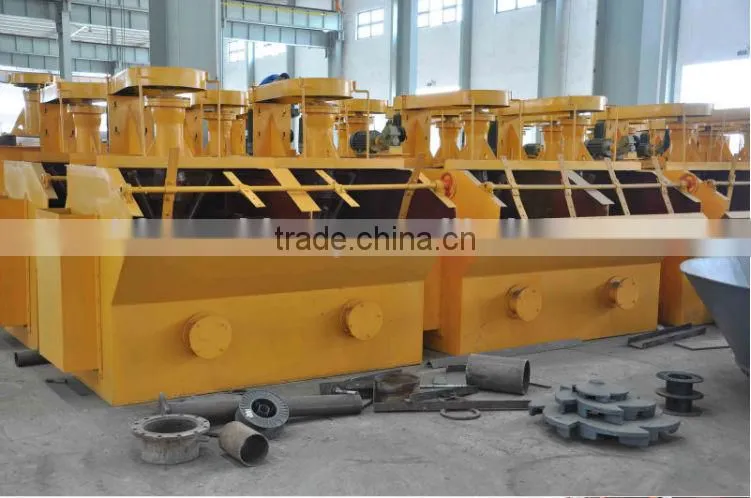

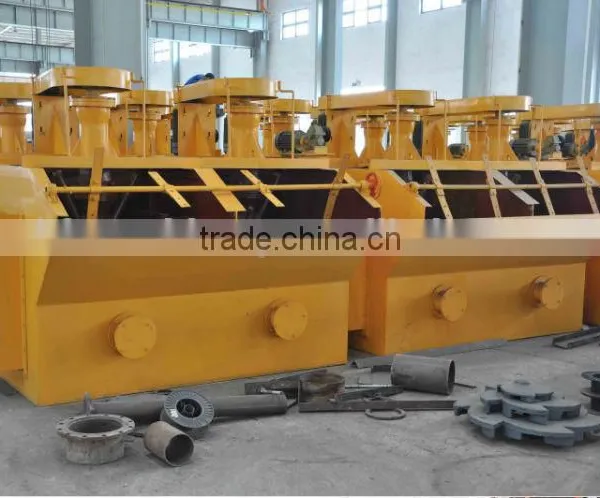

flotation machine gold supplier in asia in mineral separator
Flotation machine is applice able for the separation of nonferrous metal and ferrous metals, such as fluorite, talc, copper, lead, zinc, nickel, molybdenum.

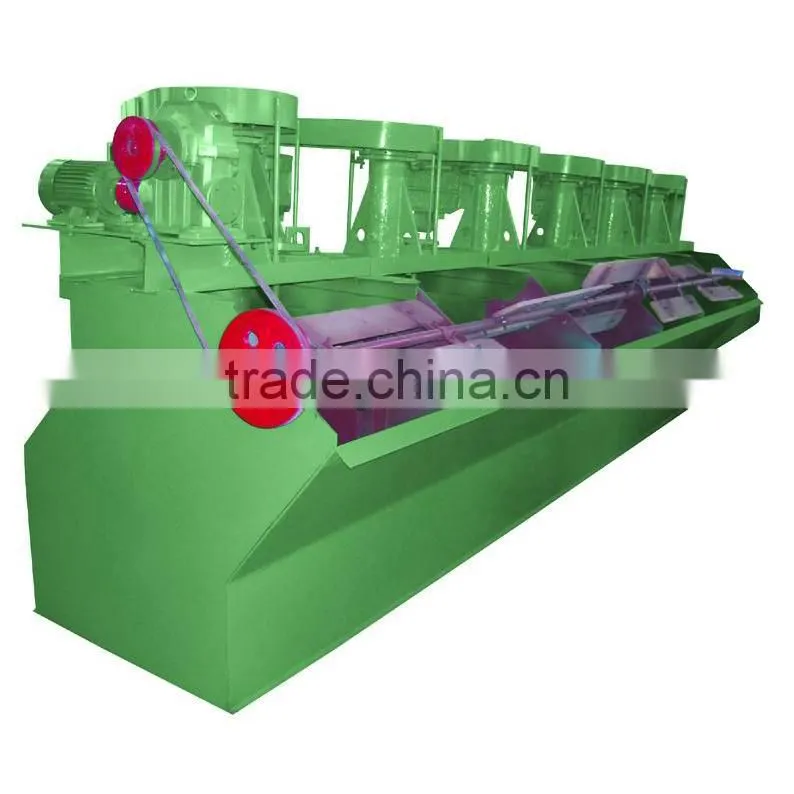

Working principle of SF Flotation machine
The impellers are driven through V belt transmission, which brings centrifugal effect to form the negative pressure. On the one hand, the flotation machine inhales sufficient air to mix with ore slurry; on the other hand it stirs ore slurry and mix with medication to form the mineralized froth. To adjust the height of flashboard to control the liquid level and make the useful froth scraped by loam board. Each chute can inhale gas, sink magma, separate. No assisting equipments are required, and it must be levelly installed. It is easy to change the flow chart. The cycling way of magma is very reasonable. It can reduce the impurities to a great extent. There is automatic equipment on the magma surface, easy to adjust. The impeller also owns the upper and lower retroversion blade. The upper one makes the magma cycle upward, while the lower one makes the magma cycle downward.
Advantages of SF Flotation machine
It increase concentrate grade by 4-6%
It increase cycling rate by 8%
It increase production by 12%.
Technical data of SF flotation machine:
| Model | Valid Volum (m³) | Impeller Diameter (mm) | Capacity (m3/min) | Impeller Speed (r/min) | Motor | Dimention(L×W×H) (mm) | Weight of Cell | |||
| Impeller | Scraper | |||||||||
| Model | Power | Model | Power | |||||||
| SF-0.15 | 0.15 | 200 | 0.06-0.18 | 536 | Y90L-6 | 1.5 | Y801-4 | 0.55 | 500×500×600 | 0.27 |
| SF-0.37 | 0.37 | 296 | 0.2-0.4 | 386 | Y90L-4 | 1.5 | Y801-4 | 1.1 | 900×700×750 | 0.47 |
| SF-0.65 | 0.65 | 350 | 0.3-0.9 | 400 | Y132S-6 | 3 | Y90L-6 | 1.1 | 700×900×900 | 0.93 |
| SF-1.2 | 1.2 | 450 | 0.6-1.2 | 312 | Y132S2-6 | 5.5 | Y90L-6 | 1.1 | 1100×1100×1100 | 1.37 |
| SF-2.8 | 2.8 | 550 | 1.5-3.5 | 270 | Y160L-6 | 11 | Y90L-6 | 1.1 | 1700×1600×1150 | 2.13 |
| SF-4 | 4 | 650 | 2-4 | 220 | Y200L-8 | 15 | Y100-6 | 1.5 | 1850×2050×1200 | 2.58 |
| SF-8 | 8 | 760 | 4-8 | 191 | Y250M-8 | 30 | Y100-6 | 1.5 | 2200×2900×1400 | 4.13 |
| SF-10 | 10 | 760 | 5-10 | 191 | Y250M-8 | 30 | Y100-6 | 1.5 | 2200×2900×1400 | 4.49 |
Technical data of XJK flotation machine:
| type | Cell Volume (m3/cell) | impeller diameter (mm) | capacity (m3/min) | impeller Speed (r/min) | Scraper speed (r/min) | Power(KW) | overall Dimension four-cell in one body(mm) | weight(T /cell) | |
| Impeller Motor | Scraper Motor | ||||||||
| XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 | 1.5 | 0.55 | 2100*865*900 | 0.35 |
| XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 | 1.5 | 0.55 | 2625*1130*1290 | 0.41 |
| XJK-0.35 | 0.35 | 300 | 0.18-0.5 | 470 | 17.5 | 2.2 | 0.55 | 3012*1350*1320 | 0.45 |
| XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | 16 | 3 | 1.1 | 3800*1500*1550 | 0.85 |
| XJK-1.1 | 1.1 | 500 | 0.6-1.6 | 330 | 26 | 5.5 | 1.1 | 4680*1820*1950 | 1.4 |
| XJK-2.8 | 2.8 | 600 | 1.5-3.5 | 280 | 26 | 11 | 1.1 | 7750*1600*1700 | 2.43 |

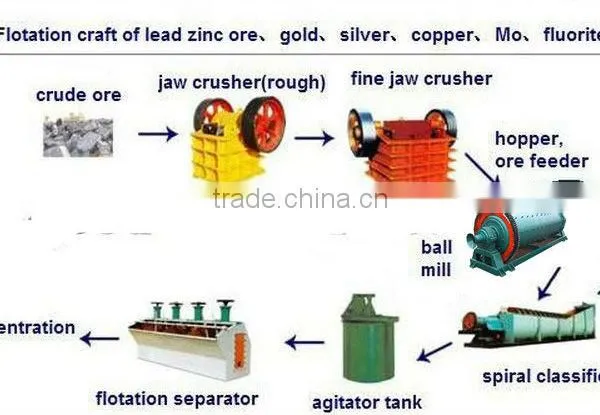

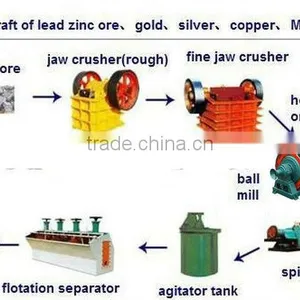

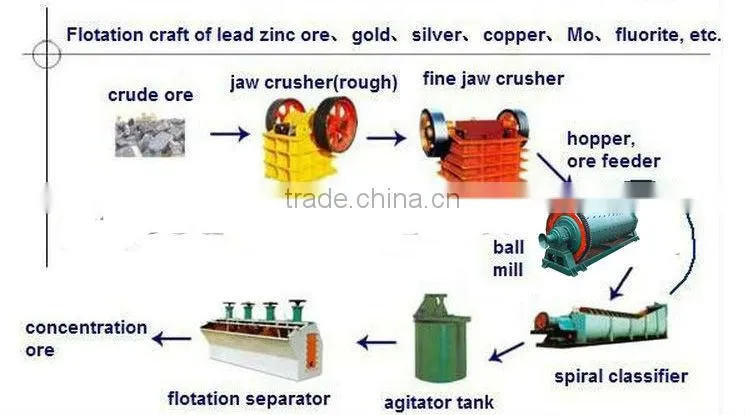

complete production line:
Quality Certificate:
