Low Power Consumption Mobile Crushing and Screening Plant With BV;CE;ISO

Low Power Consumption Mobile Crushing and Screening Plant With BV;CE;ISO thumbnail-1
Low Power Consumption Mobile Crushing and Screening Plant With BV;CE;ISO photo-1
US$ 1,000 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cone Crusher
Application:
metallurgy,chemical,mining industry
Contact Supplier Request Quote Chat Now
Henan Kefan Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
the nearest port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Cone Crusher
Application metallurgy,chemical,mining industry
Motor Type AC Motor
Power(W) 200-400kw
Capacity(t/h) 100-500t/h
Place of Origin Henan, China
Brand Name Henan Kefan
Model Number PP900SMHS
Dimension(L*W*H) 10000*2743*4200mm
Weight 28400kg
Certification BV;CE;ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Introduction of mobile cone crusher plant:

This series of mobile cone crushing plant is mainly used in metallurgy, chemical industry,building material,hydroelectricity for processing the materials that always need to be moved and transterred, especially for the mobile operation work, such as highway,railway,hydroelectric project. The customer could make different disposition according to the different kind, dimension of the raw materials and different requirements for the finished product.



Advantages of mobile cone crusher plant:

    1. Car motor and control box integration;
    2. Car installation support,equipment,space efficient and convenient stationed;
    3. High-performance crusher,large crushing ratio;
    4. Steering traction axis, to facilitate road transport and venues depth;
    5. Rational allocation according to the actual situation of the customer site.

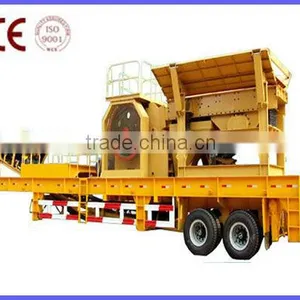

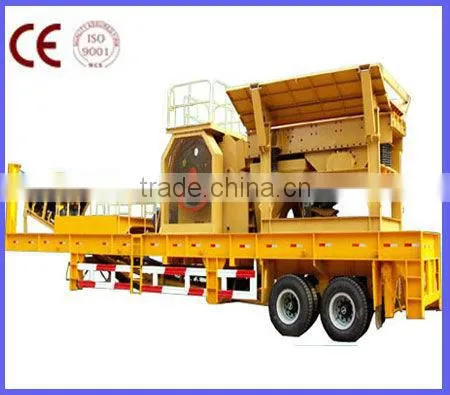

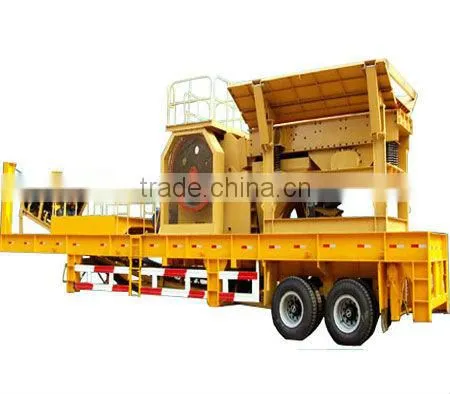

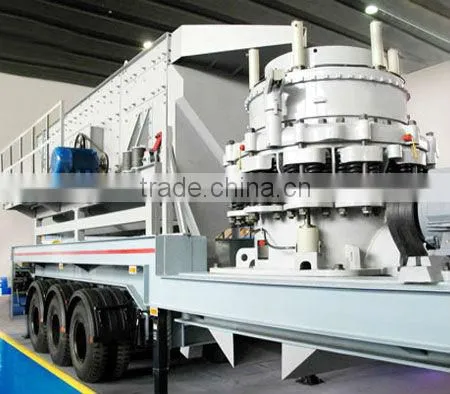

Picture of mobile cone crushing plant:

Low Power Consumption Mobile Crushing and screening plant with BV;CE;ISO



Technical parameters of mobile cone crushing plant:

PP mobile cone crusher plant PP900SMHS PP1200SMHS PP1750SMHS PP2200SMHS
Shipping Size Length(mm) 10000 11200 11800 12300
Width(mm) 2743 2743 2840 2900
Height(mm) 4200 4200 4200 4200
Weight(kg) 28400 30500 22400 48700
Axle Load(kg) 15500 16300 14300 31100
Tractor Weight(kg) 12900 14200 8100 17600
Cone Crusher Type PY900 PY1200 PY1750 PY2200
Max.Feeding Size 50-110 50-145 85-215 100-300
Adjusting range of discharge port 10-32 15-50 20-50 20-60
Screen Type 3YK1235 3YK1545 4YK1860 4YK2160
Belt Conveyor Type B650*8 B800*8 B1000*8 B1200*8



We also supply:

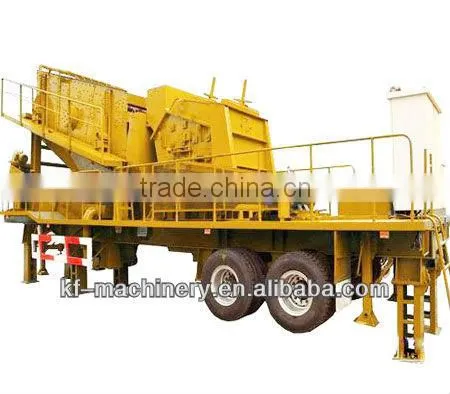

Mobile Impact crusher:

Low Power Consumption Mobile Crushing and screening plant with BV;CE;ISO

Mobile Jaw crusher:

Low Power Consumption Mobile Crushing and screening plant with BV;CE;ISO

Certification:



Low Power Consumption Mobile Crushing and screening plant with BV;CE;ISOLow Power Consumption Mobile Crushing and screening plant with BV;CE;ISO
