Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Widly Used PP Jaw Mobile Crushing Plant
Widly Used PP Jaw Mobile Crushing Plant
US$ 1,000 - 999,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Jaw Crusher
Application:
metallurgy, chemical industry, building material, mining, ect.
Payment & Shipping
Payment Methods:
Port of Shipment:
the nearest port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fully Automatical Mobile Impact Crusher With BV;CE;ISOUS$ 1,000 - 999,999MOQ: 1 Set -
New Generation PP Jaw Mobile Crushing Plant For Hardness Ores And RocksUS$ 1,000 - 999,999MOQ: 1 Set
-
Pioneer Mobile Crushing Plant With Good ReputationUS$ 1,000 - 9,000MOQ: 1 Set
-
High Power PP Vertical Impact Crushing Plant for Road ConstructionUS$ 1,000 - 999,999MOQ: 1 Set
-
Henan Famous Manufacture Wheeled Mobile Crushing Plant for SaleUS$ 1,000 - 999,999MOQ: 1 Set
Condition
New
Type
Jaw Crusher
Application
metallurgy, chemical industry, building material, mining, ect.
Motor Type
AC Motor
Power(W)
Various
Capacity(t/h)
according to modle
Place of Origin
Henan, China
Brand Name
Henan Kefan
Model Number
PP600
Dimension(L*W*H)
8600*2520*3770mm
Weight
15240kg
Certification
BV;CE;ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Low energy and steel consumption2.High capacity and crushing efficiency
3.Economical operation
4.CE,ISO9001:2008
Introduction of mobile jaw crusher:
This series of mobile crushing plant is mainly used in metallurgy, chemical industry,building material,hydroelectricity for processing the materials that always need to be moved and transterred, especially for the mobile operation work, such as highway,railway,hydroelectric project. The customer could make different disposition according to the different kind, dimension of the raw materials and different requirements for the finished product.
Advantages of mobile jaw crusher:
- Car motor and control box integration;
- Car installation support,equipment,space efficient and convenient stationed;
- High-performance crusher,large crushing ratio;
- Steering traction axis, to facilitate road transport and venues depth;
- Rational allocation according to the actual situation of the customer site.

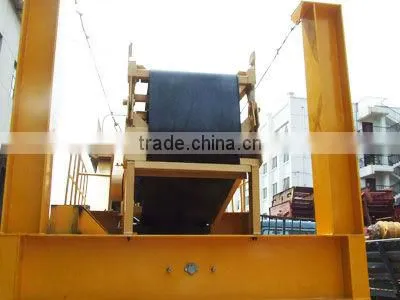

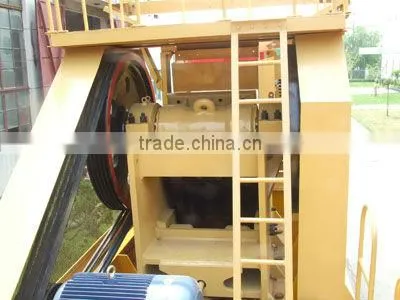

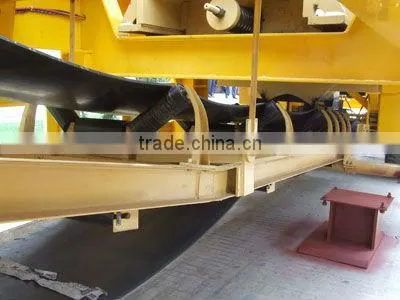

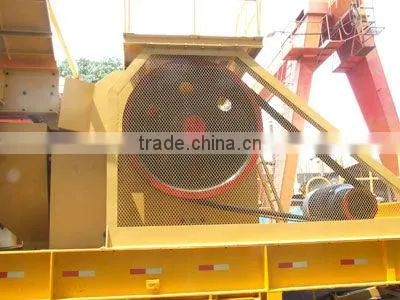

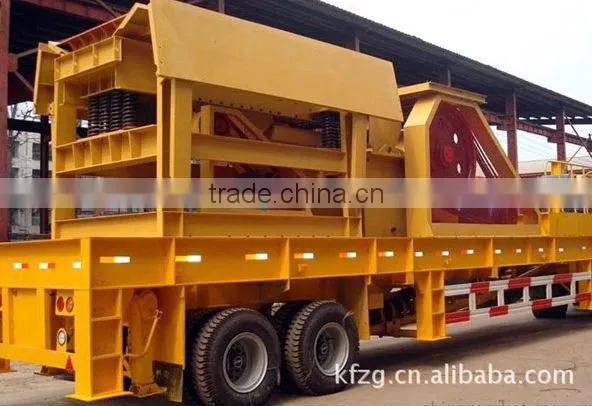

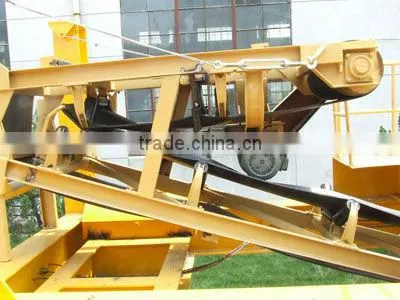

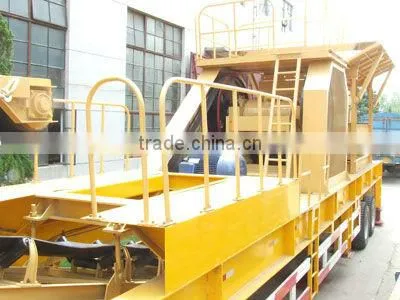

Pictures of mobile jaw crusher:
Technical parameters of mobile jaw crusher:
| PP Mobile Jaw crusher plant | PP600 | PP750 | PP900 | PP1060 | PP1200 | PP1300 | |
| Shipping Size | Length(mm) | 8600 | 9600 | 11097 | 13300 | 15800 | 9460 |
| Width(mm) | 2520 | 2520 | 3759 | 2900 | 2900 | 2743 | |
| Height(mm) | 3770 | 3500 | 3500 | 4440 | 4500 | 3988 | |
| Weight(kg) | 15240 | 22000 | 32270 | 57880 | 98000 | 25220 | |
| Axle Load(kg) | 10121 | 14500 | 21380 | 38430 | 64000 | 14730 | |
| Tractor Weight(kg) | 5119 | 7500 | 10890 | 19450 | 34000 | 10490 | |
| Jaw Crusher | Type | PE400*600 | PE500*750 | PE600*900 | PE750*1060 | PE900*1200 | PE300*1300 |
| Material Inlet | 400*600 | 500*750 | 600*900 | 750*1060 | 900*1200 | 300*1300 | |
| Adjusting range of discharge hole | 40-100 | 50-100 | 65-180 | 80-180 | 95-225 | 20-90 | |
| Capacity(m3/h) | 10-35 | 25-60 | 30-85 | 70-150 | 100-240 | 10-65 | |
| Vibrating Feeder | Type | GZD8030 | GZD8030 | GZD9638 | GZD1149 | GZD1352 | GZD8030 |
| Capacity of bin | 3 | 4 | 7 | 10 | 10 | 3 | |
| Width of bin | 2200 | 2500 | 3000 | 3000 | 3000 | 2200 | |
| Belt Conveyor Type | B500*6 | B650*7 | B800*8 | B1000*11 | B1200*13 | B800*7 | |
We also supply:
Mobile Impact crusher:
Mobile Cone crusher:
Certification:
