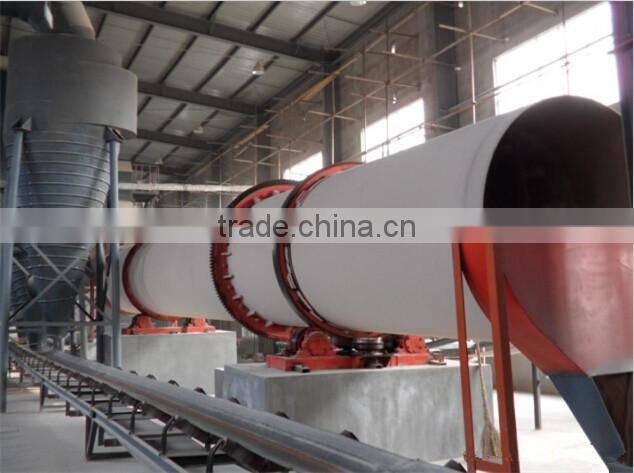

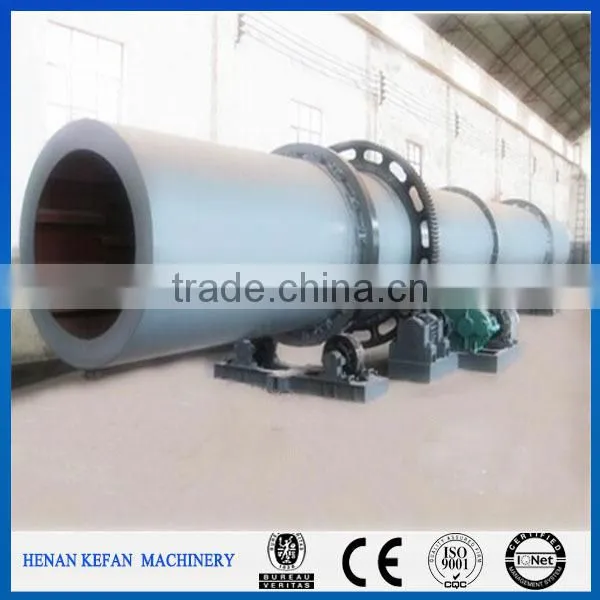

High efficient coal rotary dryer
General Description of high efficient coal rotary dryer:
Rotary Drier is mainly consist of rotary body, raw material feeding plate, driving and supporting device, etc. Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed.
Usage of high efficient coal rotary dryer:
Rotary dryer is used to dry slag, clay, limestone, It is mainly used for cement, chemical, metallurgical, building materials industries. Its advantages are as follows: high dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.
Drier is used for drying materials with a certain humidity or granularityin milling of ores, building materials, metallurgy and chemical industry.Gyro drying machinery has a strong adaptability of materials and it can dry various materials. The operation is very simple and liable. For this reason, it isused widely.
Specifications of high efficient coal rotary dryer:
| Specific-ations(m) | Capacity(t/h) | Main motor | Main gear box | Weight(t) | ||
| Power(kw) | Model | Model | Speed reduction ratio | |||
| ø1.2*10 | 2.5 | 7.5 | Y160M-R3 | ZL50-16-I | ----- | 13.5 |
| ø1.5*12 | 3.3-4.9 | 10 | Y160L-6-B3 | JZQ500-III-2F | ----- | 18.9 |
| ø1.5*15 | 4-6 | 18.5 | Y200L1-6 | JZQ500-III-2F | ----- | 21 |
| ø1.8*12 | 4-6 | 18.5 | Y160L-6 | ZQ50-16II-2 | 16.46 | 22.83 |
| ø2.2*12 | 7-12 | 18.5 | Y200L7-6 | JZQ650-III | 31.5 | 37.6 |
| ø2.2*14 | 7-12 | 22 | Y200L7-6 | JZQ650-III | 31.5 | 40 |
| ø2.2*16 | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 | 45 |
| ø2.4*14 | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 | 51 |
| ø2.4*18 | 10-13 | 37 | Y250M-6 | ZL85-13-I | 27.16 | 54 |
| ø2.4*20 | 10-14 | 37 | Y250N-6 | ZL85-13-I | 27.16 | 54.14 |
| ø3*20 | 25 | 55 | Y250M-4 | ZL100-16-I | 41.52 | 78 |
| ø3*25 | 32-36 | 75 | YR280M-4 | ZL100-16-I | 41.52 |
104.9
|
Our certification:
